+--- Thread: GT2056V (Jeep Liberty Diesel) Turbo on a 617 (/showthread.php?tid=146)
Re: GT2056V (Jeep Liberty Diesel) Turbo on a 617 - ForcedInduction - 11-04-2008
Yes, there is a 2mm restrictor inside the flange that bolts onto the turbo.
Re: GT2056V (Jeep Liberty Diesel) Turbo on a 617 - Simpler=Better - 11-04-2008
Does anyone know the spacing for the oil darin bolts? I'm having a fun time measuring down in there...
Re: GT2056V (Jeep Liberty Diesel) Turbo on a 617 - bgkast - 11-05-2008
ForcedInduction Yes, there is a 2mm restrictor inside the flange that bolts onto the turbo.
On the stock oil feed line, yes. The GT2056V uses a banjo bolt arrangement to connect the oil feed line, and I'm wondering if there is a restrictor in the banjo bolt hole, or if I need to add a restrictor to my oil feed line.
Re: GT2056V (Jeep Liberty Diesel) Turbo on a 617 - ForcedInduction - 11-05-2008
Quote:I'm wondering if there is a restrictor in the banjo bolt holeIt was in the turbo itself on mine.
Re: GT2056V (Jeep Liberty Diesel) Turbo on a 617 - bgkast - 11-05-2008
Quote:It was in the turbo itself on mine.
I just want to confirm the GT2056 has one too.
Did your turbo use a banjo bolt for the oil feed?
Re: GT2056V (Jeep Liberty Diesel) Turbo on a 617 - Simpler=Better - 11-05-2008
My GT2056V appears to have a restrictor on the turbo. Inside the banjo bolt's hole there is a smaller hole that appears to be 1mm-2mm-ish
In other news: Can you just mount the vacuum actuator on the opposite side of the turbo?
Re: GT2056V (Jeep Liberty Diesel) Turbo on a 617 - bgkast - 11-06-2008
SUPER!
Thank you
Re: GT2056V (Jeep Liberty Diesel) Turbo on a 617 - ForcedInduction - 11-06-2008
bgkast Did your turbo use a banjo bolt for the oil feed?Yes. I made a new oil line from the oil filter housing to the turbo using hydraulic hose.
Simpler=Better Can you just mount the vacuum actuator on the opposite side of the turbo?With a little work, yes. That would make it open the vanes with vacuum and close as vacuum decreases, there would be a built-in way to limit boost.
Re: GT2056V (Jeep Liberty Diesel) Turbo on a 617 - ForcedInduction - 12-01-2008
I've got my own Liberty Turbo now. We'll see how they compare.
<!-- m --><a class="postlink" href="http://cgi.ebay.com/ebaymotors/ws/eBayISAPI.dll?ViewItem&item=200280900508">http://cgi.ebay.com/ebaymotors/ws/eBayI ... 0280900508</a><!-- m -->
Re: GT2056V (Jeep Liberty Diesel) Turbo on a 617 - bgkast - 12-03-2008
What a deal! What are you going to run it on?
Re: GT2056V (Jeep Liberty Diesel) Turbo on a 617 - ForcedInduction - 12-04-2008
My engine. When I reclocked the vane ring of my VNT I didn't get it perfectly centered and I think its taking out the bearings (it has a lot more side-side shaft movement than I'd like). I won't have to clock this turbo and as a side benefit I can transfer the actuators over to the Holset.
Re: GT2056V (Jeep Liberty Diesel) Turbo on a 617 - ForcedInduction - 12-16-2008
This turbo is scrap! Its got loads of side play, too much in-out play, the compressor wheel rubs the housing, the actuator bracket is bent and he didn't pack it worth a crap (the post office had to put plastic straps all around the box). :evil:
At least the actuator holds vacuum and doesn't have any dead spots, that alone is worth the $50.
I'll do a tear-down, measure it and post some pictures.
Re: GT2056V (Jeep Liberty Diesel) Turbo on a 617 - ForcedInduction - 12-16-2008
This turbo is tiny even compared to my 2256V, a little too small for my taste.
Compressor
Wheel Inducer: 39.55mm
Wheel Exducer: 56mm (49 Trim)
Housing Inlet: 56mm/2.2"
Housing Outlet: 49.75mm/2"
I forgot a 10mm wrench, I'll get turbine pictures and measurements later.
It would be awesome if the the compressor housing will match my 2256. That would make my tubing more efficient and simple.
Re: GT2056V (Jeep Liberty Diesel) Turbo on a 617 - ForcedInduction - 12-16-2008

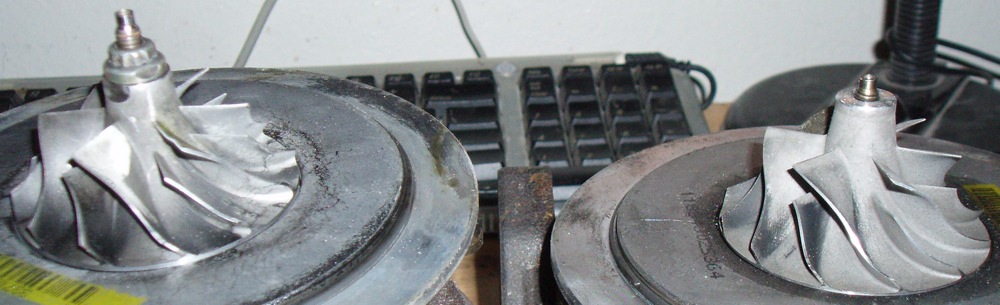

Comparison of the Sprinter (GT2256V) and Liberty (GTA2056V) turbines.
[attachment=1]<!-- ia1 -->Sprinter2256.jpg<!-- ia1 -->[/attachment][attachment=0]<!-- ia0 -->Liberty2056.jpg<!-- ia0 -->[/attachment]
Re: GT2056V (Jeep Liberty Diesel) Turbo on a 617 - ForcedInduction - 12-18-2008
Turbine
Wheel Inducer: 47mm
Wheel Exducer: 42.7mm
The chamber at the outlet of the turbine looks to be nothing more than an expansion chamber. Possibly for muffling.
I can't find measurements for my 2256 turbine.
Re: GT2056V (Jeep Liberty Diesel) Turbo on a 617 - ForcedInduction - 12-18-2008
This turbo is free to anybody willing to cover shipping ($25). Minus the vacuum actuator and compressor housing (I can include the Sprinter housing if I find it fits).
It needs bearings (rebuilt) and the vane ring cleaned.
RE: GT2056V (Jeep Liberty Diesel) Turbo on a 617 - ForcedInduction - 01-15-2009
Compressor
Wheel Inducer: 40.3mm
Wheel Exducer: 56mm (51.8 Trim)
Housing Inlet: 60mm
Housing Outlet: 35mm
Turbine
Wheel Inducer: 49.4mm (est.)
Wheel Exducer: 41.7mm
This means that while the GT2256V and GTA2256V are both 56mm, they are not the same. The 2256 is a 51.8 trim while the 2056 is a 49 trim. That means the 2256 has a "bigger" compressor wheel. It also looks beefier.
Unfortunately, this turbo is bigger junk than the Liberty turbo! Even more in/out play, frozen vanes, turbine housing frozen to the center housing and the compressor wheel nut wasn't even finger tight!

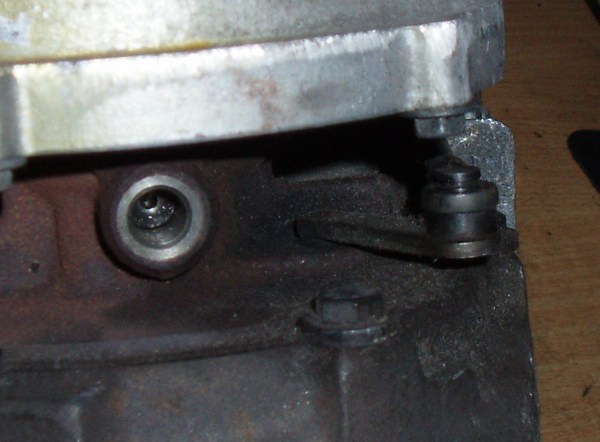

The stroke of the arm is much longer than the vacuum actuated turbo meaning that converting this to a pneumatic actuator would be difficult. You can also see the oil inlet orifice in this picture.
RE: GT2056V (Jeep Liberty Diesel) Turbo on a 617 - ForcedInduction - 02-01-2009
WOW! No wonder the vane lever was stuck on this turbo.

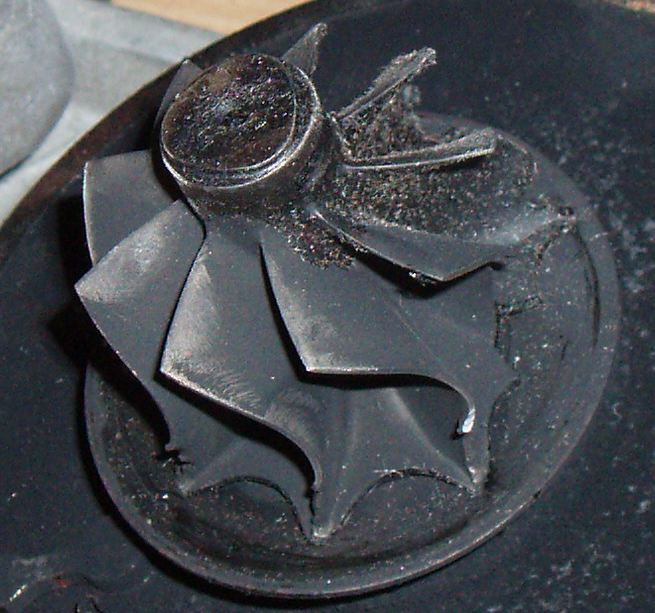

Notice anything unusual about the vanes and turbine?
RE: GT2056V (Jeep Liberty Diesel) Turbo on a 617 - Ian White - 03-16-2009
pretty eaten up there. what do you think happened?
RE: GT2056V (Jeep Liberty Diesel) Turbo on a 617 - ForcedInduction - 03-16-2009
Driver abuse. Heat is the only way to cause that kind of damage.
RE: GT2056V (Jeep Liberty Diesel) Turbo on a 617 - lars - 12-13-2009
(06-06-2008, 10:53 PM)bgkast My 5 psi (I think) actuator arrived today and it works INFINITELY better!!!! Cruise is now 3-4 psi and it hits 11 psi on acceleration almost as fast as I can press the go pedal. Best of all no more exhaust pressure spike!!! The highest exhaust pressure I hit now is 25 psi vs. 50 or so that I was hitting before :? There is a noticeable loss of power with that kind of pressure at the exhaust manifold. :roll:
I have enough power to do a burn out now and even get sideways when I punch it in second around a corner (it was wet out).
Forced- Yes I do have the spring in the vacuum actuator too. The opposing spring in the vacuum pod widens the operating pressure of the pressure actuator: instead of cracking at 5 psi and being fully actuated at 7 psi it cracks as 5 psi and is fully actuated around 11 psi. That was one of the big problems with the too high pressure actuator and helper spring arrangement, it cracked at 7 psi but did not fully actuate until 16 psi or so, by then there was so much pressure in the exhaust that it had a hard time pushing the vanes open.
Pushing life in an old thread.
I understand you use the stock vac-clock as cruiseactuator and bought a WG actuator from Forged motorsport, bgkast. What model from their productline did you buy? I am looking to buy a similar one.
Is this setup still a success?
RE: GT2056V (Jeep Liberty Diesel) Turbo on a 617 - lars - 01-05-2010
BGkast!
How is this still workin?
