Om605 Chip Swap Help
PaddyEnglish86 Offline
Naturally-aspirated
*


Posts: 12
Joined: Mar 2016
Location: UK
#1
Om605 Chip Swap Help
Can someone run me through the chip swap process please. I've got the chips and sockets already. I now want to familiarise myself with the process before I pull the ECU out. Thanks
12-13-2019, 09:06 AM
Find Reply
PaddyEnglish86 Offline
Naturally-aspirated
*


Posts: 12
Joined: Mar 2016
Location: UK
#2
RE: Om605 Chip Swap Help
Surely someone has done this before?
12-14-2019, 11:00 AM
Find Reply
PaddyEnglish86 Offline
Naturally-aspirated
*


Posts: 12
Joined: Mar 2016
Location: UK
#3
RE: Om605 Chip Swap Help
I just need to know which way round they go. Nothing else. One has one dot, the other has two dots. Thanks
12-15-2019, 06:02 PM
Find Reply
AlanMcR Offline
mind - blown
****


Posts: 304
Joined: May 2009
Location: USA
#4
RE: Om605 Chip Swap Help
You'll need to find out from whomever burned the chips.

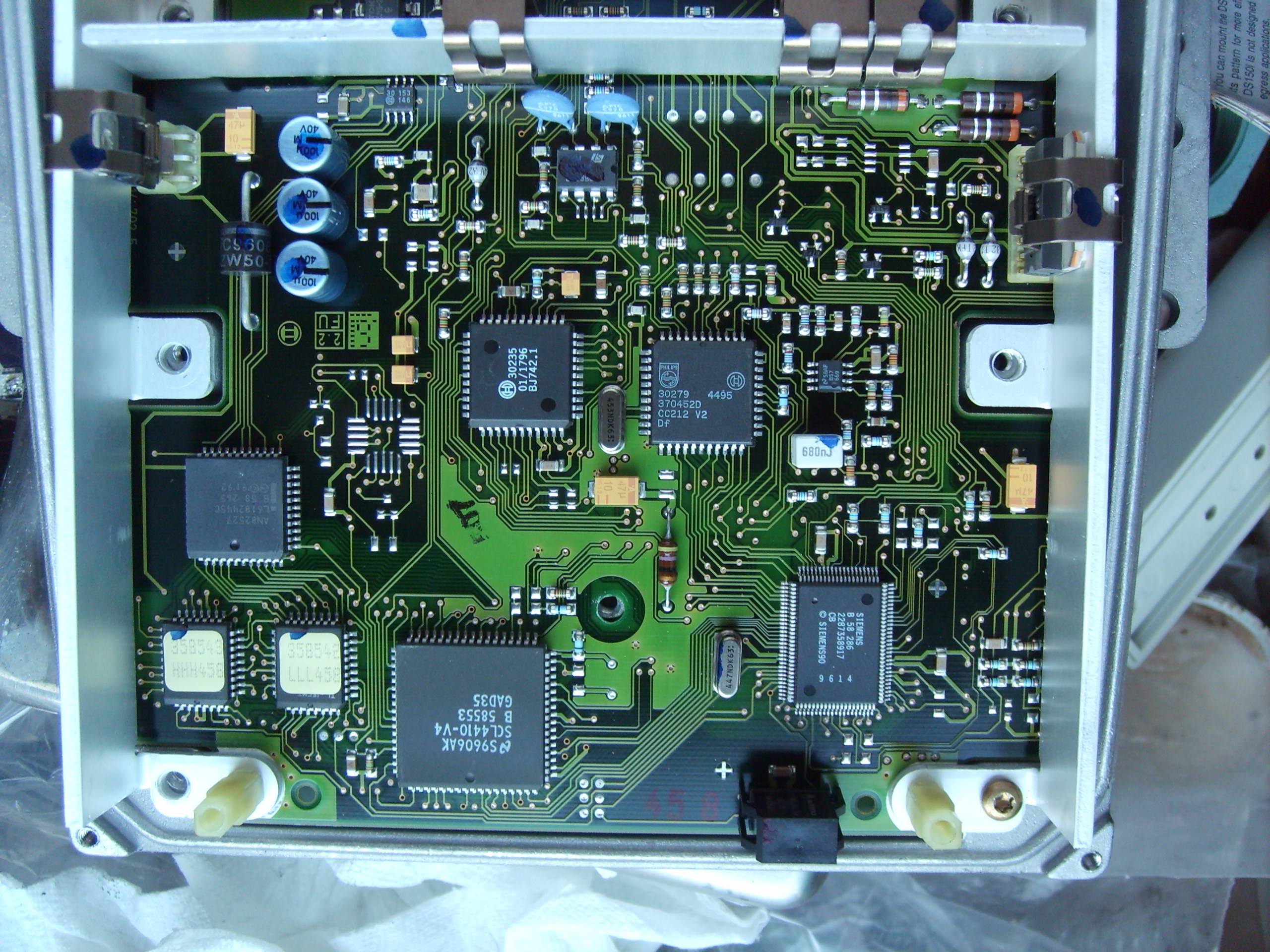

I think this is the same basic circuit board as the OM606.  There the chips are labeled HHH(some number) and LLL(some number).  The HHH chip is closer to the corner of the board.  Both chips have their indicator bevel pointed at the black standing module (atmospheric pressure sensor).  Easier in a picture ...


Attached Files Image(s)

(This post was last modified: 12-15-2019, 06:49 PM by AlanMcR.)
12-15-2019, 06:43 PM
