OM 606 Piston Oil Cooling Nozzle
zeeman Offline
Holset
****


Posts: 333
Joined: Jan 2012
Location: Idaho
#1
OM 606 Piston Oil Cooling Nozzle
Need to bore a 606 block and need to remove the piston oil cooling nozzle. Anyone know how to remove these and reinstall. They look like they are pressed in unlike the OM 617 ones that are bolted in. Anyone?
12-07-2018, 10:52 AM
Find Reply
jav1 Offline
GTA2056V
**


Posts: 87
Joined: Jan 2016
Location: usa
#2
RE: OM 606 Piston Oil Cooling Nozzle
in the workshop manual for the 606.964 it shows them using 3 special tools. For removal they use impact extractor (602 589 00 33 00) -which is a slide hammer & removal claw (604-589 00 34 00). To insert they use insertion drift (604 589 00 15 00). They appear to be press fit.
12-07-2018, 01:03 PM
Find Reply
barrote Offline
Superturbo
*****


Posts: 1,544
Joined: Dec 2011
Location: Portugal
#3
RE: OM 606 Piston Oil Cooling Nozzle
Exactly
FD,
Powered by tractor fuel
12-07-2018, 01:27 PM
Find Reply
German Diesel Offline
Naturally-aspirated
*


Posts: 15
Joined: Aug 2018
Location: Germany
#4
RE: OM 606 Piston Oil Cooling Nozzle
Hi, i have a few great pictures, but i dont can load it up here.
Can i send you the Pictures with an E-Mail, and you load it up?

Steffen
(This post was last modified: 12-09-2018, 03:23 AM by German Diesel.)
12-09-2018, 03:21 AM
Find Reply
zeeman Offline
Holset
****


Posts: 333
Joined: Jan 2012
Location: Idaho
#5
RE: OM 606 Piston Oil Cooling Nozzle
(12-09-2018, 03:21 AM)German Diesel Wrote: Hi, i have a few great pictures, but i dont can load it up here.
Can i send you the Pictures with an E-Mail, and you load it up?

Steffen

Yes please send to northwestdieseloffroad@gmail.com     Thanks    Zeeman
12-09-2018, 12:47 PM
Find Reply
German Diesel Offline
Naturally-aspirated
*


Posts: 15
Joined: Aug 2018
Location: Germany
#6
RE: OM 606 Piston Oil Cooling Nozzle
You have the mails
12-12-2018, 01:30 PM
Find Reply
zeeman Offline
Holset
****


Posts: 333
Joined: Jan 2012
Location: Idaho
#7
RE: OM 606 Piston Oil Cooling Nozzle
(12-12-2018, 01:30 PM)German Diesel Wrote: You have the mails

I did receive them. Thanks so much. You have been a great help. I wish someone made that tool. I will have to fabricate one.

Zeeman
12-13-2018, 03:19 AM
Find Reply
German Diesel Offline
Naturally-aspirated
*


Posts: 15
Joined: Aug 2018
Location: Germany
#8
RE: OM 606 Piston Oil Cooling Nozzle
Hi,
Thanks  Smile

Please load the pictures up  Rolleyes

Steffen
12-14-2018, 01:03 AM
Find Reply
German Diesel Offline
Naturally-aspirated
*


Posts: 15
Joined: Aug 2018
Location: Germany
#9
RE: OM 606 Piston Oil Cooling Nozzle
Hello, Please upload the pictures

Steffen
12-22-2018, 11:26 AM
Find Reply
German Diesel Offline
Naturally-aspirated
*


Posts: 15
Joined: Aug 2018
Location: Germany
#10
RE: OM 606 Piston Oil Cooling Nozzle
Hi,
so That anyone get the pictures, i have find a good way to load the pictures up (:

[Image: 34691576az.jpg]

[Image: 34691579fp.jpg]

[Image: 34691580jr.jpg]

[Image: 34691583yj.jpg]

[Image: 34691584bp.jpg]

[Image: 34691586ef.jpg]

[Image: 34691587di.jpg]

[Image: 34691589vi.jpg]

[Image: 34691591ri.jpg]



Steffen
12-28-2018, 03:14 AM
Find Reply
zeeman Offline
Holset
****


Posts: 333
Joined: Jan 2012
Location: Idaho
#11
RE: OM 606 Piston Oil Cooling Nozzle

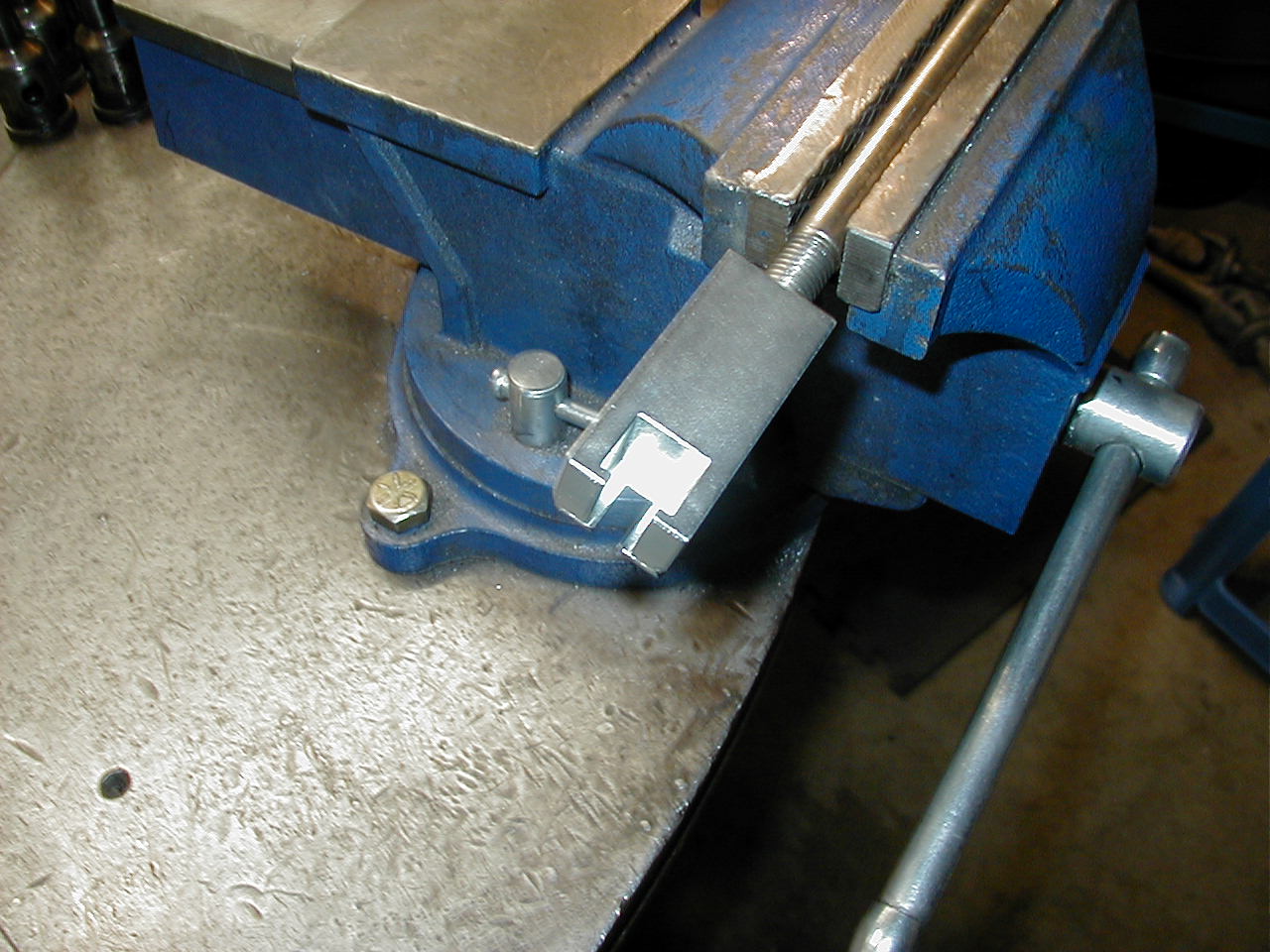

The pictures were very helpful. I was able to get the Mercedes factory tool, thanks to JAV 1 for the part numbers.


Attached Files Image(s)

01-12-2019, 06:41 PM
