Toyota 4-Runner OM 606

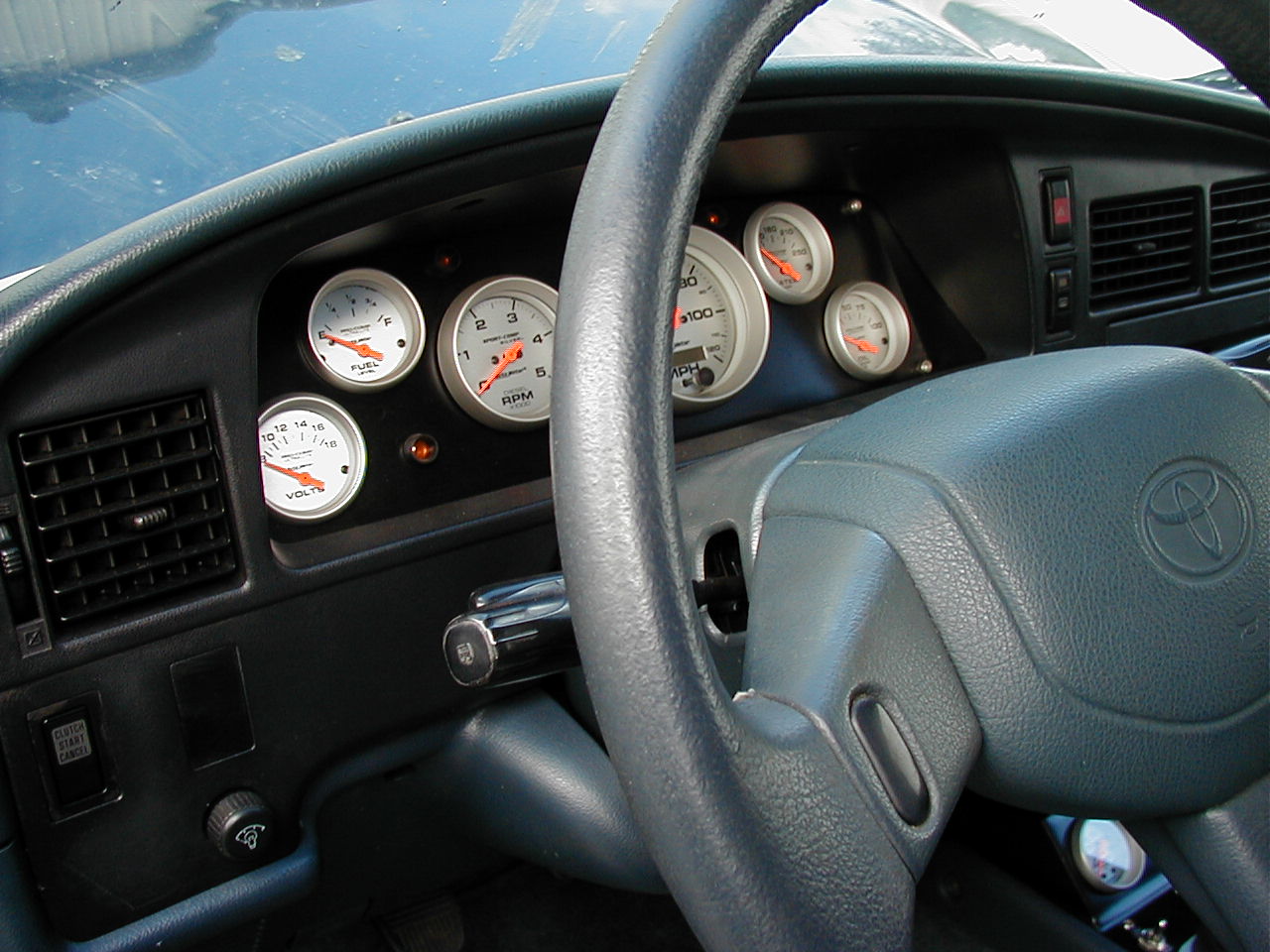

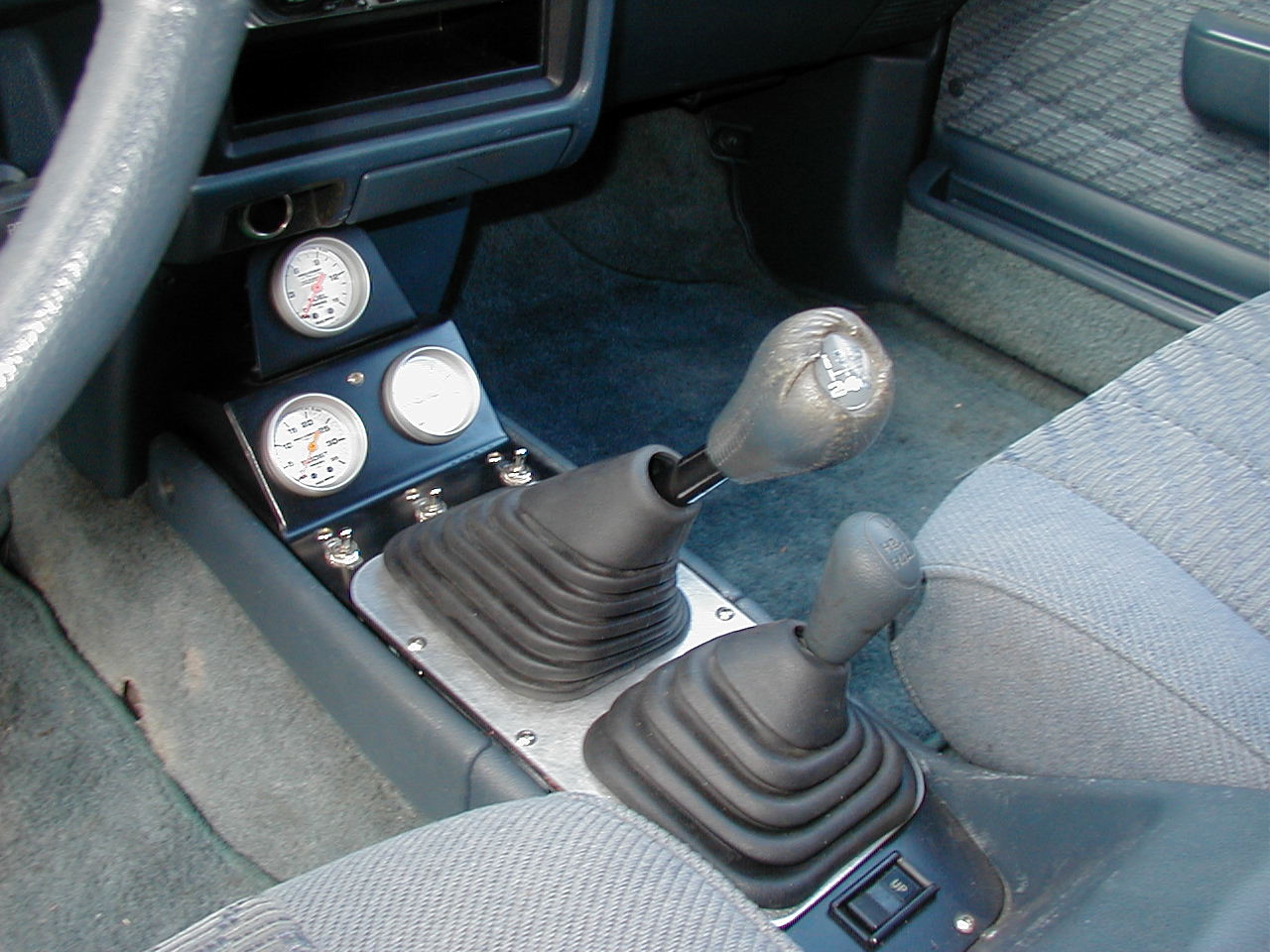

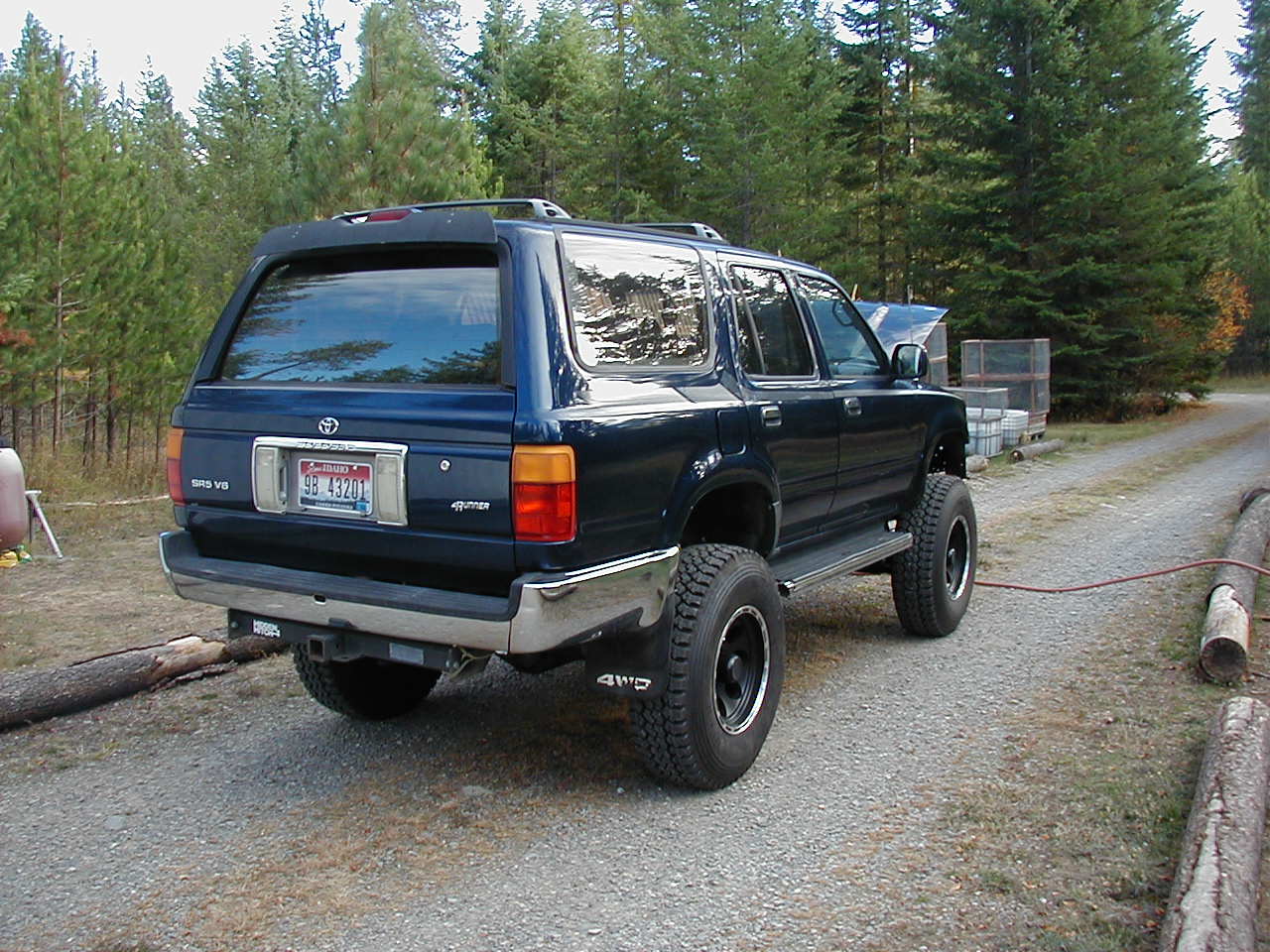

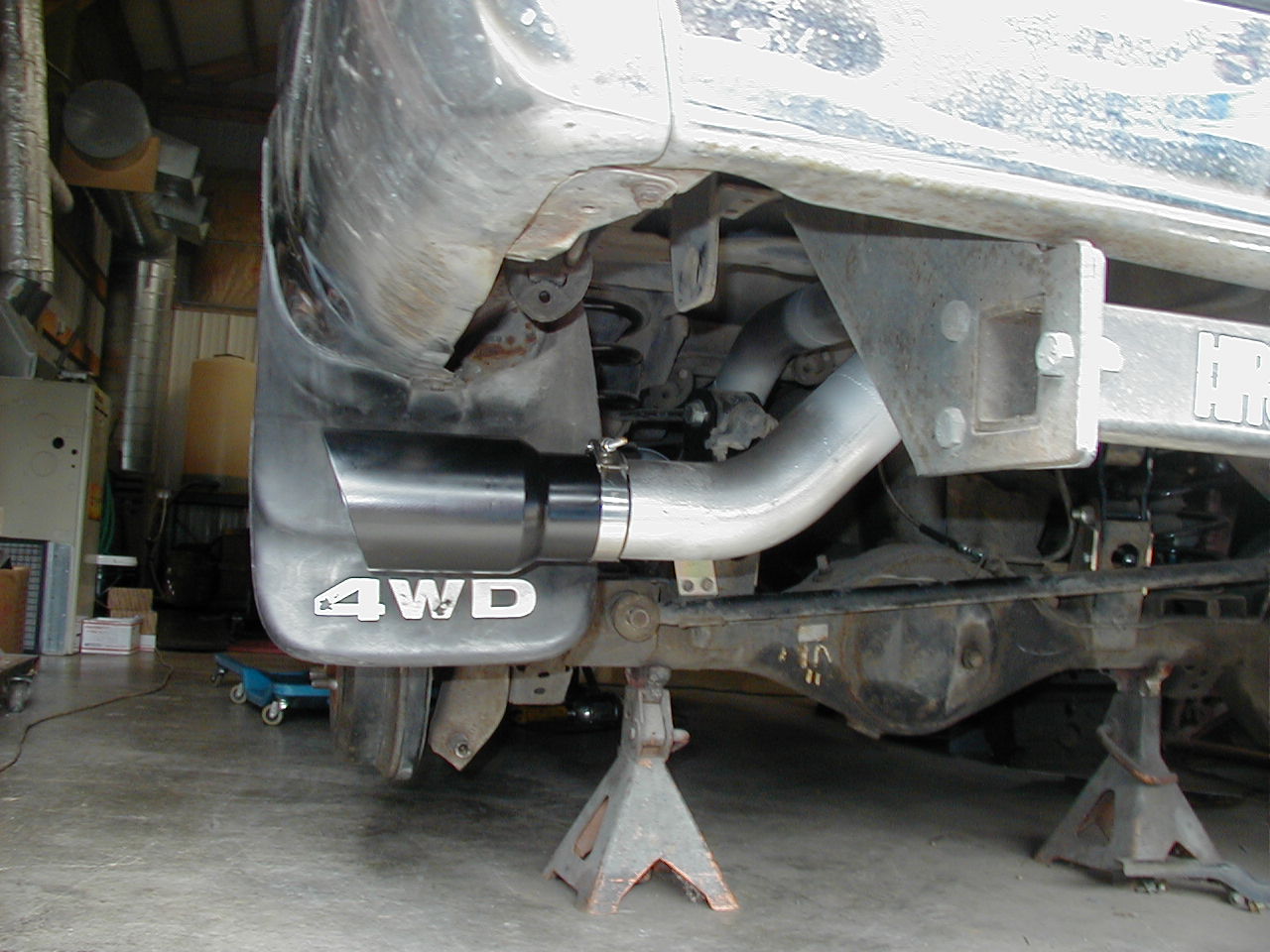

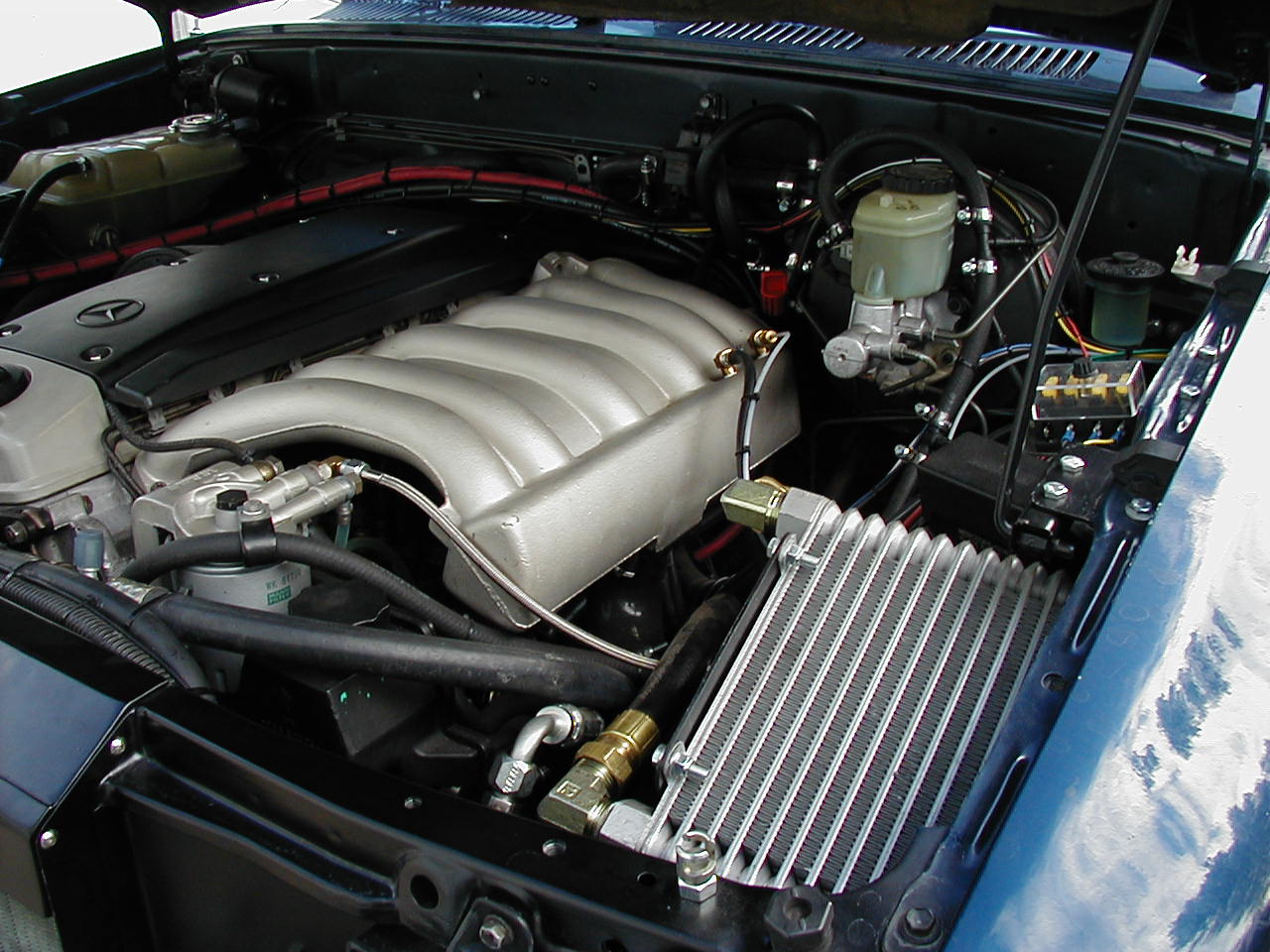

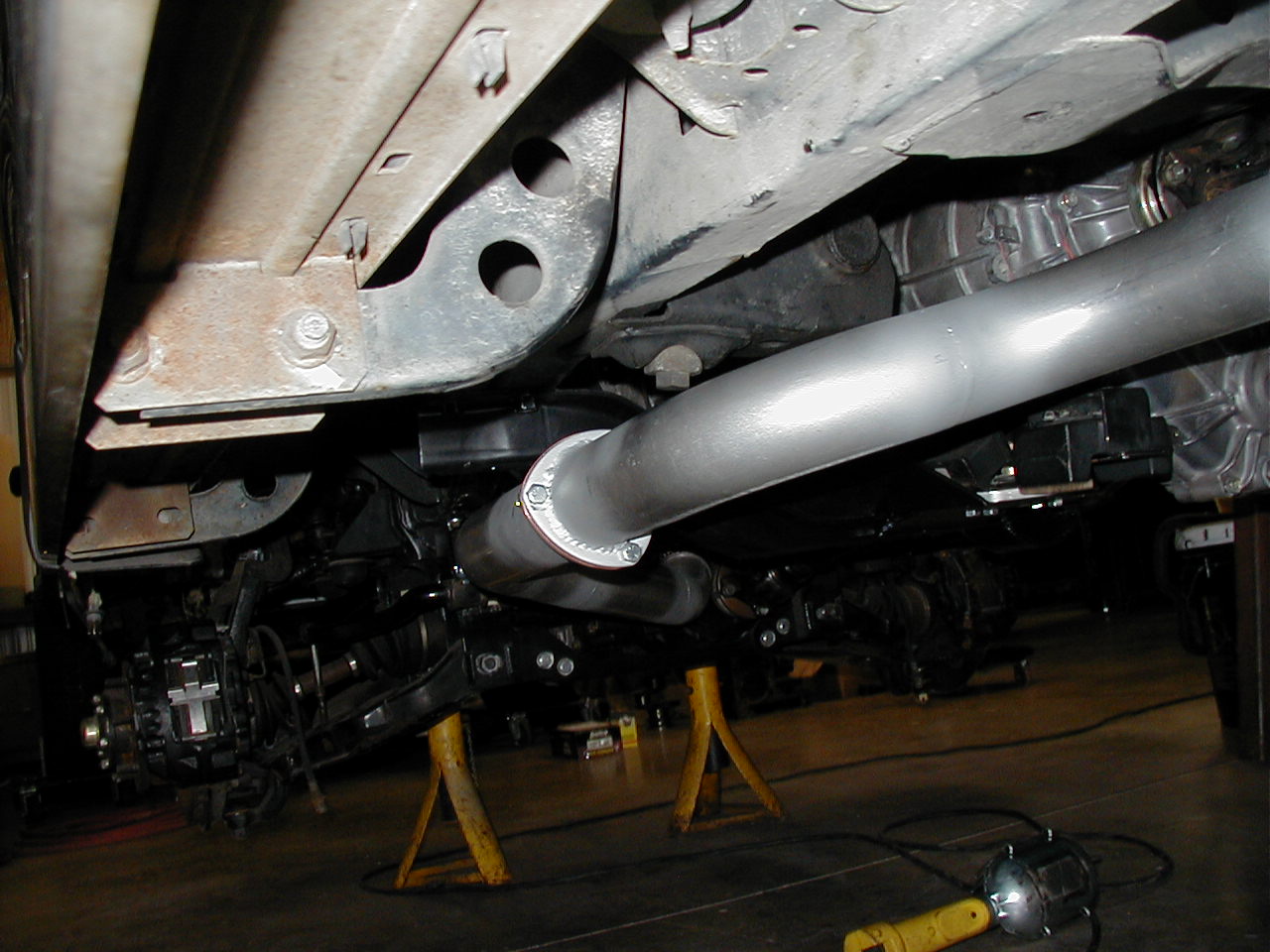

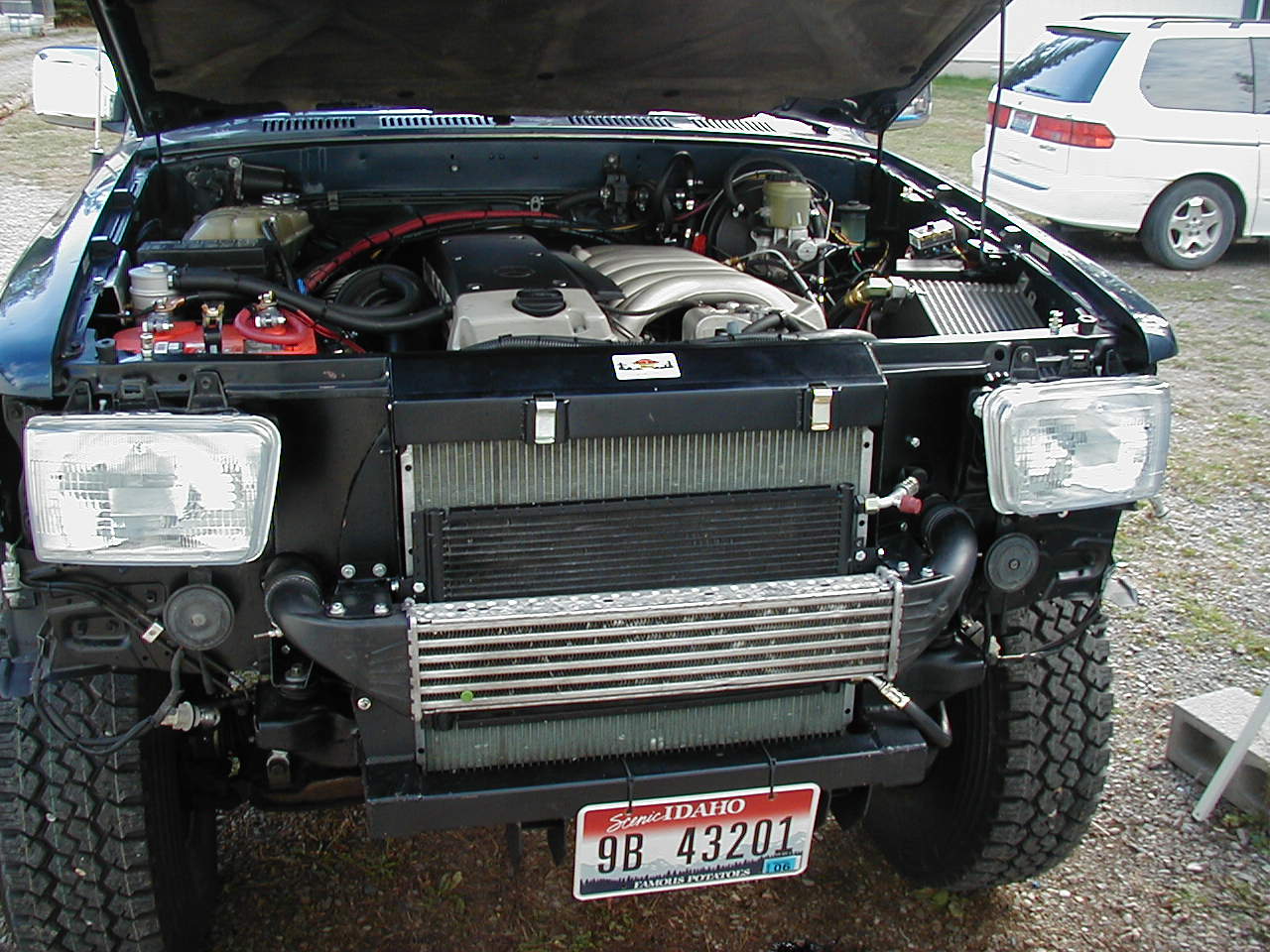

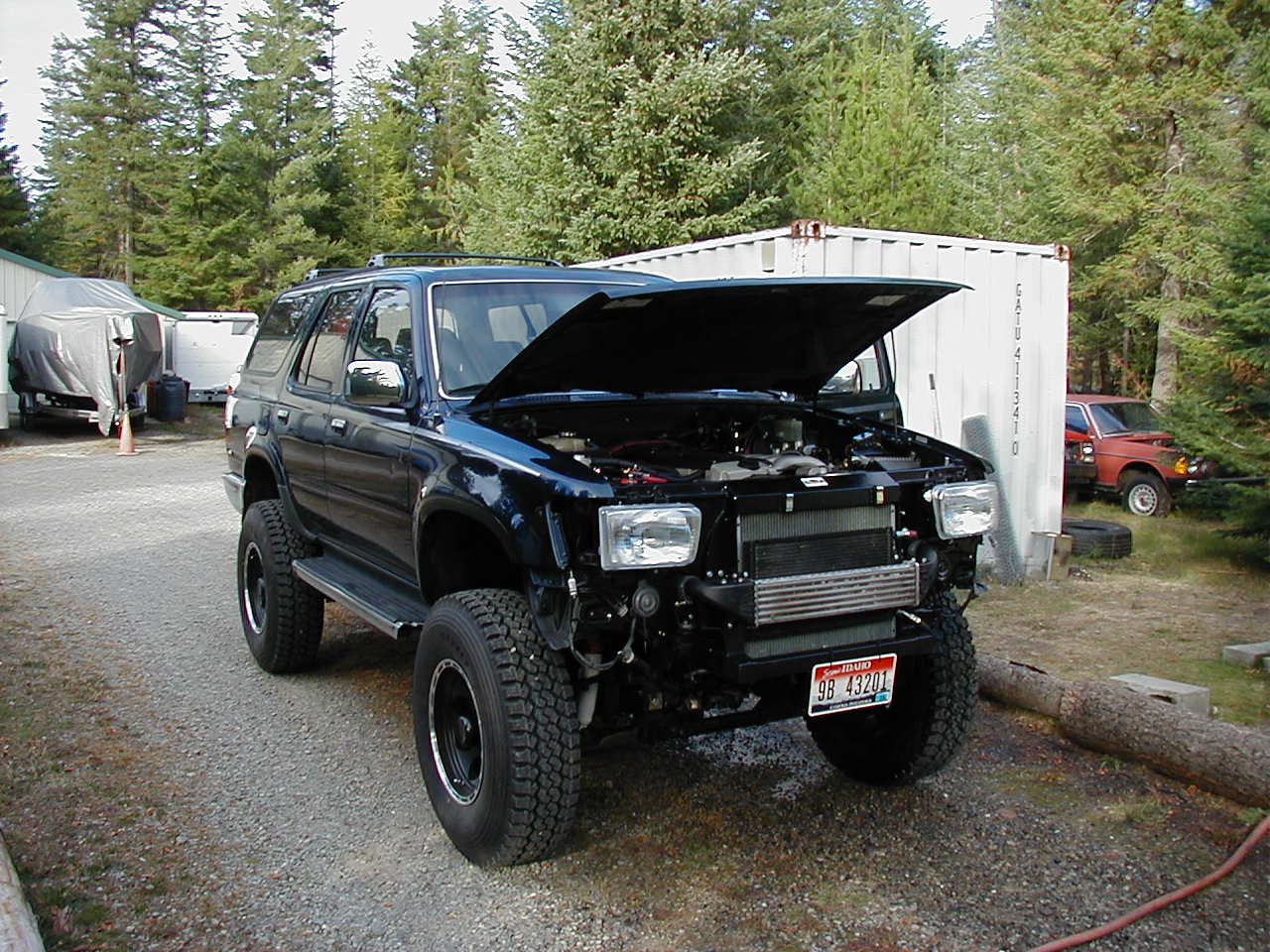

Just finished this for a customer. 94  4-runner with a OM 606. Adapted to the Toyota 5 spd. with my adapter to a Dakota bellhousing. Modified core support and custom fan shroud. Engine and transmission were moved back 6 inches. Autometer gauges installed in dash bezel. Four inch lift, 33 inches tires.

Om 603 injection pump.


Attached Files Image(s)

11-14-2018, 10:53 PM
Find Reply
jav1 Offline
GTA2056V
**


Posts: 89
Joined: Jan 2016
Location: usa
#2
RE: Toyota 4-Runner OM 606
nice looking install. Can I ask what you did with the PCV system? Are you using 603 pump or DSL1?
11-15-2018, 08:15 AM
Find Reply
zeeman Offline
Holset
****


Posts: 338
Joined: Jan 2012
Location: Idaho
#3
RE: Toyota 4-Runner OM 606
(11-15-2018, 08:15 AM)jav1 Wrote: nice looking install.  Can I ask what you did with the PCV system?  Are you using 603 pump or DSL1?

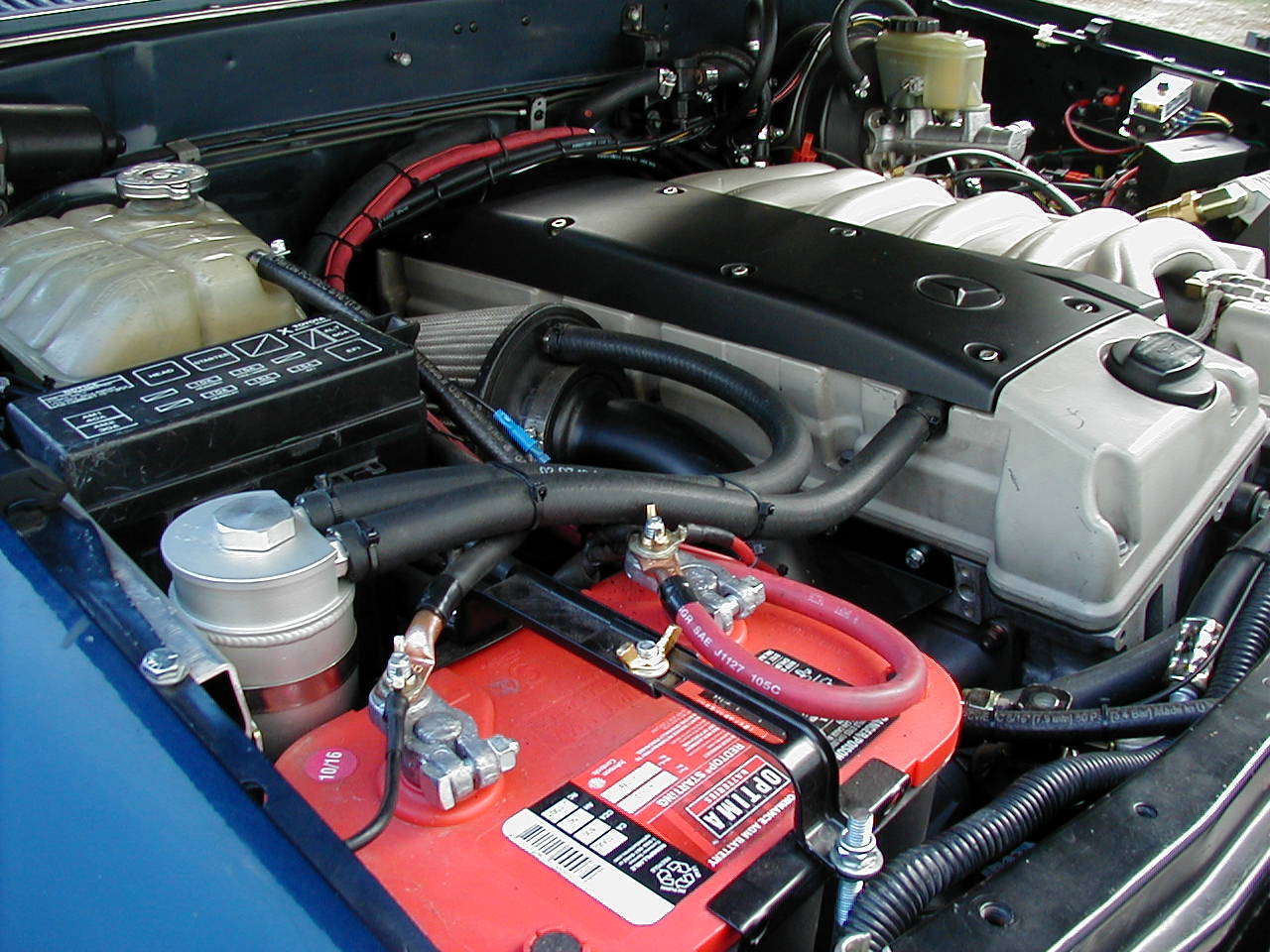

I used a 603 pump with the 6mm elements installed. I have a catch can for the PVC, it pulls vacuum from the air cleaner and has a sight glass tube and a drain.
11-15-2018, 12:54 PM
Find Reply
Tobulus Offline
GT2256V
***


Posts: 133
Joined: Jun 2015
Location: Germany
#4
RE: Toyota 4-Runner OM 606
Very nice installation!
11-16-2018, 02:38 AM
Find Reply
jav1 Offline
GTA2056V
**


Posts: 89
Joined: Jan 2016
Location: usa
#5
RE: Toyota 4-Runner OM 606
What are the benefits of the catch can versus the just the hose to the intake? Is that an off the shelf part or your design?
11-16-2018, 10:35 AM
Find Reply
zeeman Offline
Holset
****


Posts: 338
Joined: Jan 2012
Location: Idaho
#6
RE: Toyota 4-Runner OM 606
(11-16-2018, 10:35 AM)jav1 Wrote: What are the benefits of the catch can versus the just the hose to the intake?   Is that an off the shelf part or your design?

Usually the PVC hose goes to the air box and the vapors settle to the bottom and drain. When using an after market air cleaner you have to create the same thing by using the air cleaner to pull the vapors into the catch can were they settle and drain also.

This was an after market one from E-bay, there are different styles. You want one with a baffle inside to trap the oil instead of it plugging up the air filter. They usually have a site tube so you can see when it needs to be drained and cleaned.
11-16-2018, 10:59 AM
Find Reply
atypicalguy Offline
Holset
****


Posts: 538
Joined: Oct 2013
Location: LA
#7
RE: Toyota 4-Runner OM 606
Should keep the intercooler from filling up with oil also.
11-29-2018, 09:35 AM
Find Reply
Pinchers Offline
Naturally-aspirated
*


Posts: 23
Joined: Jul 2012
Location: Scotland
#8
RE: Toyota 4-Runner OM 606
Any more photos showing the buildup of this one?
06-04-2019, 01:38 PM
Find Reply
Anjay1 Offline
K26-2
*


Posts: 29
Joined: Nov 2015
Location: Canada, BC
#9
RE: Toyota 4-Runner OM 606
What turbo is on it?
06-05-2019, 11:22 AM
Find Reply
zeeman Offline
Holset
****


Posts: 338
Joined: Jan 2012
Location: Idaho
#10
RE: Toyota 4-Runner OM 606
(06-05-2019, 11:22 AM)Anjay1 Wrote: What turbo is on it?

It is the stock KKK turbo.
06-14-2019, 09:56 AM
Find Reply
zeeman Offline
Holset
****


Posts: 338
Joined: Jan 2012
Location: Idaho
#11
RE: Toyota 4-Runner OM 606
(06-04-2019, 01:38 PM)Pinchers Wrote: Any more photos showing the buildup of this one?

More pictures on my web site, www.northwestdieseloffroad.com. I have a lot more pictures if you have something specific you want to view.
06-14-2019, 10:00 AM
Find Reply
