Im wondering if anyone has a cad file for an om603 exhaust flange. Also looking for pictures and ideas for a twin turbo setup. Im thinking about attempting a small to large, kinda like BMW's new diesel 5 series.
mbenzo300td
11-03-2009, 06:58 PM #1

Im wondering if anyone has a cad file for an om603 exhaust flange. Also looking for pictures and ideas for a twin turbo setup. Im thinking about attempting a small to large, kinda like BMW's new diesel 5 series.

Reply
Reply
ForcedInduction
Find
Banned

3,628
11-03-2009, 11:29 PM #2
Reply
Reply

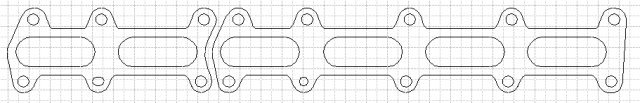

Only DWG stuff I have is a dimensional scan of a Detroit 6V-92TA.

Edit: I do have 606 ports.
This post was last modified: 11-03-2009, 11:31 PM by ForcedInduction.
Attached Files
Image(s)

ForcedInduction
11-03-2009, 11:29 PM #2

Only DWG stuff I have is a dimensional scan of a Detroit 6V-92TA.

Edit: I do have 606 ports.

Attached Files
Image(s)


Reply
Reply
mbenzo300td
Find
TA 0301

66
11-04-2009, 03:32 PM #3
Reply
Reply
I will try CAD one up for the 603 guys.
mbenzo300td
11-04-2009, 03:32 PM #3

I will try CAD one up for the 603 guys.

Reply
Reply
winmutt
Website Find
bitbanger

3,468
11-04-2009, 04:50 PM #4
Reply
Reply
Check with Kiwi Bacon or E300DT One of them has it.
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
winmutt
11-04-2009, 04:50 PM #4

Check with Kiwi Bacon or E300DT One of them has it.

1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42

Reply
Reply
HoleshotHolset
Find
Holset

379
11-05-2009, 11:47 AM #5
Reply
Reply
(11-03-2009, 11:29 PM)ForcedInduction Edit: I do have 606 ports.

Do you have that file posted somewhere?
If not - would you mind dropping me an email?

Thanks,

Matt
'07 W211 OM642
'95 W124.131/722.435, 211k - daily driver/Superturbo project - OM606.962 with "M" pump...under construction! (build thread here)
'99 W210.025 - gone, but not forgotten
'94 Dodge/Cummins - gone, but not forgotten
HoleshotHolset
11-05-2009, 11:47 AM #5

(11-03-2009, 11:29 PM)ForcedInduction Edit: I do have 606 ports.

Do you have that file posted somewhere?
If not - would you mind dropping me an email?

Thanks,

Matt

'07 W211 OM642
'95 W124.131/722.435, 211k - daily driver/Superturbo project - OM606.962 with "M" pump...under construction! (build thread here)
'99 W210.025 - gone, but not forgotten
'94 Dodge/Cummins - gone, but not forgotten

Reply
Reply
ForcedInduction
Find
Banned

3,628
11-05-2009, 01:17 PM #6
Reply
Reply
I just have that image.
ForcedInduction
11-05-2009, 01:17 PM #6

I just have that image.

Reply
Reply
HoleshotHolset
Find
Holset

379
11-05-2009, 02:01 PM #7
Reply
Reply
(11-05-2009, 01:17 PM)ForcedInduction I just have that image.

OK - it's a start! Smile

Thanks,

Matt
'07 W211 OM642
'95 W124.131/722.435, 211k - daily driver/Superturbo project - OM606.962 with "M" pump...under construction! (build thread here)
'99 W210.025 - gone, but not forgotten
'94 Dodge/Cummins - gone, but not forgotten
HoleshotHolset
11-05-2009, 02:01 PM #7

(11-05-2009, 01:17 PM)ForcedInduction I just have that image.

OK - it's a start! Smile

Thanks,

Matt

'07 W211 OM642
'95 W124.131/722.435, 211k - daily driver/Superturbo project - OM606.962 with "M" pump...under construction! (build thread here)
'99 W210.025 - gone, but not forgotten
'94 Dodge/Cummins - gone, but not forgotten

Reply
Reply
E300TSC
Find
Turbo-Supercharged

321
11-05-2009, 02:57 PM #8
Reply
Reply
I made the 606 one. The one pictured is the turbo version with the funky 4+2 design. It's just a screen cap from the CAD program. I also have the 3+3 which is what I'm using on my build up.
E300TSC
11-05-2009, 02:57 PM #8

I made the 606 one. The one pictured is the turbo version with the funky 4+2 design. It's just a screen cap from the CAD program. I also have the 3+3 which is what I'm using on my build up.

Reply
Reply
Kiwibacon
Find
GT2256V

154
11-05-2009, 05:05 PM #9
Reply
Reply
(11-04-2009, 04:50 PM)winmutt Check with Kiwi Bacon or E300DT One of them has it.

Not me, I have CAD, but no merc.Angel
Kiwibacon
11-05-2009, 05:05 PM #9

(11-04-2009, 04:50 PM)winmutt Check with Kiwi Bacon or E300DT One of them has it.

Not me, I have CAD, but no merc.Angel
