simple oil pressure tap on my w210
simple oil pressure tap on my w210
02-24-2016, 07:38 AM
#1
This post was last modified: 02-24-2016, 07:40 AM by 50harleyrider.
50harleyrider
02-24-2016, 07:38 AM #1Where would be the easiest location to connect a mechanical oil pressure gage to my OM606.962? Also what would be the ideal warm pressures at idle and 2500 RPM? I'm running 5w40 Rotella T6 in it now.
02-25-2016, 02:10 PM
#2
(02-24-2016, 07:38 AM)50harleyrider Where would be the easiest location to connect a mechanical oil pressure gage to my OM606.962? Also what would be the ideal warm pressures at idle and 2500 RPM? I'm running 5w40 Rotella T6 in it now.

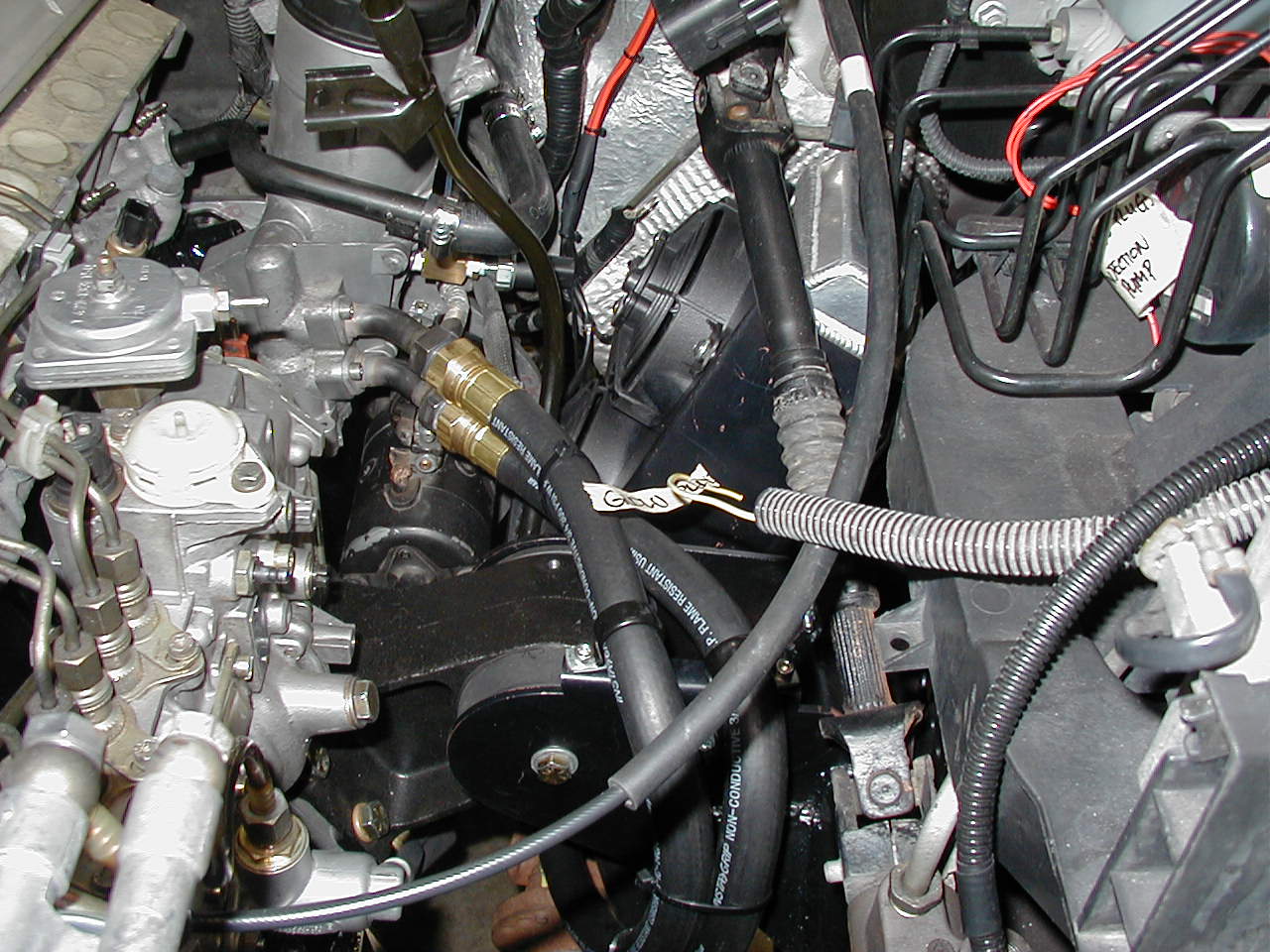

I tapped one of the plugs in the oil filter housing to 1/4 pipe worked fine. Oil pressure on a OM 606 I just put into a 2007 Jeep JK, warm at idle 20 psi 40 at 2500.
Attached Files
Image(s)(02-24-2016, 07:38 AM)50harleyrider Where would be the easiest location to connect a mechanical oil pressure gage to my OM606.962? Also what would be the ideal warm pressures at idle and 2500 RPM? I'm running 5w40 Rotella T6 in it now.
I tapped one of the plugs in the oil filter housing to 1/4 pipe worked fine. Oil pressure on a OM 606 I just put into a 2007 Jeep JK, warm at idle 20 psi 40 at 2500.
Attached Files
Image(s)
02-25-2016, 02:39 PM
#3
50harleyrider
02-25-2016, 02:39 PM #3Thanks Zeeman. I need a lesson in posting photos directly on the forum. Do I see a spot of ketchup on your IP? You did eat off it, right? Awesome!
02-25-2016, 04:56 PM
#4
(02-25-2016, 02:39 PM)50harleyrider Thanks Zeeman. I need a lesson in posting photos directly on the forum. Do I see a spot of ketchup on your IP? You did eat off it, right? Awesome!
I am no computer expert either, you don't know the half of it on this conversion I did. I worked 4 months straight on this conversion for a customer, and he didn't appreciate any of it.
(02-25-2016, 02:39 PM)50harleyrider Thanks Zeeman. I need a lesson in posting photos directly on the forum. Do I see a spot of ketchup on your IP? You did eat off it, right? Awesome!
I am no computer expert either, you don't know the half of it on this conversion I did. I worked 4 months straight on this conversion for a customer, and he didn't appreciate any of it.
