Baby Holset Turbo Conversion build thread
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#1
Baby Holset Turbo Conversion build thread
Hello to all

Been delaying this project for a bit, and I've now started, better make a thread.

To summarise, I bought a 1978 300D a couple of years back. It was 4 speed NA, with a 1980 (dunno why) 617.912. About a year ago we swapped a 617.952 engine with a 5 speed 711.113 from a T1 van into it. Trouble is it burns oil like no tomorrow  Dodgy - probably just a seal gone in the turbo, but I've got better plans for that engine...

So, I'm going to swap the .912 back in. Marry it with the turbo exhaust manifold from the other engine, and attach a Holset HE200WG to it (thanks to Alcaid!). Idea being reasonable flow for a NA>turbo conversion. Rather small on the hot side helping to spool quick, and probably preventing me from blowing up the NA engine due to choking at high RPM Tongue Still, this turbo made 186hp on a 1.6 IDI VW.

I bought a cheap water/air intercooler on ebay which turned out to be enormous...going to use it with a radiator off a Renault.

With that is a 7.5mm M pump. It's a bit OTT for a formerly NA engine but it'll get swapped onto the .952 eventually. Looking at feeding it with a Bosch 044 pump (hate electrical things on an all mechanical diesel so will have to "work on that"  Angel ).
Seeing that I will have an excess of fuel, I thought I be best to install piston oil squirters too. Also looking at water injection to help keep things cool.

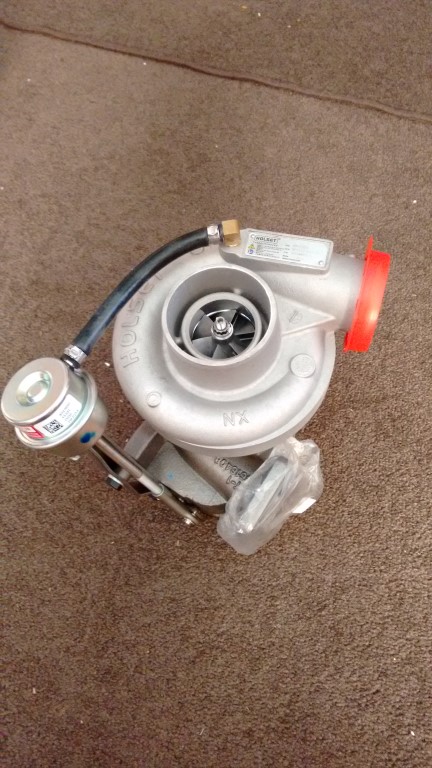

Zee turbo:

[Image: a45c0bcd-7780-4530-91d5-0ee48b20833f.jpg]

What it's to be mated with: (pardon the messy garage)
[Image: 2fbab1a7-0663-484b-bca6-6647ecc81609.jpg]

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





11-07-2015, 01:55 AM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#2
RE: Baby Holset Turbo Conversion build thread
Almost forgot about this thread...

Been waiting on parts, the most important ones have arrived

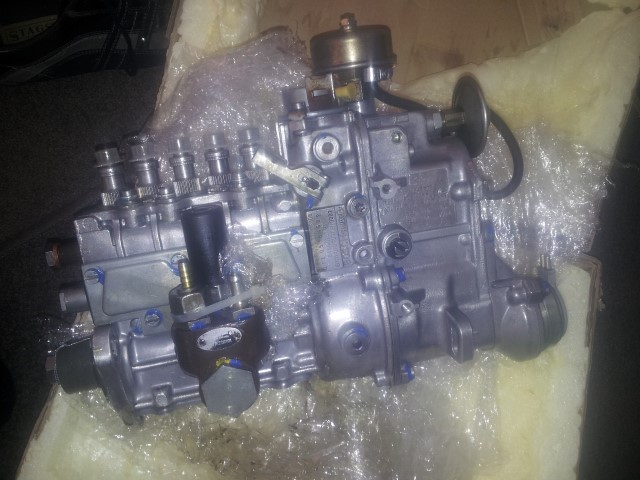

Barrote built me a one of a kind 7.5mm element M pump with a governor from a 60x series with fancy bits, factory ALDA and vacuum actuated fast idle etc. Fricken awesome!

Bought a couple of 044 pumps (one as a spare) to boost the stock lift pump when I hoof it.  A Bosch electric water pump for the A/W intercooler. Also a T25 to T3 adaptor, cheapest one I could find on eBay, should've bought a cast one - this one is warped from the welding, need to get the mounting surfaces ground true Sad

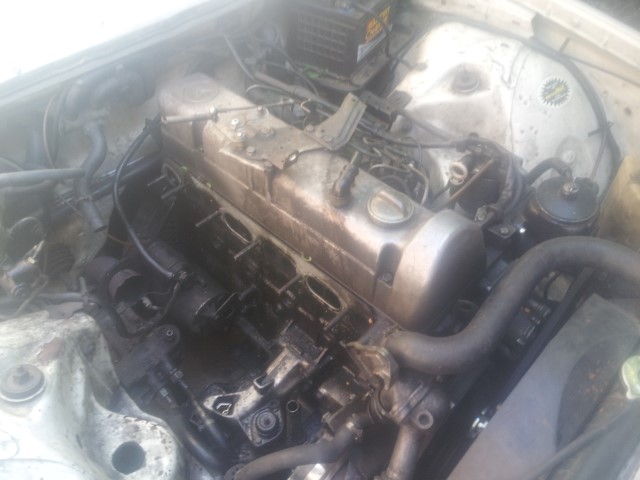

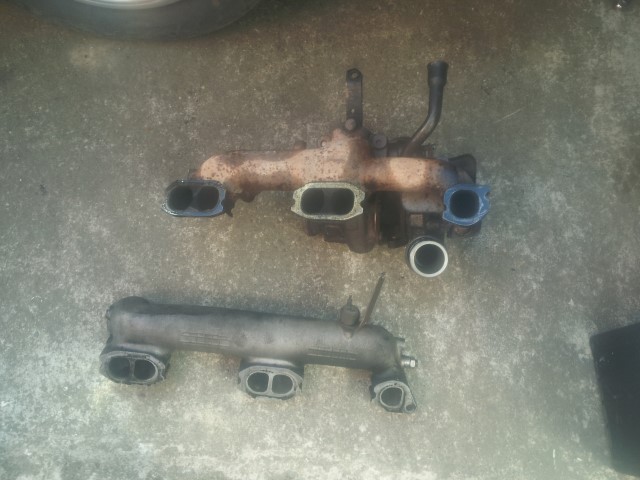

As for the car itself, I've taken the manifolds + turbo off the .952 so I can mock up where everything goes. Also started it up briefly (turbo oil supply blocked off!) and cylinders 2 & 4 blow copious smoke...just as well I'm swapping engines...



1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





12-07-2015, 03:13 AM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#3
RE: Baby Holset Turbo Conversion build thread
Not been up to much on this, been distracted by other projects...

Went to a engine workshop yesterday, too see about installing oil squirters.

I was thinking they could somehow leave the crank etc in and still get the drill in the right places. Oh no....got to take the crank out, pistons + rods out, then of course the head has to come off to reinstall the pistons, and the oil galleries need flushing out (thought maybe a clever vacuum cleaner adaptor might do that) but of course they don't want me coming back saying my engine is ruined because some swarf ended up in a oil channel and now my engine is an anchor. Going to those lengths I may as well rebuild it while I'm at it!

So anyway I'm not going to bother with the squirters. Just going with the water injection and EGT monitoring. And boost to keep things lean, provided it doesn't choke things up with the small turbine.....

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





(This post was last modified: 01-06-2016, 06:38 PM by NZScott.)
01-06-2016, 06:37 PM
Find Reply
MFSuper90 Offline
Budget Builder
*****


Posts: 1,532
Joined: May 2010
Location: MOV, Ohio
#4
RE: Baby Holset Turbo Conversion build thread
It'll be fine! And if not, better reason to do a .95x Wink
'82 300D -3" straight pipe, ALDA deleted, 3in1 glowshift gauge, HX30, egr-less manifold, A/W intercooler Big Grin
'14 Ram 6.7l cummins -G56 handshaker, wishing it was deleted
01-06-2016, 10:14 PM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#5
RE: Baby Holset Turbo Conversion build thread
Here's hoping. So easy to blast fuel at it though Tongue

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





01-07-2016, 02:17 AM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#6
RE: Baby Holset Turbo Conversion build thread
Still making progress, albeit glacial...getting used to a Japanese DD is a bad thing

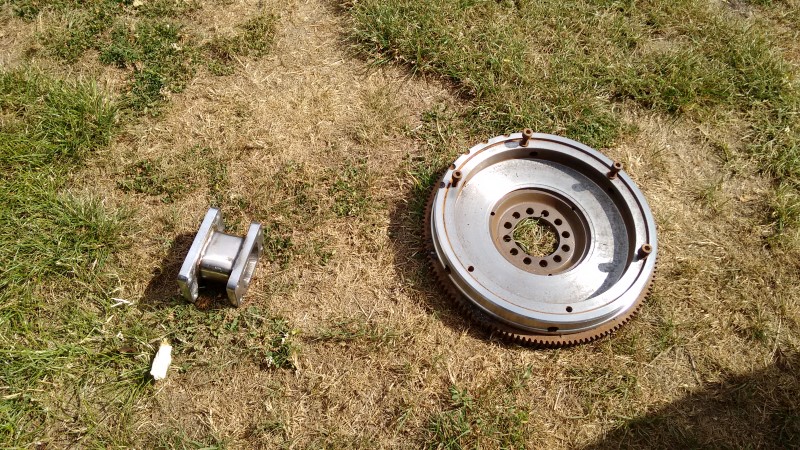

Got the T25-T3 adaptor machined down, also got the workshop to do something else...



Got my rusty old OM616 flywheel machined down to 7 kg. Fitted it today but of course have no idea if it was balanced right but we'll see.

Only thing holding me up is that our garage is so full of crap I can't get anything in or out. Still looking for a 1/8 NPT tap for the turbo oil feed from the oil filter housing lid, and the drain in the sump which I might be able to put into the lower steel sump. Took the front wheels off as I have a warped rotor but I see I have to take the bearings etc off, bugger...

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





02-08-2016, 01:02 AM
Find Reply
[486] Offline
TA 0301
**


Posts: 57
Joined: Mar 2014
Location: St. Paul, MN
#7
RE: Baby Holset Turbo Conversion build thread
(02-08-2016, 01:02 AM)NZScott Wrote: Fitted it today but of course have no idea if it was balanced right but we'll see.

I balanced my flywheel on a tire balancer. Big Grin
This was on a neutral balanced VW, from a quick google search many mercedes' were externally balanced. Meaning the flywheel is imbalanced a set amount to balance the rest of the rotating mass of the engine.

Looks like balance holes partially machined off on yours, probably pay to have it balanced properly before reassembly. Sure beats wrestling the trans back out.
02-09-2016, 11:41 PM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#8
RE: Baby Holset Turbo Conversion build thread
Yes well... probably would be a good idea. I haven't torqued the bolts back down yet, may check if anyone in town does FW balancing

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





02-11-2016, 01:56 AM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#9
RE: Baby Holset Turbo Conversion build thread
Ok, time for an update.

I took the flywheel off and got it balanced, a 1.5hr drive away...anyway the guy doing it was quite concerned how light the other flywheel was. With just the pressure plate on it weighs half of what the old stock one does without the PP (about 8.2kg and the other 16.5 IIRC). The stock one was quite off balance and so the balancing guy thought there wouldn't be enough weight in the new FW to counter the out of balance crank if you get what I mean.
But anyway he welded a steel chunk onto the PP and said try it carefully...


The other thing was that I've abandoned the HE200 in favour of a HX30.

I was worried that the low end oomph could bend the rods (with a superpump it'd be easily done vs stock fueling) and the turbine choking at high rpm would lead to high EGP and EGT etc also, potentially frying pistons. I could've gone to a HE221 but the HX30 was not only cheaper but the wastegate actuator goes off a bracket on the turbine housing. All I have to do is get a T3 flanged plate made up to offset the compressor housing enough to clear the #1 cyl inlet runner...

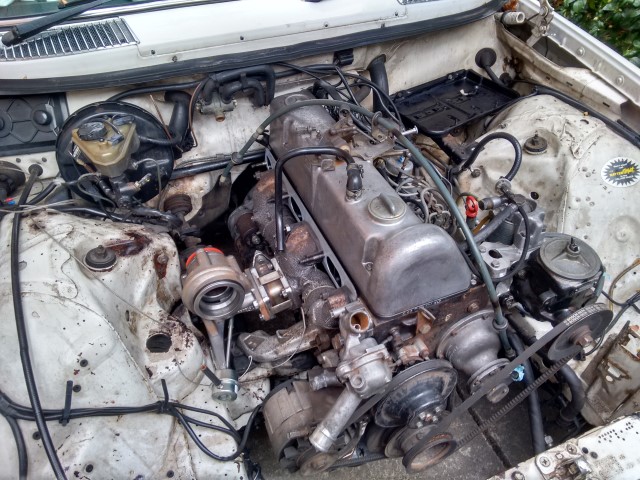

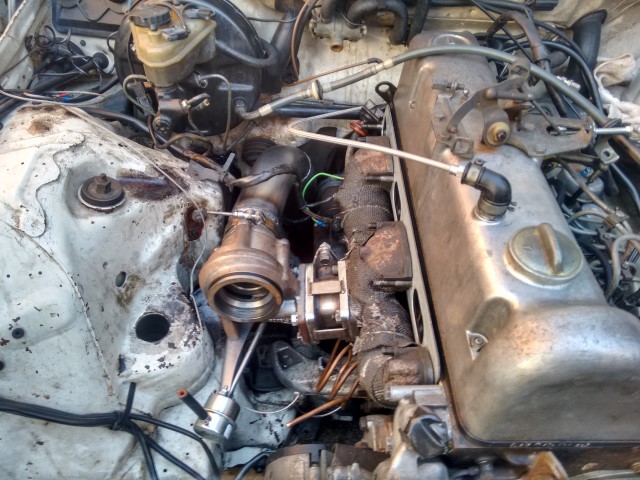

I've fitted the manifolds onto the engine, exhaust has the pyrometer probe and EGP fitting in it. Dodgily soldered on a 3/4" fitting to the sump that I hope won't start leaking...

Fitted my superpump from barrote onto the engine the other day.
https://www.youtube.com/watch?v=KO7SXBuMswI

Engine doesn't want to throw itself apart flywheel balance wise so gonna swap her in.



1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





04-23-2016, 07:19 PM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#10
RE: Baby Holset Turbo Conversion build thread
Progress report?

Got the engine swapped in but still hasn't run in the car yet.

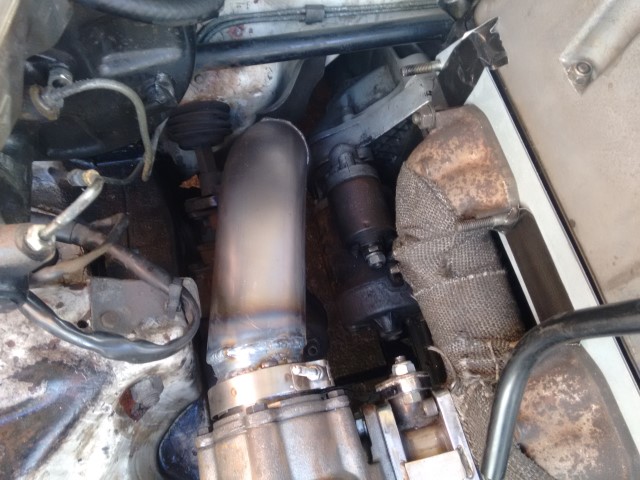

Car's been getting a full 3" exhaust installed which took a month...anyway I got the car back today. Fitted the oil cooler which had a thread repaired. Turbo isn't quite fitting and I can't get the bottom rear nut on the exhaust manifold on...but other than that making some progress.

Going to leave the intercooler off until after I get it road legal again. Need the room to try fit my landcruiser air filter housing in. She's also got some rust that needs sorting yet.

My current radiator has the plastic tanks (ugh) and had a run in with the fan at one stage which meant some tubes had to be soldered up. Also it's not the wider "turbo" radiator... not wanting to risk cooking the girl, looking at fitting a universal aluminium radiator in since nobody has the Spectra Cu672 in stock.

Any chance of getting the thread renamed? HX30W isn't really a baby now..

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





08-01-2016, 03:55 AM
Find Reply
Hario' Offline
C300TD Wagon (W202)
*****


Posts: 896
Joined: Nov 2011
Location: SW London
#11
RE: Baby Holset Turbo Conversion build thread
(08-01-2016, 03:55 AM)NZScott Wrote: Progress report?

Got the engine swapped in but still hasn't run in the car yet.
Car's been getting a full 3" exhaust installed which took a month...anyway I got the car back today. Fitted the oil cooler which had a thread repaired. Turbo isn't quite fitting and I can't get the bottom rear nut on the exhaust manifold on...but other than that making some progress.

Going to leave the intercooler off until after I get it road legal again. Need the room to try fit my landcruiser air filter housing in. She's also got some rust that needs sorting yet.

My current radiator has the plastic tanks (ugh) and had a run in with the fan at one stage which meant some tubes had to be soldered up. Also it's not the wider "turbo" radiator... not wanting to risk cooking the girl, looking at fitting a universal aluminium radiator in since nobody has the Spectra Cu672 in stock.

Any chance of getting the thread renamed? HX30W isn't really a baby now..

Winnmut will rename for you.

Thought about a rad from a W201/W210/W203 diesel etc? Whatever's easily available up your end? They will have the same pipe diameters & outlet positions etc..



Installed:

OM606/722.6, big IC, W220 brakes.
Planned:
DIY manifold, compound, 722.6 controller, built IP.
[i]Less rust..
[/i]
08-01-2016, 10:07 AM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#12
RE: Baby Holset Turbo Conversion build thread
They would be a viable option if it weren't for my hatred of plastic radiator necks... which I've seen far too many come to a steamy end

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





08-01-2016, 03:58 PM
Find Reply
Hario' Offline
C300TD Wagon (W202)
*****


Posts: 896
Joined: Nov 2011
Location: SW London
#13
RE: Baby Holset Turbo Conversion build thread
(08-01-2016, 03:58 PM)NZScott Wrote: They would be a viable option if it weren't for my hatred of plastic radiator necks... which I've seen far too many come to a steamy end

Ohhh leaking where the plastic is crimped by the aluminium? Maybe a lower rad cap pressure so make the rad cap the path of least resistance in an over heat situation? Or more cooling fans? Or maybe try not living in a beautiful hot place like NZ..



Installed:

OM606/722.6, big IC, W220 brakes.
Planned:
DIY manifold, compound, 722.6 controller, built IP.
[i]Less rust..
[/i]
08-04-2016, 07:18 AM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#14
RE: Baby Holset Turbo Conversion build thread
Haha. I just don't like the idea of plastic....seen cars overheat because the hose necks cracked, and a generic alu radiator is about the same cost anyway.

Well anyway I've got most of it put together.

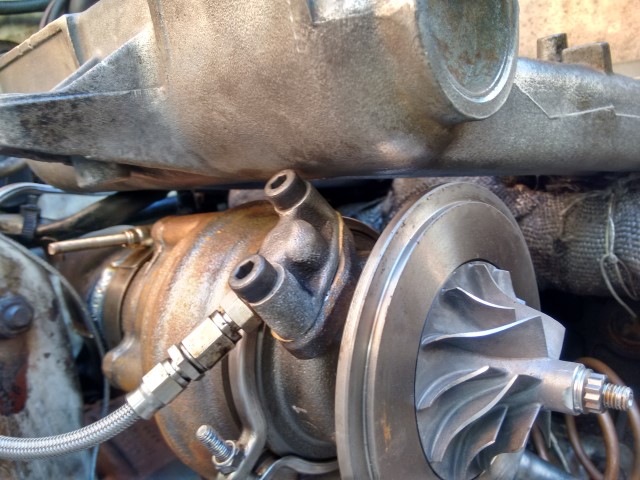

Intake manifold is a major PITA. Required a crap load of grinding to get the compressor housing to fit. The modified stock turbo oil feed end needed the flange cut away just to sink the bolt head down more to clear the bottom of the manifold. Would kill to have a 115 manifold!

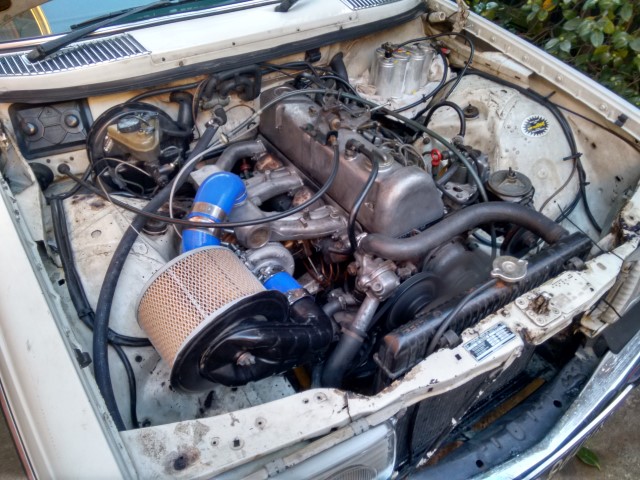

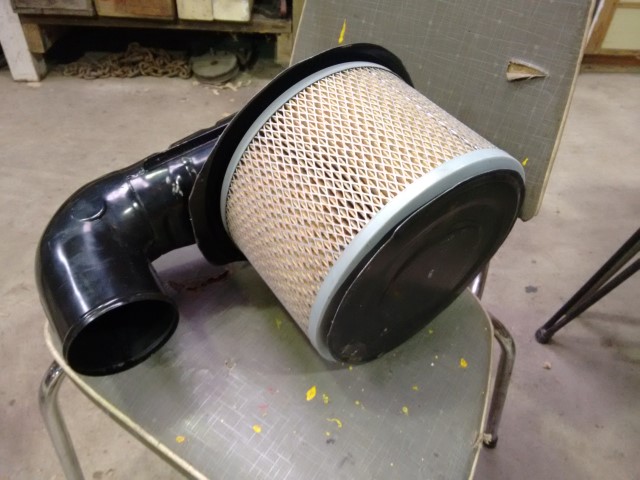

Hooked air filter to turbo, and  turbo piped direct to intake. The landcruiser air filter is pretty big and hogs all the space for the W/A IC.

Fitted the old radiator with intentions to take the car for a bit of a run but the oil cooler doesn't fit (also noticed a slight oil leak...) so think I'll just go ahead and get a new radiator. Bit strange as my old wagon which the cooler is from had the normal W123 radiator and it fitted...

Have run the engine for a few seconds now and then but there's quite a substantial leak from the T3 extension to manifold join so I have to tear apart everything before I carry on, also it's a bit reluctant to start and very cackly sounding so I'll be taking the pump off to re-time.













1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





08-05-2016, 12:52 AM
Find Reply
MFSuper90 Offline
Budget Builder
*****


Posts: 1,532
Joined: May 2010
Location: MOV, Ohio
#15
RE: Baby Holset Turbo Conversion build thread
Oh boy. My hx30 fit fine with factory turbo manifolds. I just had to cut my egr port off the exhaust.
'82 300D -3" straight pipe, ALDA deleted, 3in1 glowshift gauge, HX30, egr-less manifold, A/W intercooler Big Grin
'14 Ram 6.7l cummins -G56 handshaker, wishing it was deleted
08-05-2016, 07:08 AM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#16
RE: Baby Holset Turbo Conversion build thread
Yea, I've still got the factory turbo one. Just don't like it Tongue

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





08-05-2016, 09:01 PM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#17
RE: Baby Holset Turbo Conversion build thread
Got things mostly together, a lot just temporary at the moment. Haven't got my boost, EMP or EGT gauges installed yet


Took it for a wee spin around the block....wow!

Accelerator is an on/off switch which was a given since this pump puts out 4x the old one, what makes it worse is my accelerator cable is actually a handbrake cable with high friction (broke my original cable). I'm going to look at the linkage and try adjust the leverage. Car is bloody quick even with my external throttle stop wound in as far as it can. Engine slips the clutch like mad and blew off the hose on top of the intake twice  Sad All good fun though...

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





08-10-2016, 08:03 PM
Find Reply
MFSuper90 Offline
Budget Builder
*****


Posts: 1,532
Joined: May 2010
Location: MOV, Ohio
#18
RE: Baby Holset Turbo Conversion build thread
Awesome!
'82 300D -3" straight pipe, ALDA deleted, 3in1 glowshift gauge, HX30, egr-less manifold, A/W intercooler Big Grin
'14 Ram 6.7l cummins -G56 handshaker, wishing it was deleted
08-11-2016, 03:03 PM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#19
RE: Baby Holset Turbo Conversion build thread
https://youtu.be/T32zd6ff5-0

Fiddled with the accelerator linkage yesterday, going to re-time the pump today

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





08-16-2016, 04:17 PM
Find Reply
Hario' Offline
C300TD Wagon (W202)
*****


Posts: 896
Joined: Nov 2011
Location: SW London
#20
RE: Baby Holset Turbo Conversion build thread
(08-10-2016, 08:03 PM)NZScott Wrote: Got things mostly together, a lot just temporary at the moment. Haven't got my boost, EMP or EGT gauges installed yet


Took it for a wee spin around the block....wow!

Accelerator is an on/off switch which was a given since this pump puts out 4x the old one, what makes it worse is my accelerator cable is actually a handbrake cable with high friction (broke my original cable). I'm going to look at the linkage and try adjust the leverage. Car is bloody quick even with my external throttle stop wound in as far as it can. Engine slips the clutch like mad and blew off the hose on top of the intake twice  Sad All good fun though...

Awesome!

Maybe Google: 'progressive throttle linkage' for ideas. Probably rob one from an OEM throttle body in the junk yardd



Installed:

OM606/722.6, big IC, W220 brakes.
Planned:
DIY manifold, compound, 722.6 controller, built IP.
[i]Less rust..
[/i]
(This post was last modified: 08-18-2016, 11:52 AM by Hario'.)
08-18-2016, 11:51 AM
Find Reply
Keino Offline
GT2256V
***


Posts: 149
Joined: Aug 2014
Location: Sweden
#21
RE: Baby Holset Turbo Conversion build thread
How did I miss this thread.

Cool project!

Im gonna be sure to check in and watch ur progress Big Grin
08-18-2016, 02:02 PM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#22
RE: Baby Holset Turbo Conversion build thread
(08-18-2016, 11:51 AM)Hario Wrote: Maybe Google: 'progressive throttle linkage' for ideas. Probably rob one from an OEM throttle body in the junk yardd


Wow, thanks, just what I needed! I was thinking of something like this the other day fiddling with the linkage as there are so many ball joints with 2mm slop in each I may as well scrap the stock system...

Noticed a 2nd ball joint on the lever the IP hooks to, so extended the linkage to meet it so I get less travel at the IP end. I also put a hose clip under the pedal in just the right place so the pedal doesn't return back up all the way, as the first inch or so of travel was the hardest to push. It helped a lot, trouble is that the clip gets in the way now and I can't get full down travel from the pedal so have to think another way, I can't fit a drill in to drill a bolt hole or anything...new cable time...

(08-18-2016, 02:02 PM)Keino Wrote: How did I miss this thread.

Cool project!

Im gonna be sure to check in and watch ur progress Big Grin

Cheers Smile


For some reason my phone isn't letting my computer access the camera folder, but I've been doing mostly rust repairs, pulled the rusty right front panel off and found even more rust behind Undecided

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





08-18-2016, 05:21 PM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#23
RE: Baby Holset Turbo Conversion build thread
I haven't finished the rust repairs, waiting on a mate of a mate who can weld sorta thing but put the car back together enough to take it for a test run. I had added a boost pressure gauge and added an extra spring to the accelerator linkage (and a return stop, took out the bit of hose I had earlier tucked behind the pedal). No EGT display yet.

Woweee this thing is quick. Much better accelerator, but still gets some surging with certain situations. Clutch holds together not too bad, slips in the mid range when I guess it's peak torque. Very little smoke, the HX30 spools really well. I had 25psi + and thought my wastegate hose had popped off but nope so might take my boost controller right out and put shims behind the actuator can to lower it...

Coolant gauge wiring needs looking into.

Other main problem is my compressor housing came loose when speeding up to 100kph, probably pushing 30psi+.
I had a really hard time taking the circlip off to clock the compressor housing, not realising it had no dowel pin so I could've just loosened it to turn the housing.
Had so much trouble putting it back on I cut it in half and hammered the two bits in...yea not clever and I've paid the price.

So where can I get a HX30 compressor housing circlip from? Are they a standard size?

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





10-11-2016, 07:48 PM
Find Reply
barrote Offline
Superturbo
*****


Posts: 1,514
Joined: Dec 2011
Location: Portugal
#24
RE: Baby Holset Turbo Conversion build thread
forguet that crap, cut the circle just above the ring and install bolts "garret" style
if u have the right tools , it takes u 2 hours or so ...
FD,
Powered by tractor fuel
10-12-2016, 03:49 AM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#25
RE: Baby Holset Turbo Conversion build thread
Yup, that was my plan B lol

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





10-12-2016, 04:21 AM
Find Reply
barrote Offline
Superturbo
*****


Posts: 1,514
Joined: Dec 2011
Location: Portugal
#26
RE: Baby Holset Turbo Conversion build thread
or u can weld some "hears" in the old broken ring, as i did Wink heheh
i used a chunk of 5 by 5mm square stell rod it worked now i can use a plyer to remove the ring and install it tied with a wire.... basic mechanics....
FD,
Powered by tractor fuel
10-12-2016, 04:41 AM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#27
RE: Baby Holset Turbo Conversion build thread
I fixed the turbo, bit of a hack job, no pics of it Tongue haven't had a run with it yet either...

Just lately been busy but took spare tyre and mount out to put my ultracap pack into it, freeing the battery tray later on for my W/A tank/icebox. Just have to get a big cable terminal crimper and I can run the cable along the fuel lines etc.

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





10-27-2016, 10:40 PM
Find Reply
300sd/5speed Offline
Naturally-aspirated
*


Posts: 13
Joined: Sep 2016
Location: Ireland
#28
RE: Baby Holset Turbo Conversion build thread
Hey just read your thread, very intertesing build! i am the guy who posted the 300sd 0-60 video today, i have a question about your flywheel though, you said you shaved a 240d one down to 7.5kg thats very light for a om617 even lighter than my m110 which is 8.5kg, my question is how have you found it? with my m110 fw i have driveline vibrations under certain conditions and a rather loud "getrag rattle" at idle in neutral, have you experience anything similar to me? IF you you haven't maybe the flywheel is not my problem? I am in the process of buying a 300gd flywheel 17kg and bigger clutch thand the 300dfw I will probably shave off around 2 kg though, Oh and you said your clutch is slipping does your 240d fw have the smaller clutch, the m110 fw has a 230mm clutch, it might be an option for you.
10-29-2016, 07:58 PM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#29
RE: Baby Holset Turbo Conversion build thread
I do get really bad vibes just off idle (shakes entire car side to side) but above that you can't feel much. The flywheel balancing guy said lightening the FW as much as I did it would be impossible to get it perfect, the original FW was quite off balance and he ended up welding a weight onto the pressure plate (visible in a pic above). Wish I had a neutrally/internal balanced engine. Hope my turbo engine is...

Yup stock 215mm, I put a new kit in. Going to take it all off before I ruin it from slipping too much, I would then basically have enough bits for a future 4 speed conversion for another 123.

I was browsing for 240mm clutch bits after getting some advice from F.R.A.S and come upon a SPEC clutch kit rated for 440 ft-lb (~590Nm) meant for a BMW 535i. 240mm sinter. It was $140 USD unused 2nd hand as opposed to $490 new, a no brainer really, over here LS clutches are too big and Jap clutch kits (RB26 etc) are $800-1400. Going to get the oldest of my 3 617 FWs machined to fit it and rebalanced. Will be interesting as to what weight it is because the BMW flywheel is flat. Might have to get weights added to the PP again.

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





10-30-2016, 12:07 AM
Find Reply
300sd/5speed Offline
Naturally-aspirated
*


Posts: 13
Joined: Sep 2016
Location: Ireland
#30
RE: Baby Holset Turbo Conversion build thread
(10-30-2016, 12:07 AM)NZScott Wrote: I do get really bad vibes just off idle (shakes entire car side to side) but above that you can't feel much. The flywheel balancing guy said lightening the FW as much as I did it would be impossible to get it perfect, the original FW was quite off balance and he ended up welding a weight onto the pressure plate (visible in a pic above). Wish I had a neutrally/internal balanced engine. Hope my turbo engine is...

Yup stock 215mm, I put a new kit in. Going to take it all off before I ruin it from slipping too much, I would then basically have enough bits for a future 4 speed conversion for another 123.

I was browsing for 240mm clutch bits after getting some advice from F.R.A.S and come upon a SPEC clutch kit rated for 440 ft-lb (~590Nm) meant for a BMW 535i. 240mm sinter. It was $140 USD unused 2nd hand as opposed to $490 new, a no brainer really, over here LS clutches are too big and Jap clutch kits (RB26 etc) are $800-1400. Going to get the oldest of my 3 617 FWs machined to fit it and rebalanced. Will be interesting as to what weight it is because the BMW flywheel is flat. Might have to get weights added to the PP again.

But specifically did you notice a rattle noise from the gearbox in neutral idle it's known as the getrag rattle the noise goes away when you press in the clutch I'm asking this because I'm trying to determine whether or not the weight of the flywheel is the cause or maybe something else, I'm also getting vibration that travels through the driveshaft and makes a rattling noise n rear axle at certain points between deceleration and acceleration at low speeds, my engine does not vibrate though it's smooth throughout the rev, i had the FW match balanced.
10-30-2016, 02:28 PM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#31
RE: Baby Holset Turbo Conversion build thread
Sorry don't have a Getrag box, my old iron box 4 speed used to do exactly what you're describing though with the stock flywheel

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





10-30-2016, 04:26 PM
Find Reply
300sd/5speed Offline
Naturally-aspirated
*


Posts: 13
Joined: Sep 2016
Location: Ireland
#32
RE: Baby Holset Turbo Conversion build thread
(10-30-2016, 04:26 PM)NZScott Wrote: Sorry don't have a Getrag box, my old iron box 4 speed used to do exactly what you're describing though with the stock flywheel

Oh right... what gearbox are you running?
10-30-2016, 05:23 PM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#33
RE: Baby Holset Turbo Conversion build thread
711.113, or G 1/18-5/4,7. Used in T1 vans/trucks. 711.117 is the G wagen version. 4.695 1st gear and 0.806 5th. Still using my 4 speed gearshift but had to bend the tab that presses the reverse switch so it wouldn't turn the reverse lights on in 1st gear, which is below reverse dogleg style.

1st and 2nd are unscynchronised, (meant to use 2nd as first most of the time) so it's not really ideal for a sedan but meh, got my overdrive Smile

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





10-30-2016, 10:52 PM
Find Reply
Austincarnut Offline
Holset
****


Posts: 277
Joined: Jun 2012
Location: USA
#34
RE: Baby Holset Turbo Conversion build thread
(10-30-2016, 10:52 PM)What did you end up doing with your clutch?  Did you fit a 240mm?  I\m in the same boat, my 215mm can't handle the input torque of the 7.5mm pump and hx30!  I am considering modding the flywheel to accommodate the larger PP from the sachs  76 5NZScott Wrote: 711.113, or G 1/18-5/4,7. Used in T1 vans/trucks. 711.117 is the G wagen version. 4.695 1st gear and 0.806 5th. Still using my 4 speed gearshift but had to bend the tab that presses the reverse switch so it wouldn't turn the reverse lights on in 1st gear, which is below reverse dogleg style.

1st and 2nd are unscynchronised, (meant to use 2nd as first most of the time) so it's not really ideal for a sedan but meh, got my overdrive Smile
01-10-2017, 10:12 PM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#35
RE: Baby Holset Turbo Conversion build thread
Lol well actually yesterday I called up a workshop that does machining of them and balancing (rather than separate like I did before) but it's a 450km drive to them so I am just waiting for a free time to go down for a trip. So sorry no progress on that front yet...

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





01-11-2017, 12:15 AM
Find Reply
Austincarnut Offline
Holset
****


Posts: 277
Joined: Jun 2012
Location: USA
#36
RE: Baby Holset Turbo Conversion build thread
(01-11-2017, 12:15 AM)What clutch/FW did you go with? NZScott Wrote: Lol well actually yesterday I called up a workshop that does machining of them and balancing (rather than separate like I did before) but it's a 450km drive to them so I am just waiting for a free time to go down for a trip. So sorry no progress on that front yet...
01-11-2017, 09:47 PM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#37
RE: Baby Holset Turbo Conversion build thread
The 240D FW in the car now has a slightly smaller outer diameter so I can't use that. I do have 3 300D FWs though so I'm going to use my crappiest one to get machined down til it's flat to fit the PP. It's this http://www.specclutches.com/694999/ except I got it muuuch cheaper Wink Clutch fits on the input shaft perfectly.

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





01-12-2017, 02:24 AM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#38
RE: Baby Holset Turbo Conversion build thread
Bit of a non-update:
Time is getting a bit short now I'm full time studying aviation engineering.

Very little progress, mostly solved the temperature gauge issue by simply plugging the correct wire to the correct sender (old glow plug relay in my car which has the engine temp sensor, got mixed up....) also swapped thermostat housings while I was at it to rule out bad thermostat...

Decided instead of getting cert'ed now and then selling off my 'Toymota', I will do everything I have to 'now' ie, get the other flywheel machined for the BMW PP and swap it. Also have to do the turbo drain all over again properly as it leaks. Gotta make a small extra dashboard to house some switches and the boost+EMP gauge. Swap my ali radiator and install a heater bypass to it as well so the rear cylinders don't overheat (as much) when pushing the old girl.

Dunno if I can install the intercooler etc system yet, got enough to do as is really...

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





03-06-2017, 12:57 AM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#39
RE: Baby Holset Turbo Conversion build thread
I have begun removal of the engine (with gearbox this time) to swap flywheel and clutch. Here is a video of it's last start for a while....who needs glow plugs when you can crank this fast?
https://www.youtube.com/watch?v=Q0XTvpRAQAI

Sorted a way on how to get my new radiator installed...might get that done by the end of the week all going well.

Another thing on my plate is my parts car. Anyone want a M123 engine+ auto box? Wink

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





03-28-2017, 12:53 AM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#40
RE: Baby Holset Turbo Conversion build thread
Been making some progress lately but can't show yas - anyone else having issues uploading/attaching pics on here?

Anyway I have a custom flywheel made to fit the SPEC BMW 535i pressure plate and 6 puck sinter clutch.  Just bolted it on the engine today after getting it all match balanced last week to the old flywheel.

Just now have to check the clutch fork position (stock was 44mm from the slave cylinder mounting surface FWIW) as the flywheel maker had to change things a bit to fit the PP. Tomorrow's job if the rain stays away...

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





10-09-2017, 02:16 AM
Find Reply
Austincarnut Offline
Holset
****


Posts: 277
Joined: Jun 2012
Location: USA
#41
RE: Baby Holset Turbo Conversion build thread
(10-09-2017, 02:16 AM)NZScott Wrote: Been making some progress lately but can't show yas - anyone else having issues uploading/attaching pics on here?

Anyway I have a custom flywheel made to fit the SPEC BMW 535i pressure plate and 6 puck sinter clutch.  Just bolted it on the engine today after getting it all match balanced last week to the old flywheel.

Just now have to check the clutch fork position (stock was 44mm from the slave cylinder mounting surface FWIW) as the flywheel maker had to change things a bit to fit the PP. Tomorrow's job if the rain stays away...

What did that cost??
10-09-2017, 11:00 AM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#42
RE: Baby Holset Turbo Conversion build thread
PP and clutch setup - $140 US (not inc shipping)
Flywheel $650 NZ
Match balancing - $280 NZ

And clutch fork is now 57mm in so need to extend the slave cylinder rod 13mm or so.

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





10-10-2017, 03:51 AM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#43
RE: Baby Holset Turbo Conversion build thread
Damn what a shame I can't upload pics here. Anywho a quick update:

Custom flywheel and clutch kit all on engine, gearbox on engine, both been waiting to go in the car for weeks.

Went for a 2000km roadtrip last week and conveniently just "happened" to come across a Mercedes parts yard which had a 500,000km '81 wagon still with its 617.952... owner said it was tired and could do with a rebuild (and it looks pretty sorry with corrosion and oil stains all over it). Pulled it out and he loaded it on a trailer for us. Just test ran it today, bloody thing has barely any smoke or blowby, very pleased with it!

I think there's only 6x 617As in this country and I now have two of them, lol

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





12-12-2017, 04:28 AM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#44
RE: Baby Holset Turbo Conversion build thread
https://www.youtube.com/watch?v=m_3hvbi4i4U

Test run of the engine I bought.

After this run I did a compression test (done in this order):

#5 400
#4 340
#3 320
#2 290
#1 220

Weird or what? Are the valves that out of whack? Like new>stuffed in the same engine...

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





12-23-2017, 02:14 AM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#45
RE: Baby Holset Turbo Conversion build thread
Worked out that I can get pics in here by hosting from Flickr so here's a deluge of them to catch up

Before it all came apart again

[Image: 24867496477_afbd37b0b9_z.jpg]


The HX30W after being made to fit the intake mani...
[Image: 25865210148_34fa78de2b_z.jpg]
[/url]
Pulling it all apart to get rust fixed up
[Image: 39027892514_c3afa7b823_z.jpg]


[Image: 39705645122_06a6525692_z.jpg]

[Image: 39705649312_21e1855a6d_z.jpg]

Our she comes again (nearly a year ago!)
[Image: 39705641362_43a2678366_z.jpg]
Couple gearbox pics

[url=https://flic.kr/p/23uDMQY][Image: 39705641332_7568b56cfc_z.jpg]
[Image: 27958340939_7bf92958f7_z.jpg]

The BMW 535i SPEC clutch kit
[Image: 24867499527_647dd78707_z.jpg]
Custom flywheel to match it...
[Image: 27958337649_fe93478698_z.jpg]
[Image: 27958336589_e9a638ed70_z.jpg]


[Image: 27958331759_e39c38b9cd_z.jpg]
Turbo oil drain mod to AN-10
[Image: 27958340269_603ef526b8_z.jpg]

Universal all aluminium radiator trial install
[Image: 27958333099_db82380a53_z.jpg]
[Image: 27958334289_17d2c4050f_z.jpg]

Making the spacer for the clutch release bearing , since the BMW setup had to be moved further forward than the stock setup (this was actually the first attempt which was too thin - I made my 2nd and final one too thick as it was easier to adjust externally that way)
[Image: 27958330629_ff0def5bf8_z.jpg]
[Image: 27958331589_10cc68b45b_z.jpg]
Was going to try weld it on(hence the fillets ground away), but bad idea, so ended up gluing it instead
[Image: 27958326109_568882050d_z.jpg]


Engine + gearbox are back in the car and bolted in. Have started the engine..still have shifter rods, clutch slave cylinder, radiator etc to hook up.

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





01-17-2018, 01:49 AM
Find Reply
Mallinman Offline
GTA2056V
**


Posts: 92
Joined: May 2016
Location: Yorkshire, england
#46
RE: Baby Holset Turbo Conversion build thread
Looking good
L200 manual om605  7.5mm
01-17-2018, 02:55 PM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#47
RE: Baby Holset Turbo Conversion build thread
Update...
Had a wee prang on a motorbike/scooter thing I bought which put me on crutches for a while. Rain also didn't help with the car being on a poorly draining lawn with a 2" puddle under the car...

So...needed to install a new slave cylinder after I stuffed up my rod lengths for the piston>release fork, ended up blowing the piston almost out the end of the cylinder...
Got the cylinder in yesterday, tried bleeding it today by using a big syringe I use for lawnmower oil changes but no luck, I can suck the fluid out the bottom forever and a day, but whenever I stop getting bubbles the pedal is never "primed" as if its not even attached to anything. Going to try pressure bleed it tomorrow with an old garden sprayer. I filled the reservoir up all the way so might flush the brakes out while I'm there.

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





07-07-2018, 01:34 AM
Find Reply
R-3350 Offline
Dreaming of compounds
***


Posts: 175
Joined: Feb 2016
Location: Western NC USA
#48
RE: Baby Holset Turbo Conversion build thread
i forget to ask when you posted it up a while ago. how did you get the custom flywheel? been looking into a gs6 but the two kickers are the clutch and flywheel
85 300D om617: 8mm M pump 175cc 5200rpm, holset he221w @ 30psi, large A2W ic, compounds on the way.
07-07-2018, 08:19 AM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#49
RE: Baby Holset Turbo Conversion build thread
(07-07-2018, 08:19 AM)R-3350 Wrote: i forget to ask when you posted it up a while ago. how did you get the custom flywheel? been looking into a gs6 but the two kickers are the clutch and flywheel

Took an exisitng FW into a engine shop and they said it couldn't be modded for the larger PP, they recommended me a custom FW maker here who's done all sorts, street, racing, even EV conversions. Price wasn't a surprise either which was good. As mentioned before the clutch surface was offset to fit the PP in so a bit of mucking round with that thrust bearing spacer. I actually got the clutch to release once and could shift in gear with the engine going (but it was a one way trip for that slave piston lol)

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





07-07-2018, 03:25 PM
Find Reply
NZScott Online
HX30W 73/44mm
****


Posts: 363
Joined: Jul 2014
Location: New Zealand
#50
RE: Baby Holset Turbo Conversion build thread
Well I'm a happy chappy. Was just about to get bleeding again but I tried the pedal just before I did and it was hard to push like it should. Charged the caps up and started the engine and low and behold the thing drives back n forth.

I can now start putting the pulleys and radiator etc in.

1978 300D, 373,000km
OM617.912 with a Holset HX30W, 7.5mm IP, 711.113 5 speed (awaiting certification to be legal...)

1977 250 270,000km (parts car)
1977 300D (ex 280) 500,000km 'new' DD





07-12-2018, 07:34 PM
Find Reply


Forum Jump:


Users browsing this thread: 1 Guest(s)
