So I am working on a 722.6 swap for a customer that has a N/A 606 and will be swapping later to a Turbo. I am looking at the throttle linkage for a TPS setup and realized that this will change with the turbo engine. What setup are you guys using for the mechanical pump in the turbo engines? I want to make sure that I locate everthing so it is easy to change the TPS later. Pictures would be great.
This is in a w124 chassis.
whipplem104
04-10-2015, 12:56 PM #1Ok,
So I am working on a 722.6 swap for a customer that has a N/A 606 and will be swapping later to a Turbo. I am looking at the throttle linkage for a TPS setup and realized that this will change with the turbo engine. What setup are you guys using for the mechanical pump in the turbo engines? I want to make sure that I locate everthing so it is easy to change the TPS later. Pictures would be great.
This is in a w124 chassis.

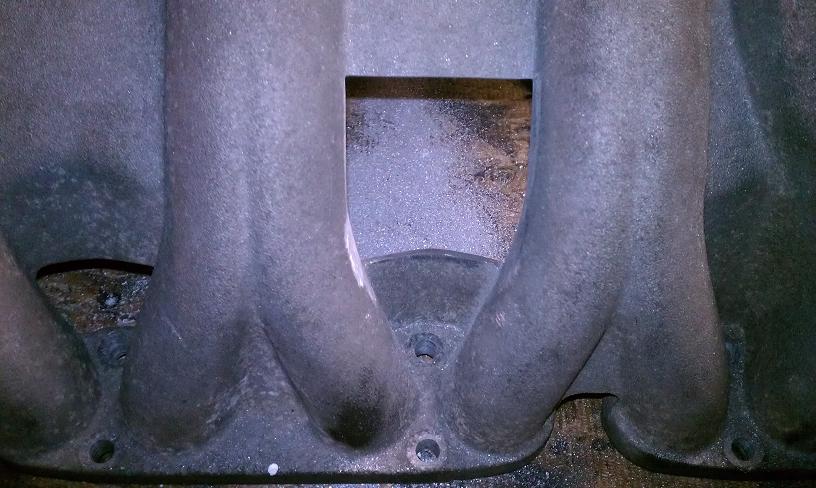

Manifold cutout

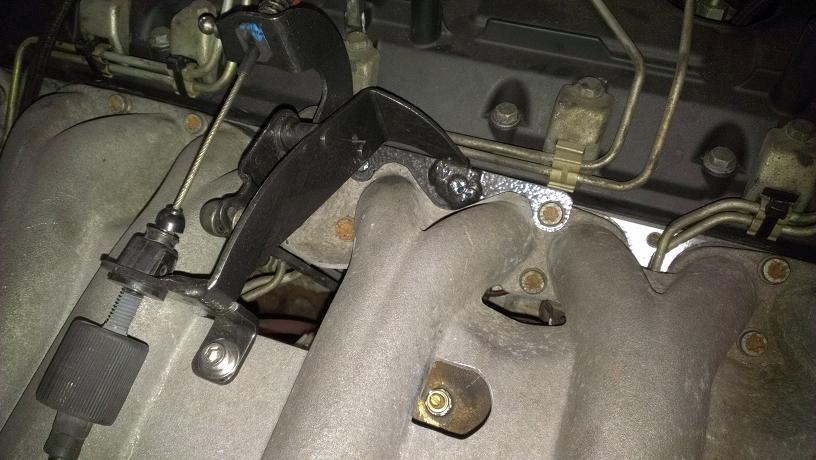

Welded custom bracket:

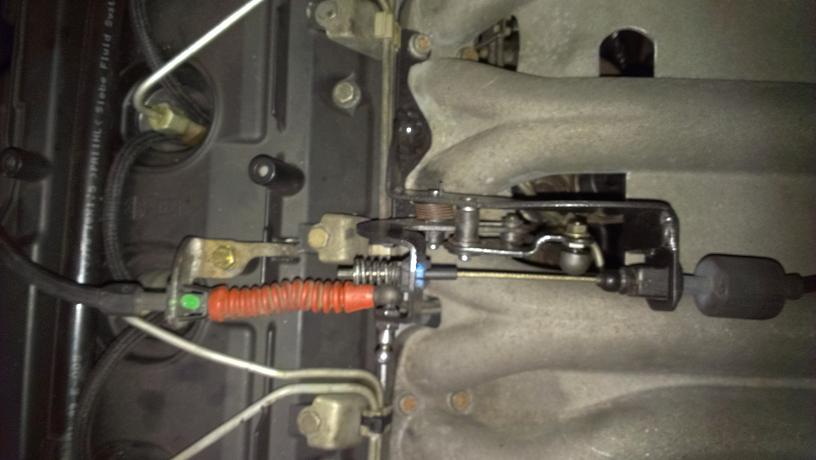

Finished linkage:
Some other people attach the cable directly to the pump and use the place where the fuel heater was mounted for a bracket.
![[Image: IMG_1361.jpg]](http://i231.photobucket.com/albums/ee163/jakebeggy/4runner/mercruiser/IMG_1361.jpg)
I personally don't like this solution but hey it works
Here's how @HoleshotHolset did his
Manifold cutout
Welded custom bracket:
Finished linkage:
Some other people attach the cable directly to the pump and use the place where the fuel heater was mounted for a bracket.
I personally don't like this solution but hey it works

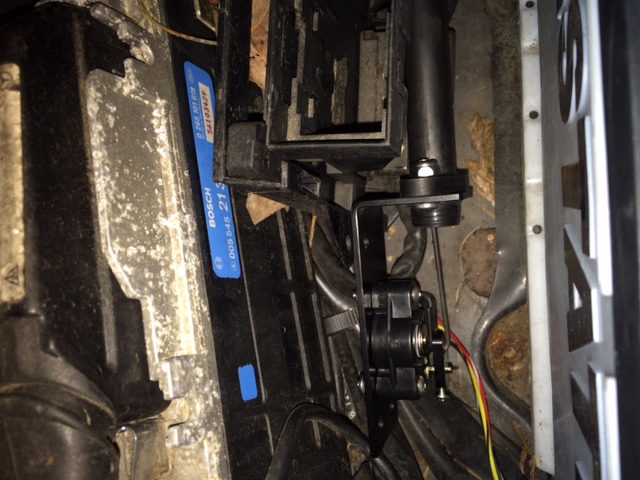

I like the way I am doing the TPS on the original transmission cable location with this setup. It looks factory. So when the T-engine goes in I will just do that setup. Keep it simple.
whipplem104
04-10-2015, 07:11 PM #5Sweet. Thanks.
I like the way I am doing the TPS on the original transmission cable location with this setup. It looks factory. So when the T-engine goes in I will just do that setup. Keep it simple.
whipplem104

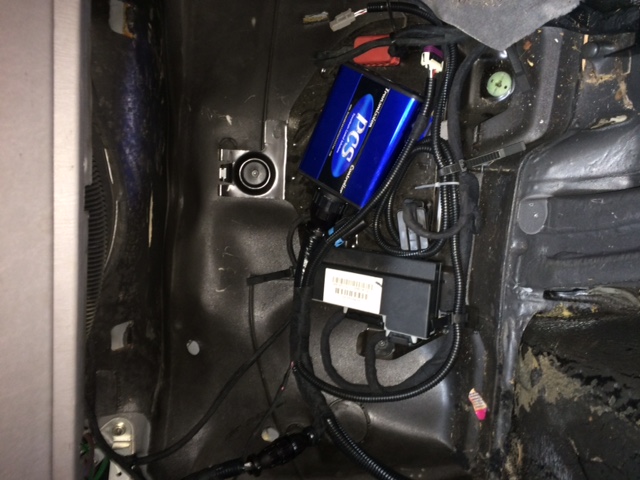

04-10-2015, 08:09 PM #7This is the tcu placement and harness layout in the car.
