#1
Take one awesome om604 engine. Put stronger rods and pistons in it, straighten and balance the crank, weigh all rods and pistons, get crazy camshafts to it and machine the pistons for clearance then send the pistons of for coating. Modify a BMW flywheel to fit the Mercedes crank and tadaaa you have a solid 4cyl 16v diesel.
Dieselmeken will build the IP.
F-tune Performance
![[Image: V-band_om606.jpg]](http://www.f-tune.se/wp-content/uploads/2015/01/V-band_om606.jpg)
![[Image: GTX3582R.jpg]](http://www.f-tune.se/wp-content/uploads/2015/01/GTX3582R.jpg)
![[Image: gs6-53dz_gearbox.jpg]](http://www.f-tune.se/wp-content/uploads/2015/01/gs6-53dz_gearbox.jpg)
I can help you out with all your manual transmission, clutch, flywheel, intake and exhaust manifold issues.
How to build a solid 4cyl diesel?
Take one awesome om604 engine. Put stronger rods and pistons in it, straighten and balance the crank, weigh all rods and pistons, get crazy camshafts to it and machine the pistons for clearance then send the pistons of for coating. Modify a BMW flywheel to fit the Mercedes crank and tadaaa you have a solid 4cyl 16v diesel.
Dieselmeken will build the IP.
F-tune Performance
I can help you out with all your manual transmission, clutch, flywheel, intake and exhaust manifold issues.
01-03-2015, 06:32 PM
#3
2-liter...(01-03-2015, 05:43 PM)barrote yep, seems easy , just a simple question, what will be the displacement?
F-tune Performance
I can help you out with all your manual transmission, clutch, flywheel, intake and exhaust manifold issues.
Look at the subject 2-liter...
(01-03-2015, 05:43 PM)barrote yep, seems easy , just a simple question, what will be the displacement?
F-tune Performance
I can help you out with all your manual transmission, clutch, flywheel, intake and exhaust manifold issues.
, like many things in the world , the hell is in the details.....
01-04-2015, 12:40 PM
#7
Intake:
Centerline 112-degrees
Duration 280-degrees
Lift 10,6mm
TDC lift 1,7mm
Exhaust:
Centerline 112-degrees
Duration 280-degrees
Lift 10,6mm
TDC lift 1,6mm
This is what we call Stg2 cams. So nothing special at all.
(01-04-2015, 10:32 AM)raysorenson Would you mind sharing the cam specs?
Yes normal turbo engine bore and stroke
Yep new sleeves in the cylinders to achieve the smaller bore.
(01-04-2015, 11:00 AM)Petar What bore and stroke ? My guess is OM601 84mm stroke crank and 87mm 606 turbo pistons.Did you resleeve the engine for the smaller bore ?
F-tune Performance
I can help you out with all your manual transmission, clutch, flywheel, intake and exhaust manifold issues.
Not at all.
Intake:
Centerline 112-degrees
Duration 280-degrees
Lift 10,6mm
TDC lift 1,7mm
Exhaust:
Centerline 112-degrees
Duration 280-degrees
Lift 10,6mm
TDC lift 1,6mm
This is what we call Stg2 cams. So nothing special at all.
(01-04-2015, 10:32 AM)raysorenson Would you mind sharing the cam specs?
Yes normal turbo engine bore and stroke
Yep new sleeves in the cylinders to achieve the smaller bore.
(01-04-2015, 11:00 AM)Petar What bore and stroke ? My guess is OM601 84mm stroke crank and 87mm 606 turbo pistons.Did you resleeve the engine for the smaller bore ?
F-tune Performance
I can help you out with all your manual transmission, clutch, flywheel, intake and exhaust manifold issues.
01-07-2015, 10:59 AM
#8
Is that duration @1.0mm lift?
raysorenson
01-07-2015, 10:59 AM #8Thanks for the info. Doing research for a 603 cam.
Is that duration @1.0mm lift?
01-07-2015, 05:24 PM
#9
I have no clue actually and that is a valid question. I'm NOT the camshaft guy really. I don't know anything of how that piece works. I just know from being in the flow bench that you need a little bit of lift to get good numbers.
The cam-guy we use calculate on stuff like this. Maybe it's time to learn
(01-07-2015, 10:59 AM)raysorenson Thanks for the info. Doing research for a 603 cam.
Is that duration @1.0mm lift?
F-tune Performance
I can help you out with all your manual transmission, clutch, flywheel, intake and exhaust manifold issues.
You never learn enough
I have no clue actually and that is a valid question. I'm NOT the camshaft guy really. I don't know anything of how that piece works. I just know from being in the flow bench that you need a little bit of lift to get good numbers.
The cam-guy we use calculate on stuff like this. Maybe it's time to learn
(01-07-2015, 10:59 AM)raysorenson Thanks for the info. Doing research for a 603 cam.
Is that duration @1.0mm lift?
F-tune Performance
I can help you out with all your manual transmission, clutch, flywheel, intake and exhaust manifold issues.
01-08-2015, 02:13 PM
#11
Will you be using aftermarket connecting rods? I certainly hope so - with the fueling potential of the Dieselmeken pump and what I suppose may be 2.5 bar of boost or so, the upgraded rods would be a nice insurance policy.
Steve.
This looks like a very interesting project. I can't wait to hear/see how well it runs.
Will you be using aftermarket connecting rods? I certainly hope so - with the fueling potential of the Dieselmeken pump and what I suppose may be 2.5 bar of boost or so, the upgraded rods would be a nice insurance policy.
Steve.
01-08-2015, 03:29 PM
#12
AND it's pretty hard to find a tougher rod the same length as a 2.2-liter rod.(01-08-2015, 02:12 PM)erling66 Why do you want to reduce bore and stroke? Bore, I guess is because you want to use 605/6 turbo pistons. But stroke??? Normally more ccm means more hp.
2.5bar will not do it quite frankly, 3-3,2bar maybe. And yea it's a cool project. Just have to make sure the guy with the wallet decides for some forged rods
(01-08-2015, 02:13 PM)Jetmugg This looks like a very interesting project. I can't wait to hear/see how well it runs.
Will you be using aftermarket connecting rods? I certainly hope so - with the fueling potential of the Dieselmeken pump and what I suppose may be 2.5 bar of boost or so, the upgraded rods would be a nice insurance policy.
Steve.
F-tune Performance
I can help you out with all your manual transmission, clutch, flywheel, intake and exhaust manifold issues.
The engine will race in a 2-liter class AND it's pretty hard to find a tougher rod the same length as a 2.2-liter rod.
(01-08-2015, 02:12 PM)erling66 Why do you want to reduce bore and stroke? Bore, I guess is because you want to use 605/6 turbo pistons. But stroke??? Normally more ccm means more hp.
2.5bar will not do it quite frankly, 3-3,2bar maybe. And yea it's a cool project. Just have to make sure the guy with the wallet decides for some forged rods
(01-08-2015, 02:13 PM)Jetmugg This looks like a very interesting project. I can't wait to hear/see how well it runs.
Will you be using aftermarket connecting rods? I certainly hope so - with the fueling potential of the Dieselmeken pump and what I suppose may be 2.5 bar of boost or so, the upgraded rods would be a nice insurance policy.
Steve.
F-tune Performance
I can help you out with all your manual transmission, clutch, flywheel, intake and exhaust manifold issues.
01-09-2015, 08:55 AM
#14
(01-09-2015, 06:24 AM)Hario I would suggest you'll need around 4 or 5 turbos to achieve your power goals.
F-tune Performance
I can help you out with all your manual transmission, clutch, flywheel, intake and exhaust manifold issues.
Ohhh no we're not aiming for 1550whp so we'll manage with one for now and two later on...
(01-09-2015, 06:24 AM)Hario I would suggest you'll need around 4 or 5 turbos to achieve your power goals.
F-tune Performance
I can help you out with all your manual transmission, clutch, flywheel, intake and exhaust manifold issues.
01-09-2015, 02:12 PM
#16
(01-08-2015, 03:29 PM)F.R.A.S The engine will race in a 2-liter classNow I see why you want 2L
but I am quite sure the 2.2L use the same rod length as the OM601 and the rare OM604 2L. Do you have a plan for when this engine should be running?
(01-08-2015, 03:29 PM)F.R.A.S The engine will race in a 2-liter classNow I see why you want 2L
but I am quite sure the 2.2L use the same rod length as the OM601 and the rare OM604 2L. Do you have a plan for when this engine should be running?
01-09-2015, 02:52 PM
#17
We use the 606dt rods in this application (for now).I have a set off each rods in the shop so will actually measure them
I hope we can have this beauty up and running in the middle of february. Will break it in gently @ 6000rpm in the engine dyno hahahha...
(01-09-2015, 02:12 PM)erling66 Now I see why you want 2L
F-tune Performance
I can help you out with all your manual transmission, clutch, flywheel, intake and exhaust manifold issues.
Maybe you are correct regarding the rod length but still only a 26mm wrist pin We use the 606dt rods in this application (for now).
I have a set off each rods in the shop so will actually measure them
I hope we can have this beauty up and running in the middle of february. Will break it in gently @ 6000rpm in the engine dyno hahahha...
(01-09-2015, 02:12 PM)erling66 Now I see why you want 2L
F-tune Performance
I can help you out with all your manual transmission, clutch, flywheel, intake and exhaust manifold issues.
![[Image: FtuneRampage_zps5e51abd6.jpg]](http://i468.photobucket.com/albums/rr44/Jetmugg/FtuneRampage_zps5e51abd6.jpg)
01-10-2015, 02:27 PM
#19
(01-10-2015, 12:22 PM)Jetmugg After the engine is properly broken in, I suggest that we install it in something like this....
, remove the bicycle and tow bar, and then go chase a Land Speed Record.
Steve.

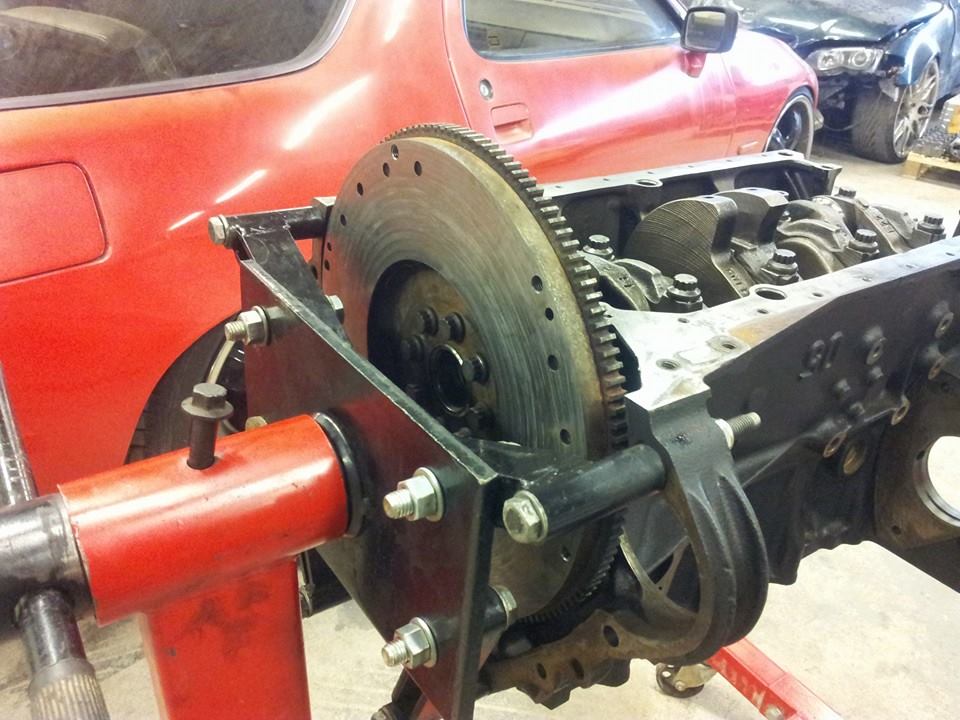

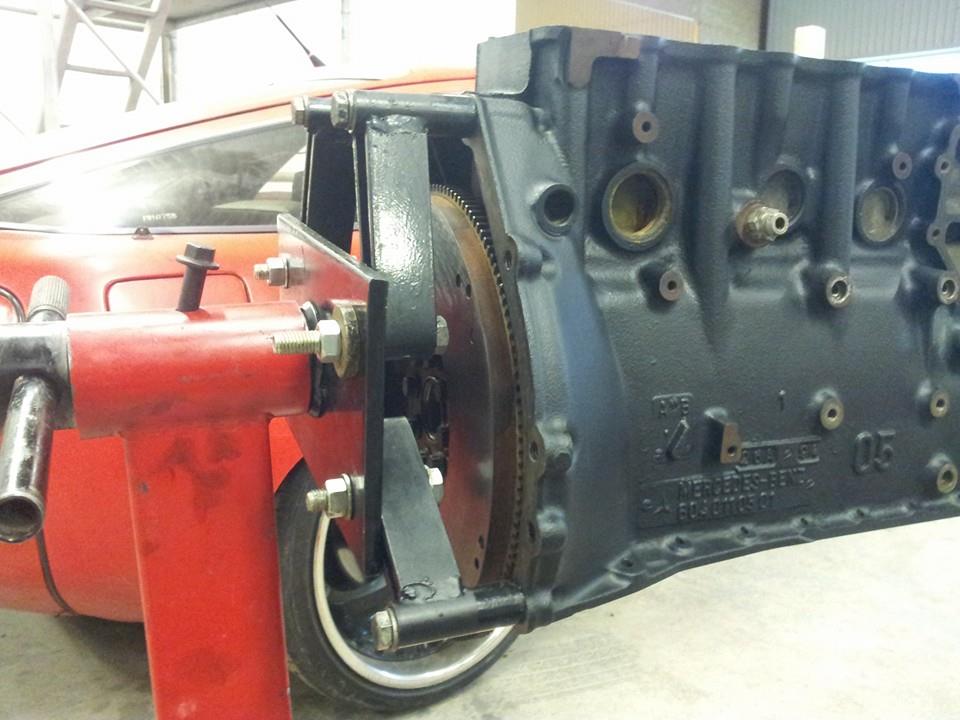

Here's some pictures of the engine and the BMW flywheel.
This post was last modified: 01-10-2015, 02:58 PM by F.R.A.S.
F-tune Performance
I can help you out with all your manual transmission, clutch, flywheel, intake and exhaust manifold issues.
I just love that picture!!! There will be NO competition on that bed off salt when Team Green Frog arrives.
(01-10-2015, 12:22 PM)Jetmugg After the engine is properly broken in, I suggest that we install it in something like this....
, remove the bicycle and tow bar, and then go chase a Land Speed Record.
Steve.
Here's some pictures of the engine and the BMW flywheel.
F-tune Performance
I can help you out with all your manual transmission, clutch, flywheel, intake and exhaust manifold issues.
02-04-2015, 11:12 PM
#20
What coating are you putting on the pistons...ceramic on top and Teflon on the sides?
Are you doing any modification to the pre chambers?
" It is far easier to get forgiveness rather than permission"
Riverstick
02-04-2015, 11:12 PM #20Brilliant thread F.R.A.S,
What coating are you putting on the pistons...ceramic on top and Teflon on the sides?
Are you doing any modification to the pre chambers?
" It is far easier to get forgiveness rather than permission"
02-05-2015, 03:50 AM
#21
(02-04-2015, 11:12 PM)Riverstick Brilliant thread F.R.A.S,
What coating are you putting on the pistons...ceramic on top and Teflon on the sides?
Are you doing any modification to the pre chambers?
Pistons.
![[Image: 10937269_10203371302591550_1488805200_n.jpg]](http://www.f-tune.se/wp-content/uploads/2015/02/10937269_10203371302591550_1488805200_n.jpg)

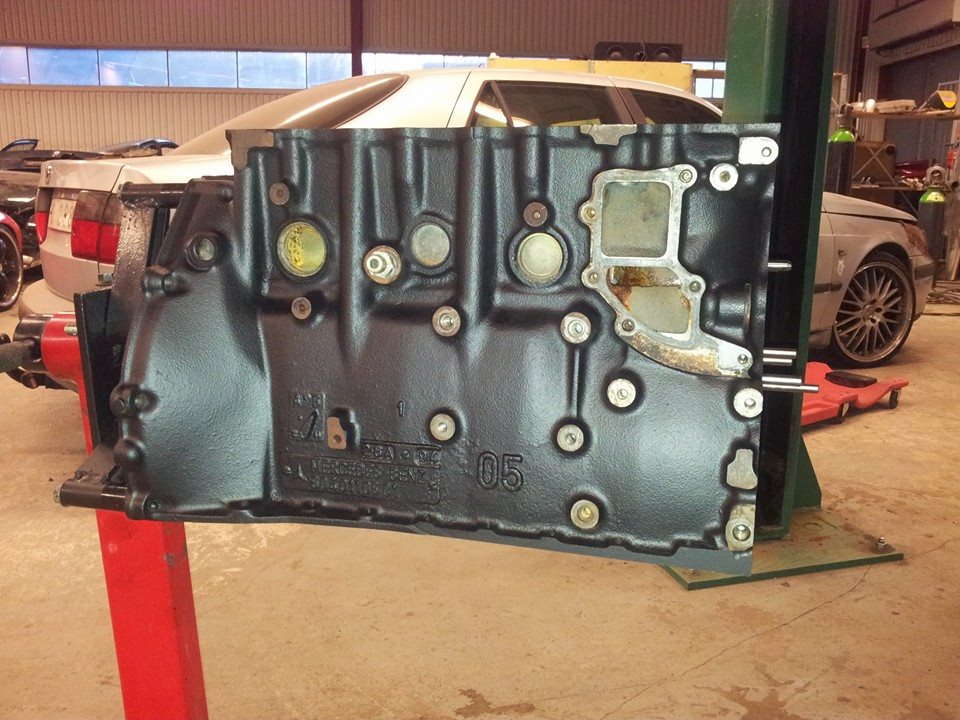

Block sleeved and bored, waiting for honing and top decking.
![[Image: 10945517_10203405275400849_1175735518_n.jpg]](http://www.f-tune.se/wp-content/uploads/2015/02/10945517_10203405275400849_1175735518_n.jpg)
Flywheel done and Sachs 618 PP with Sachs 4-point sinter clutch.
![[Image: 10957591_10203436415859341_1964069754_n.jpg]](http://www.f-tune.se/wp-content/uploads/2015/02/10957591_10203436415859341_1964069754_n.jpg)
F-tune Performance
I can help you out with all your manual transmission, clutch, flywheel, intake and exhaust manifold issues.
Thanks mate. Yes you are correct
(02-04-2015, 11:12 PM)Riverstick Brilliant thread F.R.A.S,
What coating are you putting on the pistons...ceramic on top and Teflon on the sides?
Are you doing any modification to the pre chambers?
Pistons.
Block sleeved and bored, waiting for honing and top decking.
Flywheel done and Sachs 618 PP with Sachs 4-point sinter clutch.
F-tune Performance
I can help you out with all your manual transmission, clutch, flywheel, intake and exhaust manifold issues.
02-07-2015, 12:44 PM
#22
How much per piston?
" It is far easier to get forgiveness rather than permission"
Riverstick
02-07-2015, 12:44 PM #22The coating looks good....I presume they were done in Sweden?
How much per piston?
" It is far easier to get forgiveness rather than permission"
02-07-2015, 01:57 PM
#23
Full coating (skirt and top) is 1000sek/piston. And yea, made in Sweden
The pistons are also machined for more valve clearance before coating.
(02-07-2015, 12:44 PM)Riverstick The coating looks good....I presume they were done in Sweden?
How much per piston?
F-tune Performance
I can help you out with all your manual transmission, clutch, flywheel, intake and exhaust manifold issues.
Thanks, the old om606.962 pistons looks like new
Full coating (skirt and top) is 1000sek/piston. And yea, made in Sweden
The pistons are also machined for more valve clearance before coating.
(02-07-2015, 12:44 PM)Riverstick The coating looks good....I presume they were done in Sweden?
How much per piston?
F-tune Performance
I can help you out with all your manual transmission, clutch, flywheel, intake and exhaust manifold issues.
02-07-2015, 02:39 PM
#24
(02-07-2015, 01:57 PM)F.R.A.S Thanks, the old om606.962 pistons looks like new
Full coating (skirt and top) is 1000sek/piston. And yea, made in Sweden
The pistons are also machined for more valve clearance before coating.
(02-07-2015, 12:44 PM)Riverstick The coating looks good....I presume they were done in Sweden?
How much per piston?
Did you put in bigger vale or just want lower compression ratio?
(02-07-2015, 01:57 PM)F.R.A.S Thanks, the old om606.962 pistons looks like new
Full coating (skirt and top) is 1000sek/piston. And yea, made in Sweden
The pistons are also machined for more valve clearance before coating.
(02-07-2015, 12:44 PM)Riverstick The coating looks good....I presume they were done in Sweden?
How much per piston?
02-07-2015, 05:28 PM
#25
(02-07-2015, 02:39 PM)Turbo Did you put in bigger vale or just want lower compression ratio?
F-tune Performance
I can help you out with all your manual transmission, clutch, flywheel, intake and exhaust manifold issues.
More lift so only took some for clearance.
(02-07-2015, 02:39 PM)Turbo Did you put in bigger vale or just want lower compression ratio?
F-tune Performance
I can help you out with all your manual transmission, clutch, flywheel, intake and exhaust manifold issues.
