FS Toyota OM 617 conversion Brackets and Flywheel Adapter
FS Toyota OM 617 conversion Brackets and Flywheel Adapter
12-21-2014, 02:47 PM
#1

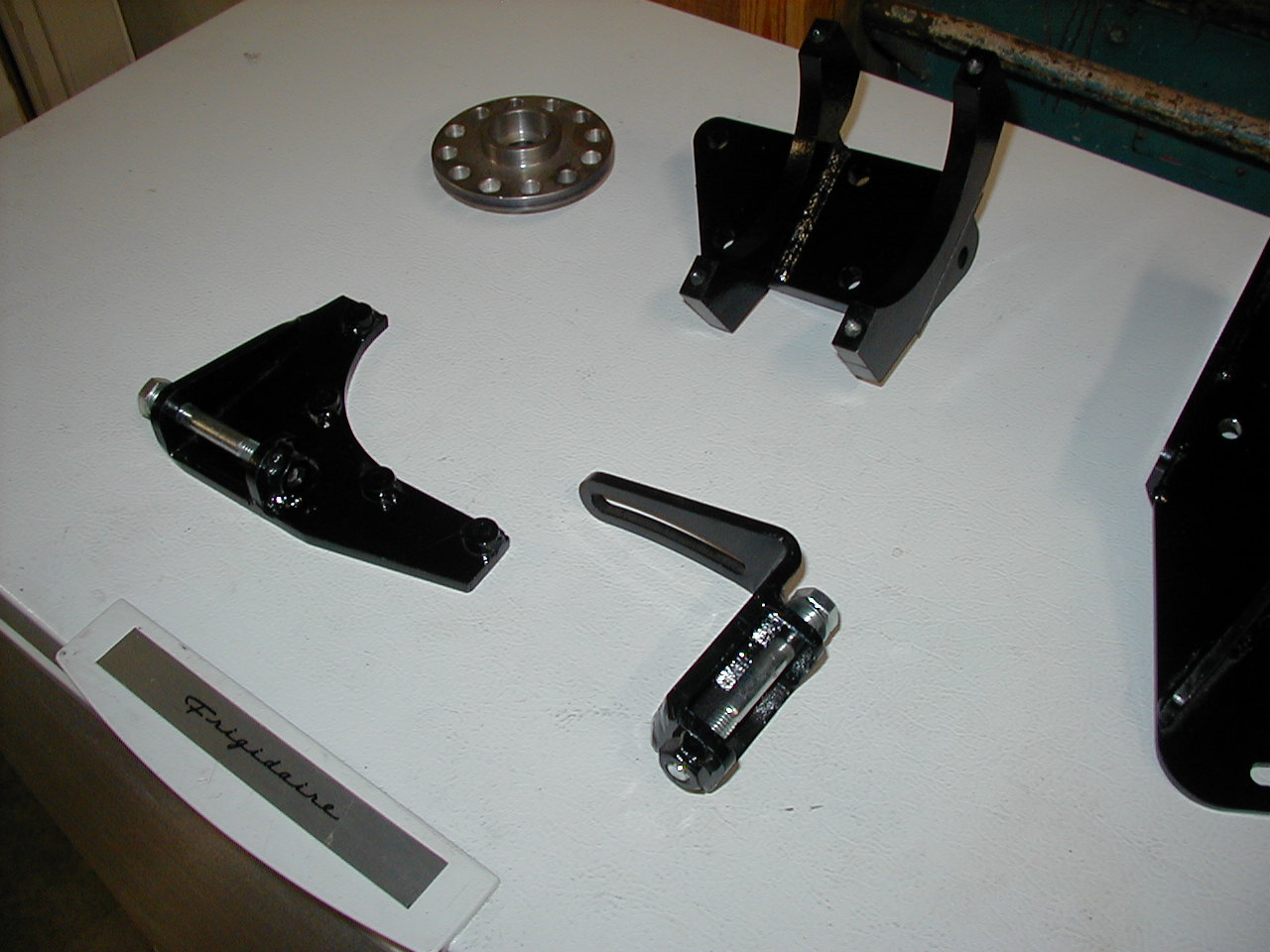

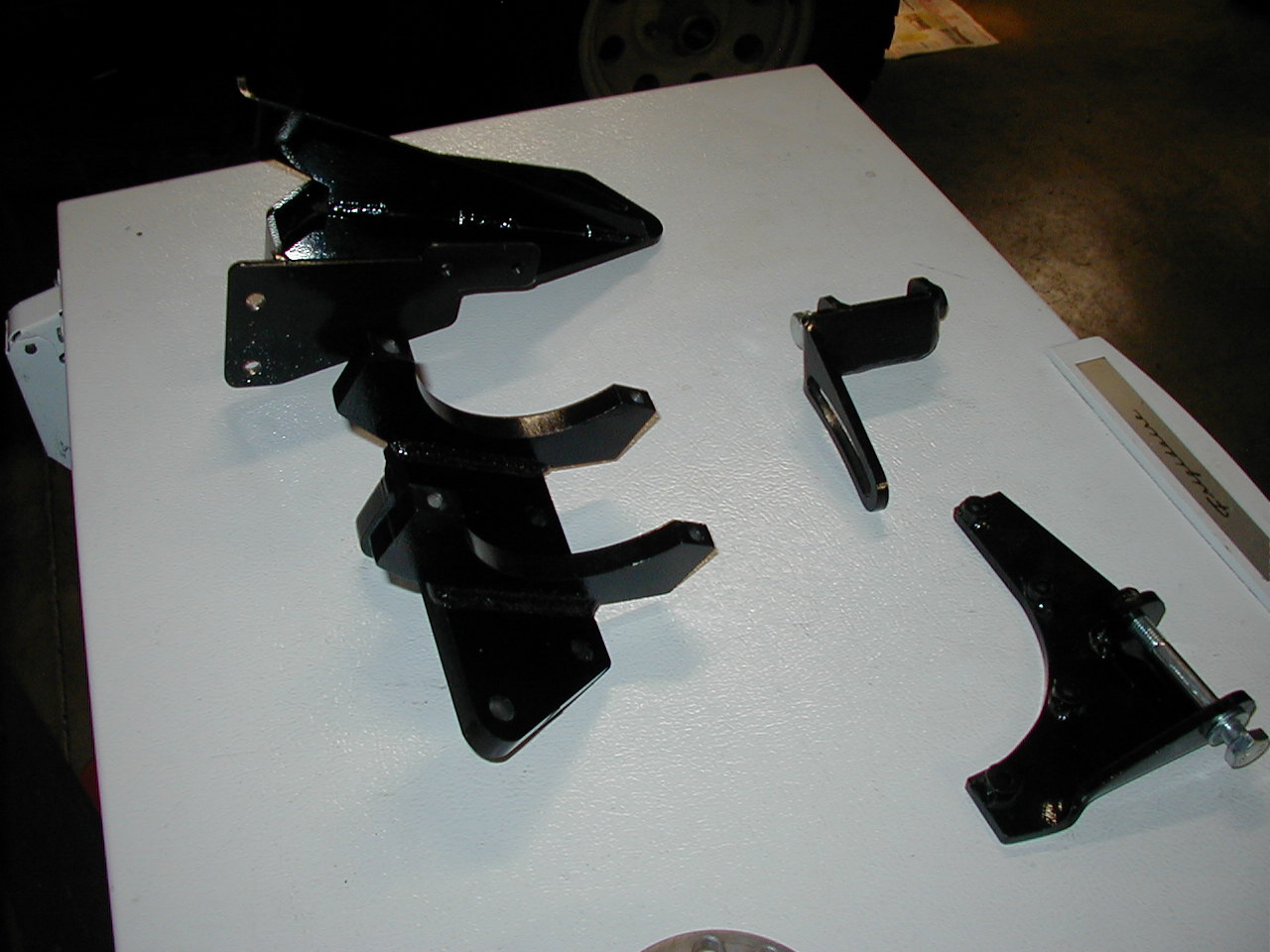

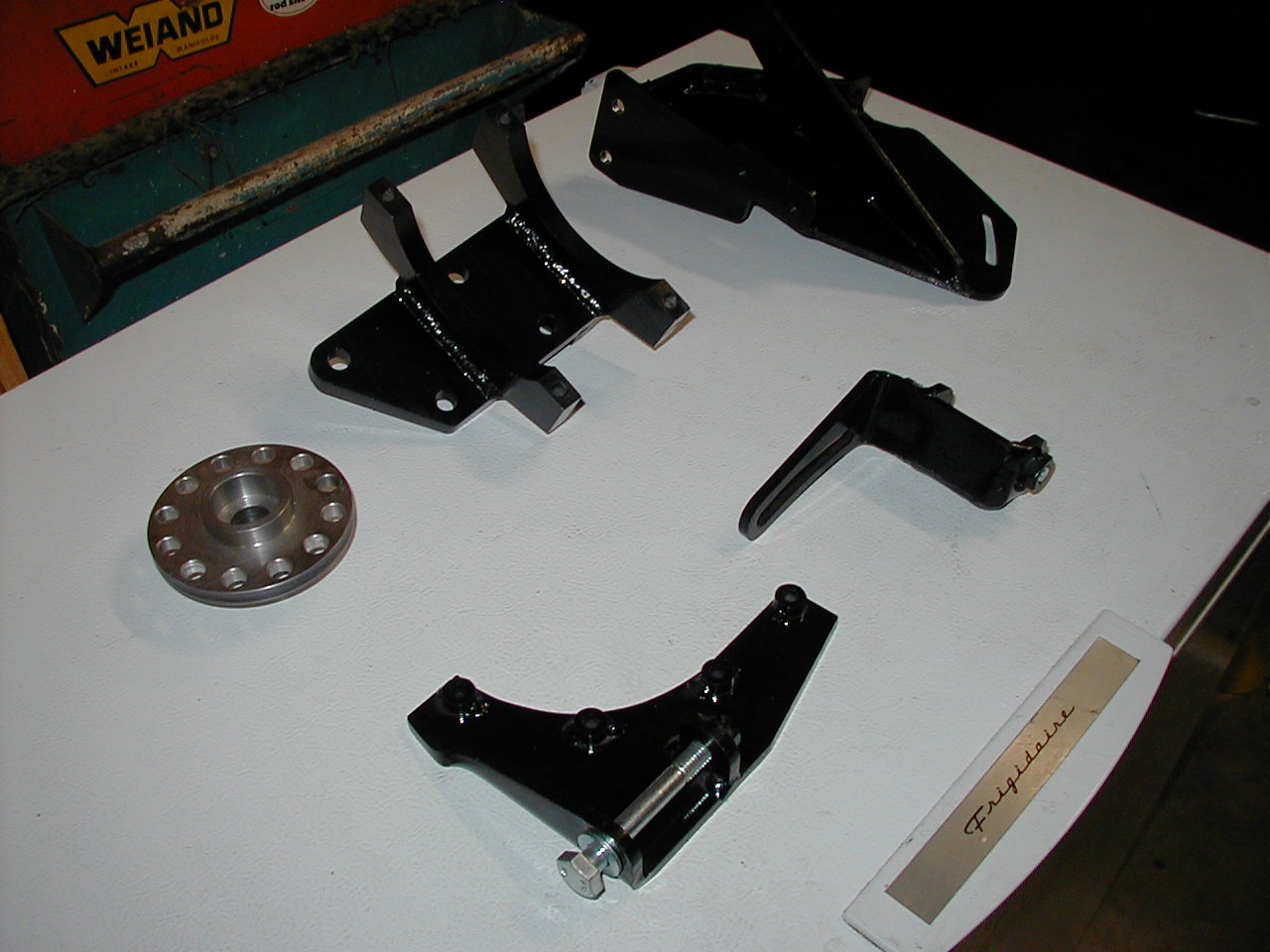

Power steering pump mount that moves the pump back and inch for radiator clearance. A matching bracket that moves a GM alternator to the drivers side and a A/C bracket for the passenger side that uses the Toyota A/C compressor.

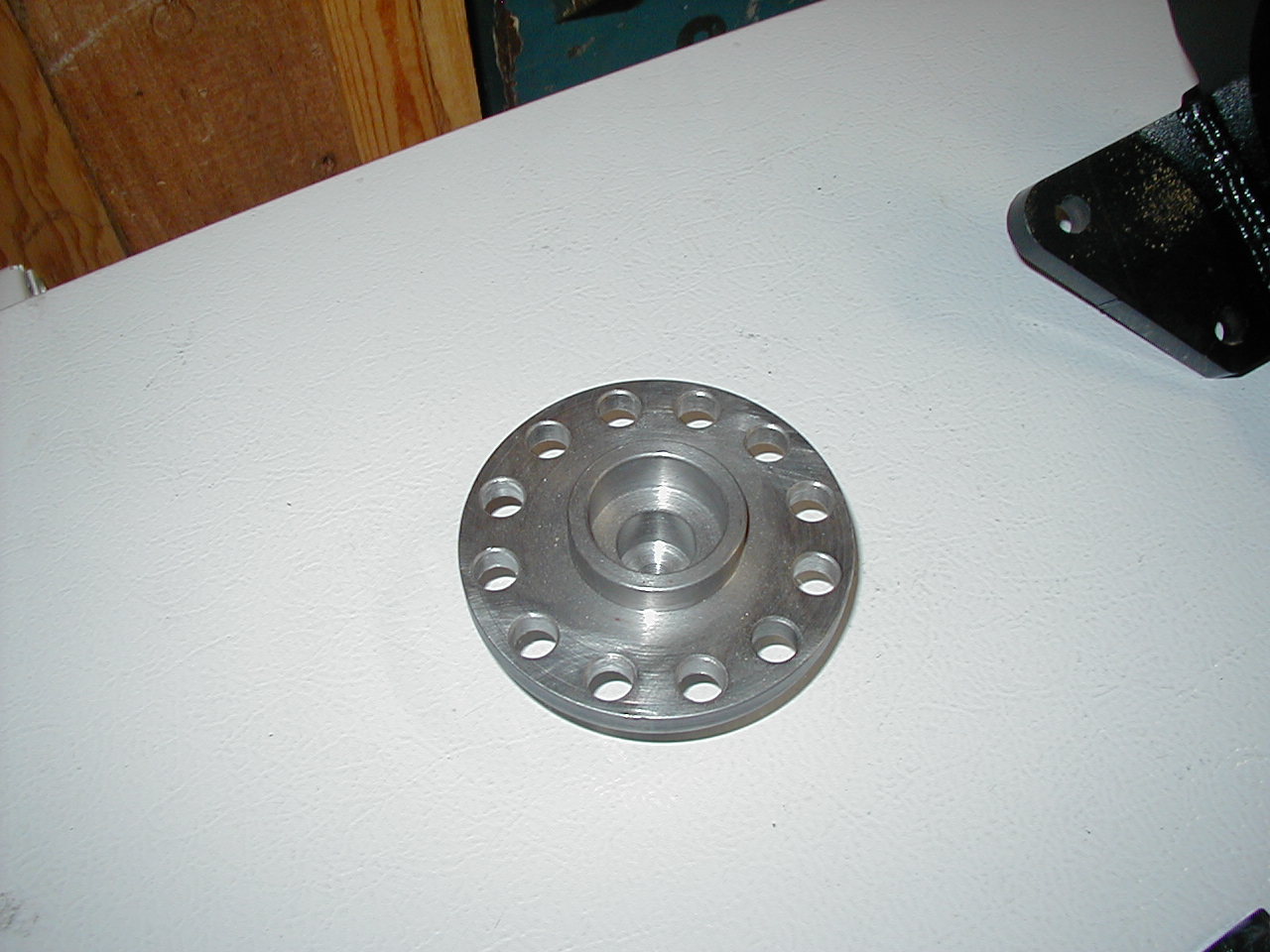

Also a flywheel adapter to adapter to adapt the Toyota flywheel to the Om 617 crankshaft.
$150.00 for all plus shipping. PM me or call or text 208-683-0465 Ask for Ron.
Northwestdieseloffroad.com
Attached Files
Image(s)TD Swaps Toyota truck Om 617 conversion brackets and flywheel adapter.
Power steering pump mount that moves the pump back and inch for radiator clearance. A matching bracket that moves a GM alternator to the drivers side and a A/C bracket for the passenger side that uses the Toyota A/C compressor.
Also a flywheel adapter to adapter to adapt the Toyota flywheel to the Om 617 crankshaft.
$150.00 for all plus shipping. PM me or call or text 208-683-0465 Ask for Ron.
Northwestdieseloffroad.com
Attached Files
Image(s)
12-23-2014, 08:17 PM
#2
(12-21-2014, 02:47 PM)zeeman TD Swaps Toyota truck Om 617 conversion brackets and flywheel adapter.
Power steering pump mount that moves the pump back and inch for radiator clearance. A matching bracket that moves a GM alternator to the drivers side and a A/C bracket for the passenger side that uses the Toyota A/C compressor.
Also a flywheel adapter to adapter to adapt the Toyota flywheel to the Om 617 crankshaft.
$150.00 for all plus shipping. PM me or call or text 208-683-0465 Ask for Ron.
Northwestdieseloffroad.com
W123 Mods: 4 speed ** manual climate control ** '85 Kalitucky intake ** manual windows & full tint ** Euro headlights retrofit w/bixenon projectors ** 4 brake light mod ** Vogtland 50mm drop front & Lesjofors S600 drop rear springs ** 16" rims ** late w126 brake spindles, rotors & calipers ** full suspension rehab ** Bilstein HDs ** AL129X alternator & 1/0 starter and charging cables ** 300GD clutch/flywheel ** AFCO 80103N radiator & Earl's 41610 oil cooler ** custom block-off plate, remote oil filter & t-stat ** MW IP w/ tomnik's 6.5mm 'Holly' elements **
S124 Mods: 400E Rear subframe ** SL600 Brakes ** Late 300E 210mm diff ** SLK230 6 speed ** 17" CLK rims ** Vented RF Fender ** Facelift Hood, Headlights, and Lower Cladding **
OBK# 62
SurfRodder
12-23-2014, 08:17 PM #2How far back does the adapter move the flywheel? Does the om617 starter engage the Toyota flywheel properly? How thick of an adapter plate is it designed for? Is this a one off or are you selling multiple kits? Thanks in advance.
(12-21-2014, 02:47 PM)zeeman TD Swaps Toyota truck Om 617 conversion brackets and flywheel adapter.
Power steering pump mount that moves the pump back and inch for radiator clearance. A matching bracket that moves a GM alternator to the drivers side and a A/C bracket for the passenger side that uses the Toyota A/C compressor.
Also a flywheel adapter to adapter to adapt the Toyota flywheel to the Om 617 crankshaft.
$150.00 for all plus shipping. PM me or call or text 208-683-0465 Ask for Ron.
Northwestdieseloffroad.com
W123 Mods: 4 speed ** manual climate control ** '85 Kalitucky intake ** manual windows & full tint ** Euro headlights retrofit w/bixenon projectors ** 4 brake light mod ** Vogtland 50mm drop front & Lesjofors S600 drop rear springs ** 16" rims ** late w126 brake spindles, rotors & calipers ** full suspension rehab ** Bilstein HDs ** AL129X alternator & 1/0 starter and charging cables ** 300GD clutch/flywheel ** AFCO 80103N radiator & Earl's 41610 oil cooler ** custom block-off plate, remote oil filter & t-stat ** MW IP w/ tomnik's 6.5mm 'Holly' elements **
S124 Mods: 400E Rear subframe ** SL600 Brakes ** Late 300E 210mm diff ** SLK230 6 speed ** 17" CLK rims ** Vented RF Fender ** Facelift Hood, Headlights, and Lower Cladding **
OBK# 62
12-24-2014, 02:13 AM
#3
(12-23-2014, 08:17 PM)SurfRodder How far back does the adapter move the flywheel? Does the om617 starter engage the Toyota flywheel properly? How thick of an adapter plate is it designed for? Is this a one off or are you selling multiple kits? Thanks in advance.
(12-21-2014, 02:47 PM)zeeman TD Swaps Toyota truck Om 617 conversion brackets and flywheel adapter.
Power steering pump mount that moves the pump back and inch for radiator clearance. A matching bracket that moves a GM alternator to the drivers side and a A/C bracket for the passenger side that uses the Toyota A/C compressor.
Also a flywheel adapter to adapter to adapt the Toyota flywheel to the Om 617 crankshaft.
$150.00 for all plus shipping. PM me or call or text 208-683-0465 Ask for Ron.
Northwestdieseloffroad.com
The adapter plate is 1/2" thick, it uses the Toyota flywheel and starter in the stock location. I used a 2kw Tacoma cold weather starter which I adapted for the added torque for the diesel and a turbo 22r flywheel for a bigger clutch which I got from Marvin Crawler.
I ended up using a different radiator so I didn't use the brackets I had purchased and just used the adapter plate. I had an extra flywheel adapter made for a pattern.

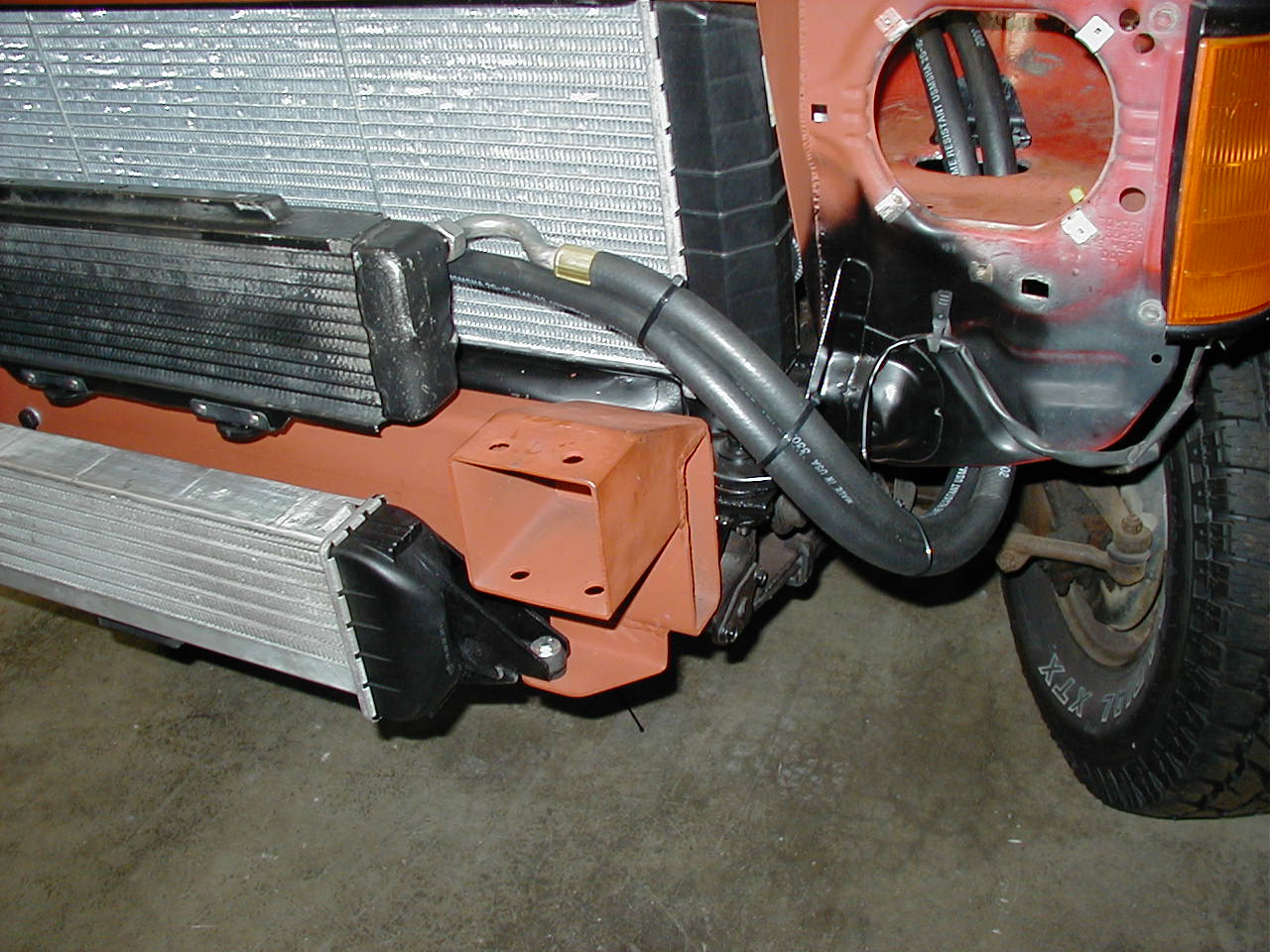

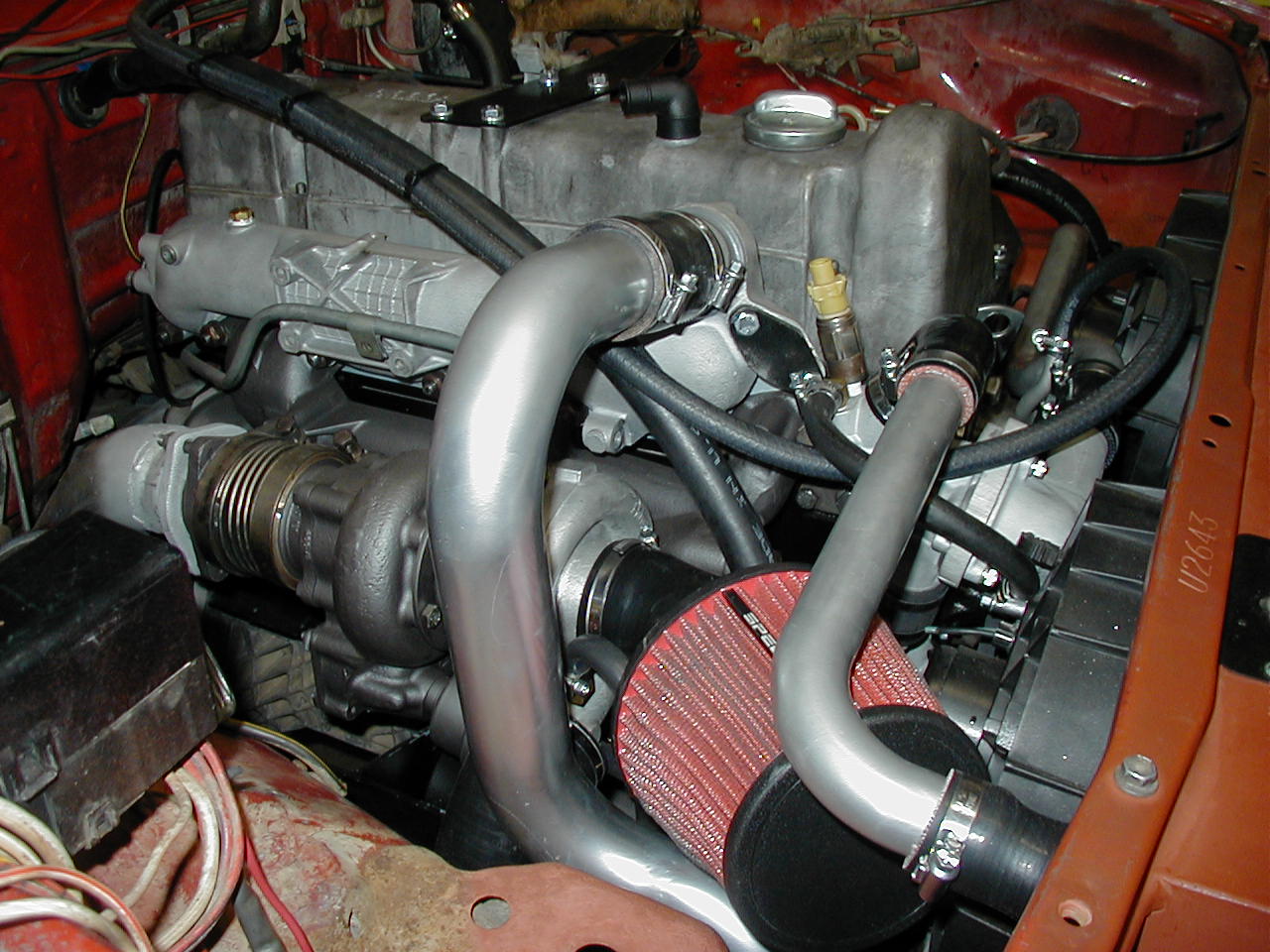

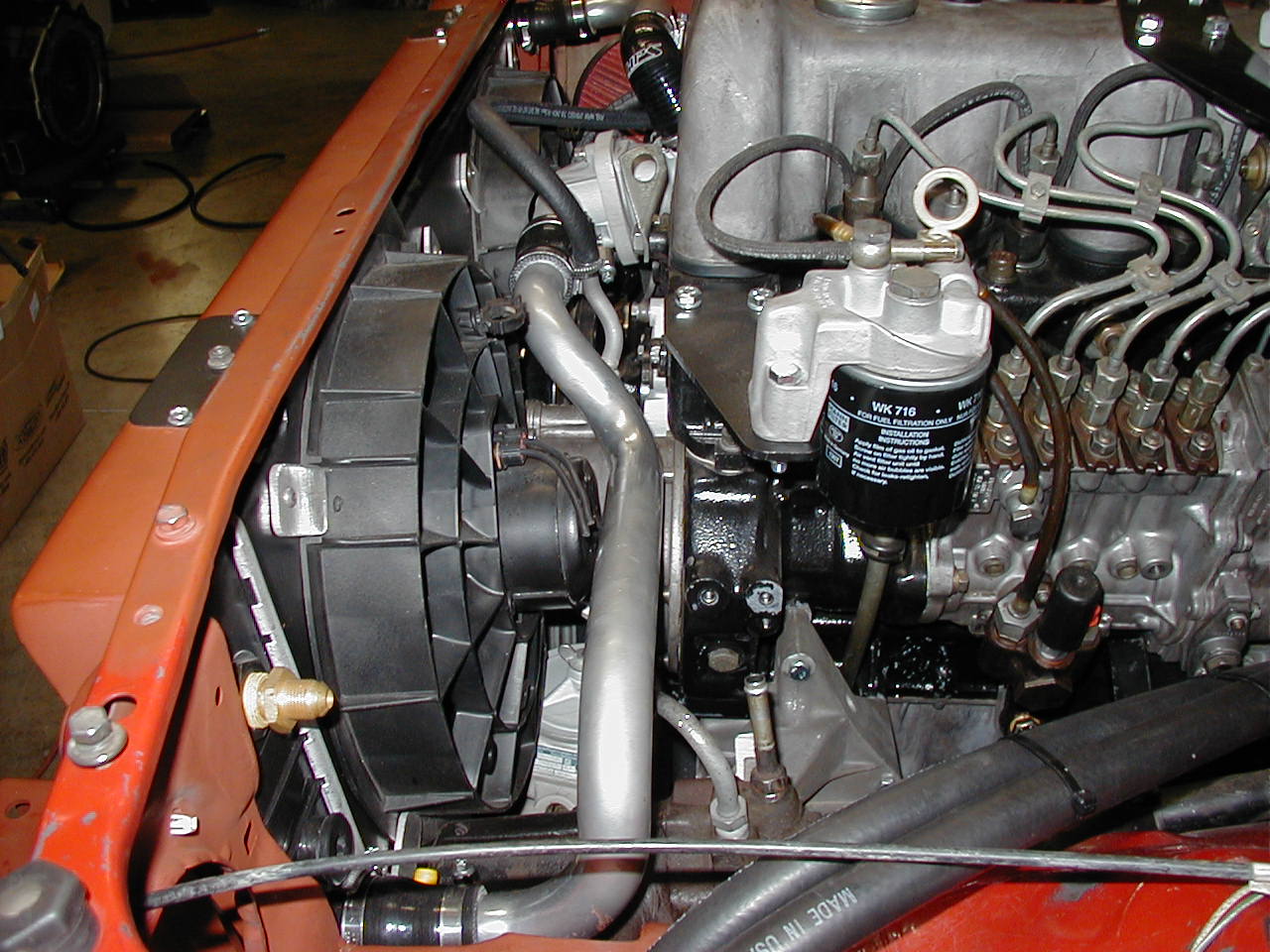

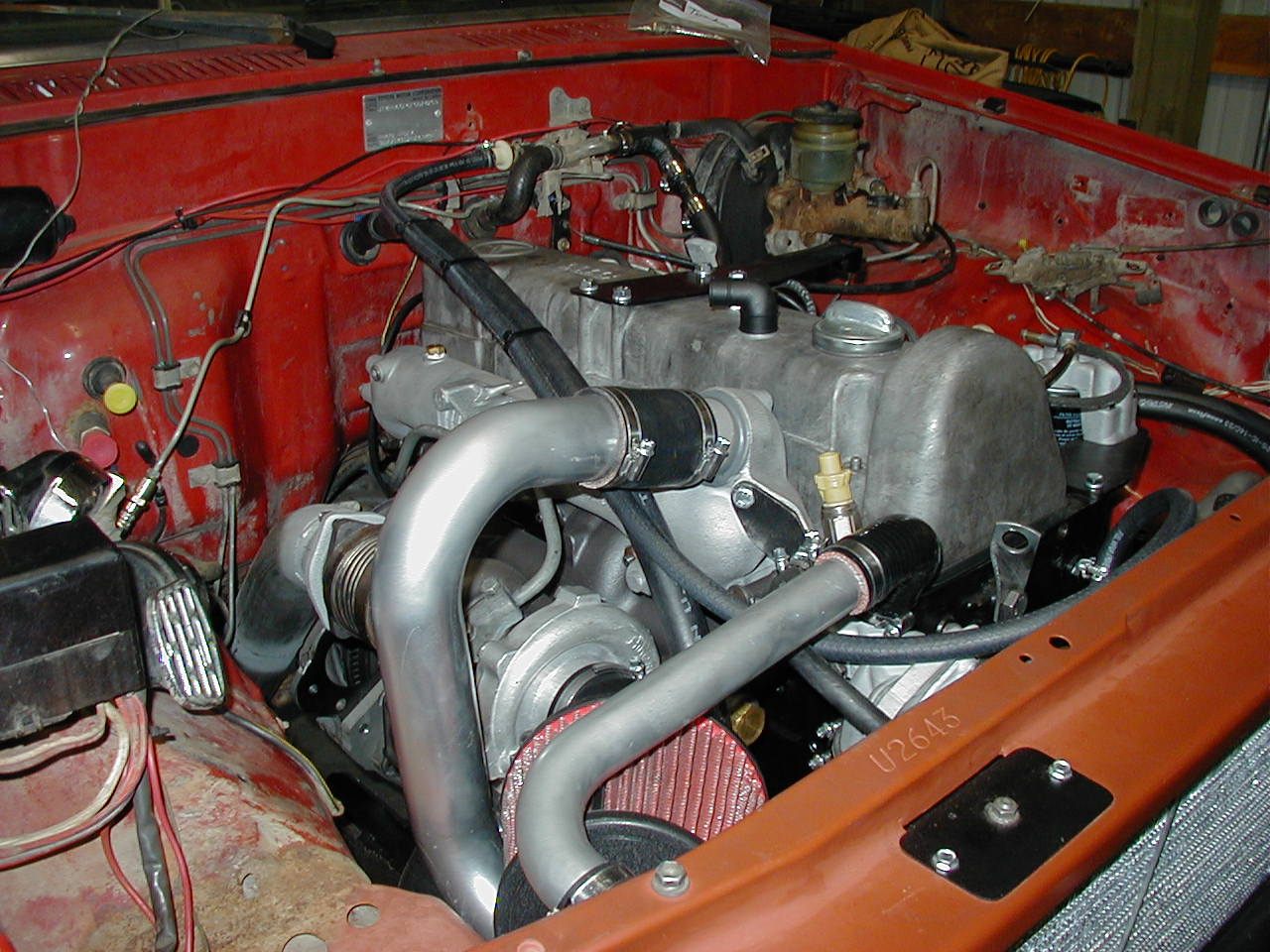

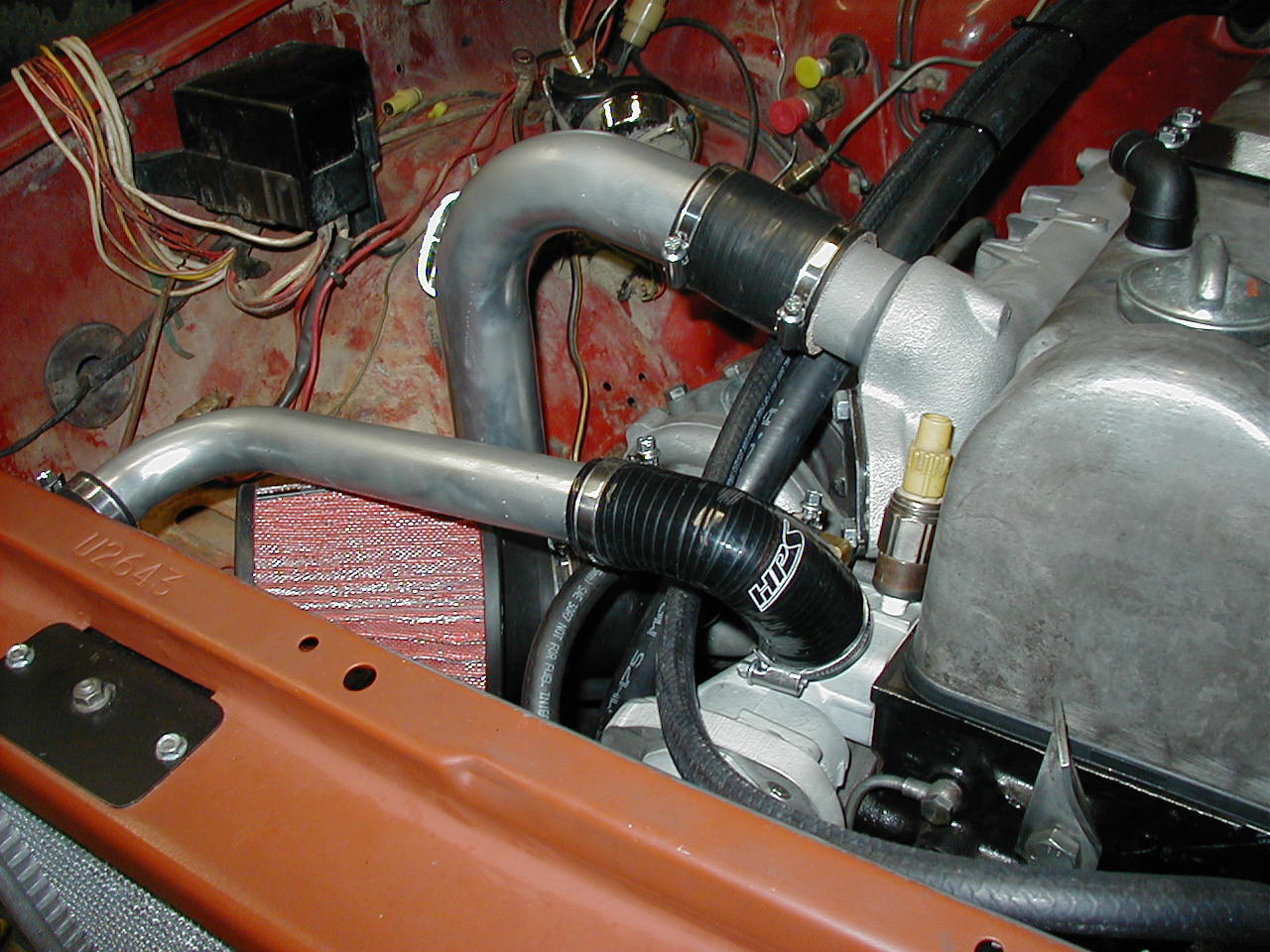

All this was bought from TD Swaps in Portland Oregon. Enclosed are some pics of the Toyota truck I am finishing with an added intercooler.
Attached Files
Image(s)(12-23-2014, 08:17 PM)SurfRodder How far back does the adapter move the flywheel? Does the om617 starter engage the Toyota flywheel properly? How thick of an adapter plate is it designed for? Is this a one off or are you selling multiple kits? Thanks in advance.
(12-21-2014, 02:47 PM)zeeman TD Swaps Toyota truck Om 617 conversion brackets and flywheel adapter.
Power steering pump mount that moves the pump back and inch for radiator clearance. A matching bracket that moves a GM alternator to the drivers side and a A/C bracket for the passenger side that uses the Toyota A/C compressor.
Also a flywheel adapter to adapter to adapt the Toyota flywheel to the Om 617 crankshaft.
$150.00 for all plus shipping. PM me or call or text 208-683-0465 Ask for Ron.
Northwestdieseloffroad.com
The adapter plate is 1/2" thick, it uses the Toyota flywheel and starter in the stock location. I used a 2kw Tacoma cold weather starter which I adapted for the added torque for the diesel and a turbo 22r flywheel for a bigger clutch which I got from Marvin Crawler.
I ended up using a different radiator so I didn't use the brackets I had purchased and just used the adapter plate. I had an extra flywheel adapter made for a pattern.
All this was bought from TD Swaps in Portland Oregon. Enclosed are some pics of the Toyota truck I am finishing with an added intercooler.
