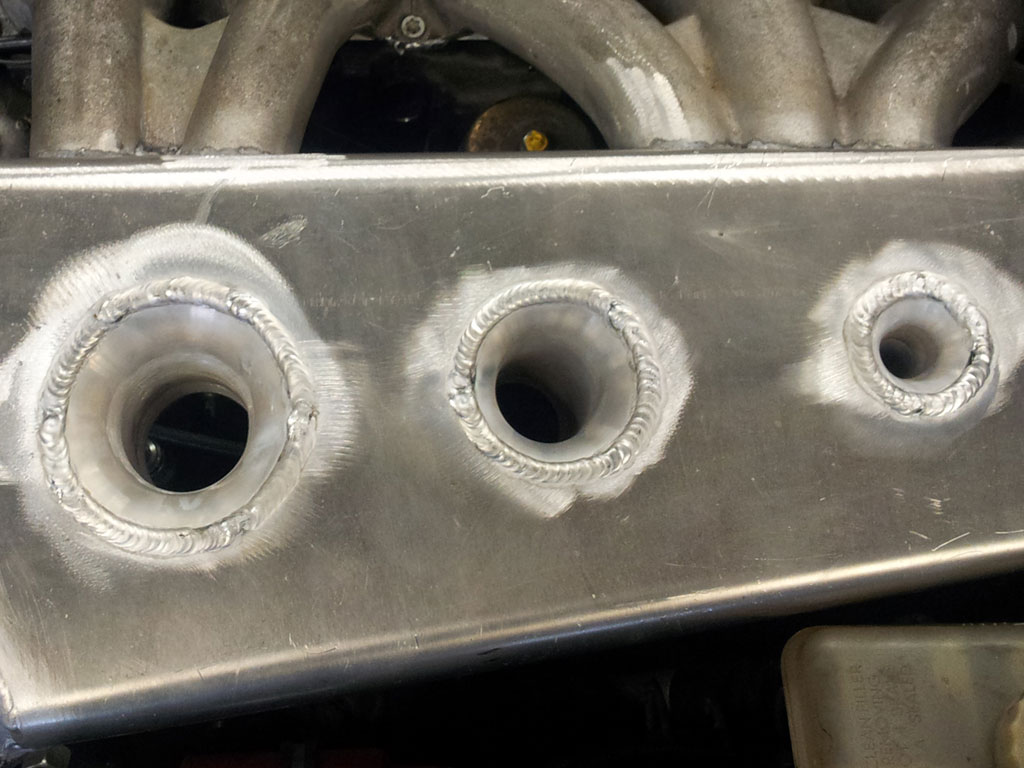

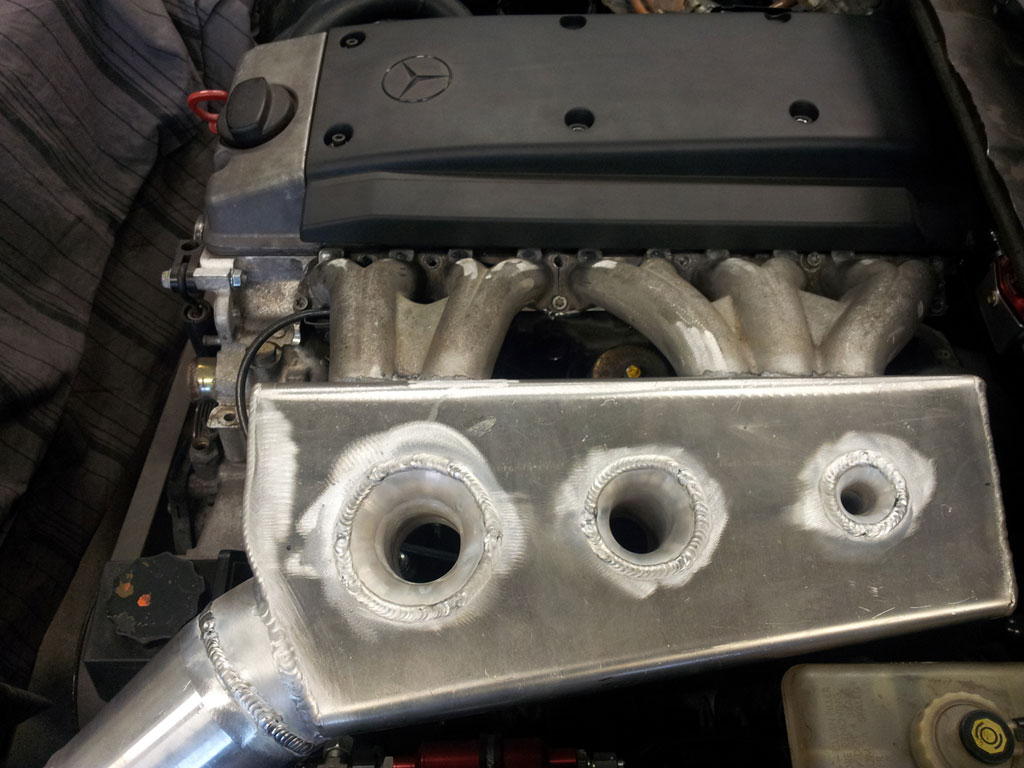

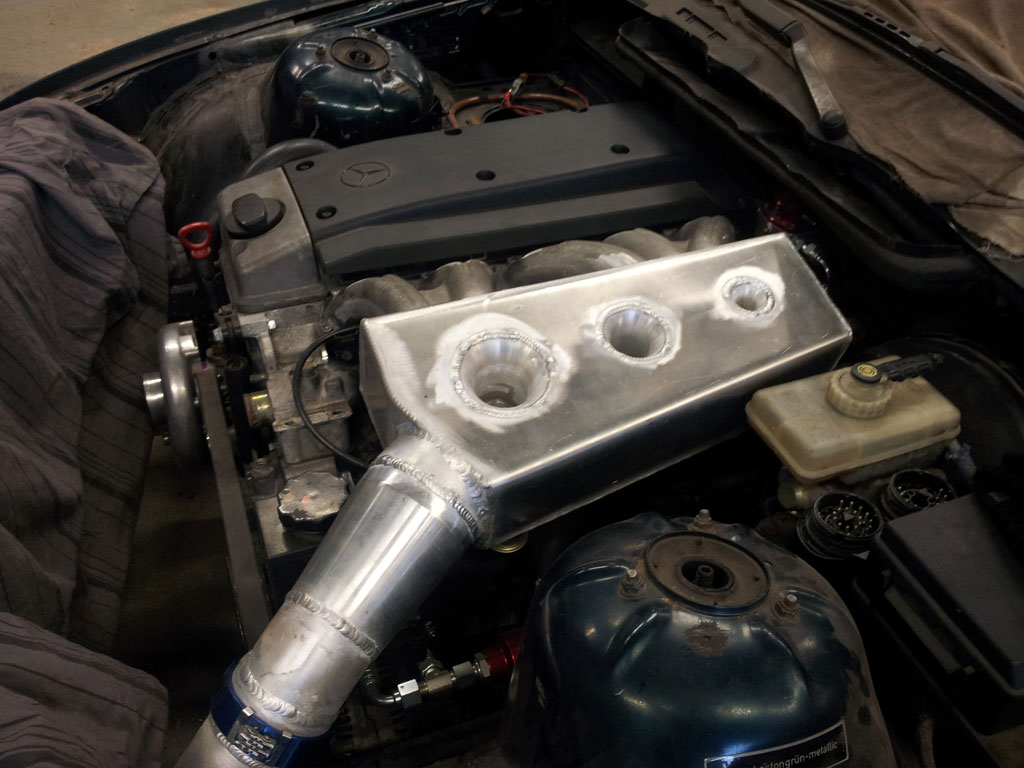

As you can see the manifold is ready as far as welding and fabrication. Now we gonna blaster it and paint it so it gets a nice even surface.
And yea, the cones are all the way through. The cones are cnc-machined!
Even inside the manifold there are some bits and tricks, but some of that is secret so I have no good photos of the fabrication
