I recently found a 1980 200D for sale with a manual transmission. My thinking is to swap the five cylinder turbo from my 300TD for the four cylinder from the 200D. The 200D is a W123 chassis so will the motors bolt to the other car with relative ease? I know that Forced has a 3.0 in his 240D so I'm hoping the same logic will apply to a 200D. I know that an engine swap is no small feat, but will it (for the most part) be a direct swap?

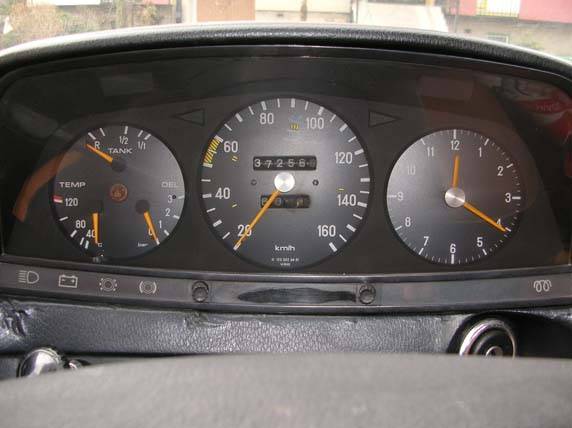

The OM615 is dimensionally the same as a 616 so the swap process would be the same, except a 200D should have a "Gorilla Knob" on the dash (Partially seen in the lower left of the first picture) to control the glowplugs and starter.
ForcedInduction
07-18-2009, 03:11 PM
#2
Are you in Europe? If you're in the USA and the W123 200D is functional, it would be much more valuable and rare as-is.
The OM615 is dimensionally the same as a 616 so the swap process would be the same, except a 200D should have a "Gorilla Knob" on the dash (Partially seen in the lower left of the first picture) to control the glowplugs and starter.
Will the turbo 617 fit into the 200D? The transmissions will fit if I switch the flywheels, right? I seem to remember to hear something about swapping the front springs as well.
What do you think?
I'm in Flint Michigan. The current owner says that it is more of a "project car", so I assume it would take some very significant funds to restore it to "rare classic car status." The guy is asking $600. I was hoping to swap the 617 turbo motor from my parts 300TD and utilize the manual transmission on the 200D. I would put the 615 in the TD so I would be able to move it under its own power, just VERY slowly.
Will the turbo 617 fit into the 200D? The transmissions will fit if I switch the flywheels, right? I seem to remember to hear something about swapping the front springs as well.
What do you think?
The flywheel will be a little light but it will work fine and you'll have to cut the driveshaft 4" shorter as you would with a 240d.
ForcedInduction
07-18-2009, 04:40 PM
#4
It will fit. Its pretty much the same as a 240D swap except for having to deal with the gorilla knob.
The flywheel will be a little light but it will work fine and you'll have to cut the driveshaft 4" shorter as you would with a 240d.
The driveshaft and shifter linkages must be shortened by 4". The crossmember can be modified to work or one from an automatic 240D can have the proper holes drilled into it.
ForcedInduction
07-20-2009, 08:48 PM
#7
Search the various forums for swap guides. It has been done many times before and is detailed quite well.
The driveshaft and shifter linkages must be shortened by 4". The crossmember can be modified to work or one from an automatic 240D can have the proper holes drilled into it.
(07-20-2009, 08:48 PM)ForcedInduction Search the various forums for swap guides. It has been done many times before and is detailed quite well.the 240d auto xmember is the right one, no holes required.
The driveshaft and shifter linkages must be shortened by 4". The crossmember can be modified to work or one from an automatic 240D can have the proper holes drilled into it.
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
(07-20-2009, 08:48 PM)ForcedInduction Search the various forums for swap guides. It has been done many times before and is detailed quite well.the 240d auto xmember is the right one, no holes required.
The driveshaft and shifter linkages must be shortened by 4". The crossmember can be modified to work or one from an automatic 240D can have the proper holes drilled into it.
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
(07-21-2009, 04:37 AM)winmutt the 240d auto xmember is the right one, no holes required.
Not quite. The holes for the 240D auto and 300D manual are not in the same location.

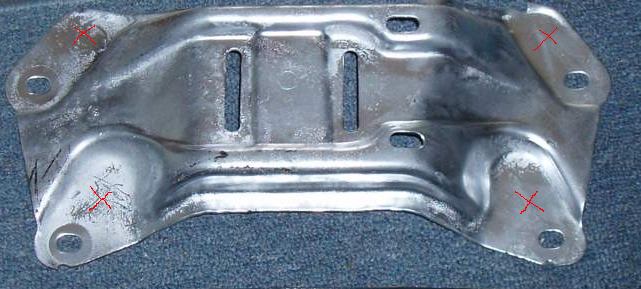

This is a genuine 300D 4M crossmember, the 240D auto hole locations are marked in red.
ForcedInduction
07-21-2009, 05:57 AM
#9
(07-21-2009, 04:37 AM)winmutt the 240d auto xmember is the right one, no holes required.
Not quite. The holes for the 240D auto and 300D manual are not in the same location.
This is a genuine 300D 4M crossmember, the 240D auto hole locations are marked in red.
