benzamino design ideas
JB3 Offline
Superturbo
*****


Posts: 1,795
Joined: Apr 2009
Location: CNY / RI
#1
benzamino design ideas
Im getting kinda tired of my 240 as a boring sedan and placing sharp objects on the back seat.

Im seriously considering making a benzamino out of it eventually

The one twist is I want to make a mini flatbed instead of a full on 'amino idea.

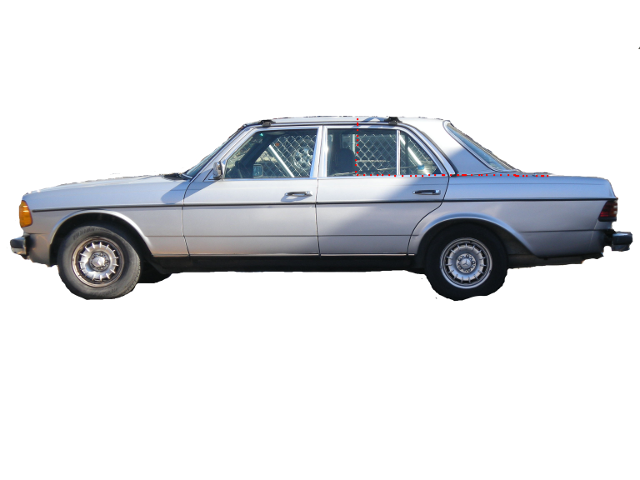

This is the car stock-

.png   240stockroof.png (Size: 129.25 KB / Downloads: 549)

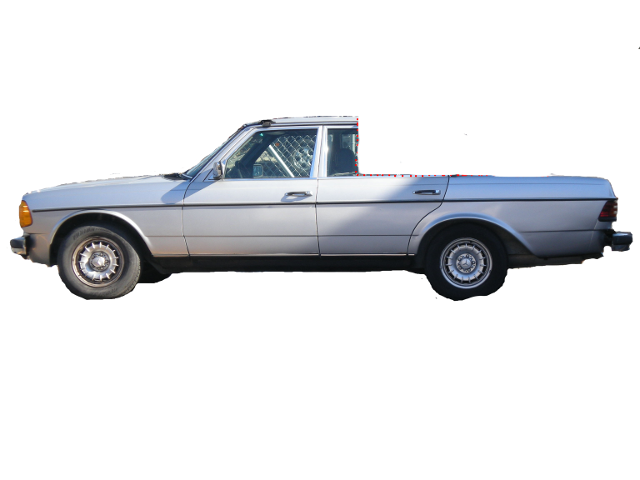

it seems like the most typical benzamino cut is here, they go for this cut line and do something with the roof to close it off-


.png   240imino1.png (Size: 113.69 KB / Downloads: 557)

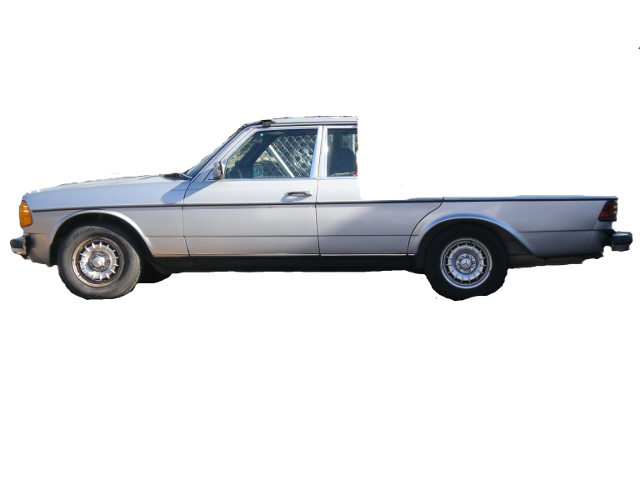

what im thinking of is making the cut lower, on the trim line instead-


.png   240amino2.png (Size: 105.79 KB / Downloads: 479)

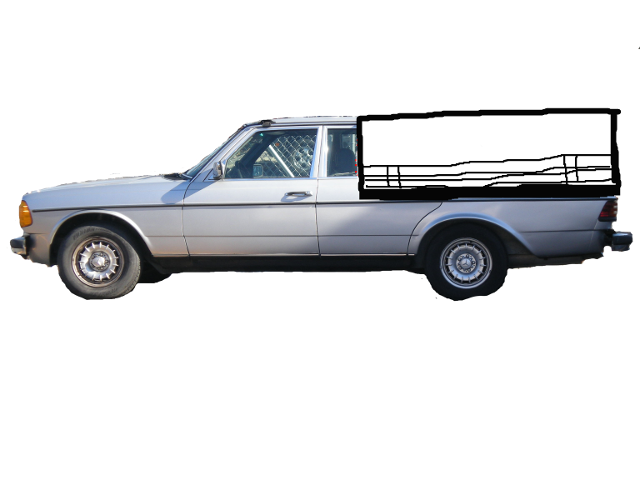

and building a flatbed and pipe structure that provides structure for the car, as well as something to build into a ladder rack of some kind. Sort of anchored at the front and back, and going into the cabin structure. Then I would make short aluminum or wood stakebody sides for it, and leave the pipe surround open in the back, so taller items can be loaded if need be. Nothing heavy, just to preserve the utility-


.png   240amino3.png (Size: 110.16 KB / Downloads: 524)

what do you all think of the idea? The biggest two issues I can see so far are-
1- keeping it from bending during the cut in the first place, before the flatbed, roll bars/rack, and back wall are complete
and 2- filling the fuel tank, which I propose to move up to behind the driver and passenger seats, with the fill right behind the passenger door, old chevy truck style
1974 240D 617 turbo swap, W201 5-speed, in the works project
1983 240D 616 stock, DD
1989 Chevy Astro, 617 turbo swap, T5 5-speed, 4.56 diff, work van

01-15-2014, 01:44 PM
Find Reply
larsalan Offline
Superturbo
*****


Posts: 1,272
Joined: Sep 2010
Location: B-Town, IN
#2
RE: benzamino design ideas
I was just thinking I might someday do this to my 123. I bet you could leave the whole roof. Just take out
* back window
* back seat, and backrest
* trunk lid
* fuel tank.

Then there would be a bit of cutting between the trunk area and backseat area. You might end up with a super cab instead of a standard cab.
And some amount of the roof would cover the front bit of the bed.

Also, I have cut a 123 in half with an abrasive disc. Even after lots of structure was removed it was still holding it's shape well in the driveway. So, I doubt you'll break it under just its own weight. More so worry about the 'long' term integrity.
Rusted out beat down 300d turbo 82' -- RIP
Nice body, tons of ridiculous mechanical issues - 300d turbo 82' /motor 85'
01-15-2014, 04:04 PM
Find Reply
sassparilla_kid Offline
diesel > all other fuels
*****


Posts: 1,618
Joined: Oct 2011
Location: Fresno, California
#3
RE: benzamino design ideas
-1982 300D Turbo, 280k miles, ALDA apparently maxxed, fram 8038, 12 lbs boost, non-egr manifolds, W/M injection, 4 brake light mod, Gen II w126 front rotors/calipers, 4-speed swap
In the works: A/W IC, adjust pump, turbo rebuild (w/60 trim comp wheel)
-1980 300SD, 110k, project car. Goal is to get it lookin' like it did on the showroom floor (body and interior wise, not necessarily under the hood )
-1974 240D, FRESH PAINT!!!!!!
01-15-2014, 04:04 PM
Find Reply
Simpler=Better Offline
PORTED HEAD
*****


Posts: 2,127
Joined: Jul 2008
Location: Baltimore, MD
#4
RE: benzamino design ideas
Newbie-read this: Cheap Tricks
617.952-220k-Getting built up
larsalan Wrote:I guess I need to look at this stupid ass drip shit. What you have to like mess with those elements on the pump? What a fucking hassle. then use some wire to hold the throttle open or some shit?
01-15-2014, 04:43 PM
Find Reply
JB3 Offline
Superturbo
*****


Posts: 1,795
Joined: Apr 2009
Location: CNY / RI
#5
RE: benzamino design ideas
awesome, awesome, and awesome.

I have now seen what welding in a rusty door will ultimately do, a flatbed cut right around where I want to cut mine, and a genius idea leaving the lower part of the rear doors openable for storage!

Thanks for the links! some really nice solutions and some really horrendous warnings!
1974 240D 617 turbo swap, W201 5-speed, in the works project
1983 240D 616 stock, DD
1989 Chevy Astro, 617 turbo swap, T5 5-speed, 4.56 diff, work van

01-15-2014, 04:52 PM
Find Reply
Simpler=Better Offline
PORTED HEAD
*****


Posts: 2,127
Joined: Jul 2008
Location: Baltimore, MD
#6
RE: benzamino design ideas
Yeah if you weld the doors skin them first.

I'd love a compact coupe, basically cut a 300D down and then cut some out of the trunk, maybe push the grille back and run a turbo 616....
Newbie-read this: Cheap Tricks
617.952-220k-Getting built up
larsalan Wrote:I guess I need to look at this stupid ass drip shit. What you have to like mess with those elements on the pump? What a fucking hassle. then use some wire to hold the throttle open or some shit?
01-15-2014, 08:36 PM
Find Reply
JB3 Offline
Superturbo
*****


Posts: 1,795
Joined: Apr 2009
Location: CNY / RI
#7
RE: benzamino design ideas
(01-15-2014, 08:36 PM)Simpler=Better Wrote: Yeah if you weld the doors skin them first.

I'd love a compact coupe, basically cut a 300D down and then cut some out of the trunk, maybe push the grille back and run a turbo 616....

We have similar daydreams, though I envision a two door short wagon, kinda a 123 chassis fastback
1974 240D 617 turbo swap, W201 5-speed, in the works project
1983 240D 616 stock, DD
1989 Chevy Astro, 617 turbo swap, T5 5-speed, 4.56 diff, work van

01-15-2014, 10:10 PM
Find Reply
EmJay Offline
Holset
****


Posts: 299
Joined: Sep 2013
Location: Roswell
#8
RE: benzamino design ideas
do ett!
01-15-2014, 10:38 PM
Find Reply
Sami/B Offline
K26-2
*


Posts: 25
Joined: Jan 2014
Location: Sweden
#9
RE: benzamino design ideas
autch. Looks like a "epa" (Registered as a Tractor. max. 30km/h, on two gears forward)

[Image: 396957_vivbok.jpg]
[Image: 396959_7t3ue7.jpg]
[Image: 613392676.jpg]
[Image: s4021789.jpg]
01-23-2014, 11:01 AM
Find Reply
Eric78 Offline
GT2559V
***


Posts: 190
Joined: Feb 2013
Location: Australia
#10
RE: benzamino design ideas
(01-15-2014, 04:43 PM)Simpler=Better Wrote: [Image: 3371851685_3a3be436df.jpg]

That to me looks like a w115 factory Pick-up with a w123 front end put on it.

As rare & pricey(in Australia anyway) as a w115 pick-up is, it might still be the cheaper & easier option to buy one of those & then put the w123 front end on it.
(This post was last modified: 01-26-2014, 09:44 PM by Eric78.)
01-26-2014, 08:41 PM
Find Reply
JB3 Offline
Superturbo
*****


Posts: 1,795
Joined: Apr 2009
Location: CNY / RI
#11
RE: benzamino design ideas
(01-26-2014, 08:41 PM)Eric78 Wrote: That to me looks like a w115 factory Pick-up with a w123 front end put on it.

As rare & pricey(in Australia anyway) as a w115 pick-up is, it might still be the cheaper & easier option to buy one of those & then put the w123 front end on it.

wheres the fun in that? Big Grin

also it would cost a fortune to get one of those in the US. As far as I know, none of those were imported.

whereas there are plenty of rusty sedans, and lots of angle grinders.....
1974 240D 617 turbo swap, W201 5-speed, in the works project
1983 240D 616 stock, DD
1989 Chevy Astro, 617 turbo swap, T5 5-speed, 4.56 diff, work van

03-31-2014, 12:25 PM
Find Reply
Eric78 Offline
GT2559V
***


Posts: 190
Joined: Feb 2013
Location: Australia
#12
RE: benzamino design ideas
(03-31-2014, 12:25 PM)JB3 Wrote: also it would cost a fortune to get one of those in the US. As far as I know, none of those were imported.
They're about $10,000 - $14,000 here, Wikipedia & most internet sources say they were only built in Argentina & are all 220Ds but all the ones in Australia are six cylinder Petrol, the w114/115 series was being assembled at Port Melbourne for the Australian market so I suspect that we were probably also manufacturing the pick-ups but I can't find any source to back this up.
04-04-2014, 12:13 AM
Find Reply
Austincarnut Offline
Holset
****


Posts: 279
Joined: Jun 2012
Location: USA
#13
hurry before its gone!
04-06-2014, 03:00 PM
Find Reply
DanielK Offline
Big Plans, No Clue
**


Posts: 98
Joined: Jul 2010
Location: Houston
#14
RE: benzamino design ideas
That's hideous! I want it.
[Image: FalkonSig.png]
04-24-2014, 08:59 PM
Find Reply
Dark Hawk Offline
TA 0301
**


Posts: 50
Joined: Dec 2015
Location: Cedar Rapids, IA
#15
RE: benzamino design ideas
I know that I am bumping an old thread.

I too am thinking about doing an ugly ghetto benzamino out of my w116. The issue I am having is what to do with the fuel tank. What should I do about the hardlines and mounting?
1984 300d 132k restormod project in the works
1985 300td 300k $600 off road adventure project
1999 land cruiser  235k, 33" mud tires, off road, towing, hauler
04-25-2016, 10:57 PM
Find Reply
EmJay Offline
Holset
****


Posts: 299
Joined: Sep 2013
Location: Roswell
#16
RE: benzamino design ideas
Beer keg fuel cell
1987 Mazda B2200 "outlaw" **planning phase**  Chevy 283, Power Pack heads, Edelbrock carb and intake, turbo 350 trans Smile
1985 Mercedes 300D stock for now
04-29-2016, 10:38 AM
Find Reply
Dark Hawk Offline
TA 0301
**


Posts: 50
Joined: Dec 2015
Location: Cedar Rapids, IA
#17
RE: benzamino design ideas
I thought about doing that with a toyota trail truck build, it's more of an issue of not owning an AC tig welder. I don't think it will be hard mounting the facorty tank further forward, cutting a hole in the floor, and clamping the hoses to the short end hardlinrs. That's all it should take right?
1984 300d 132k restormod project in the works
1985 300td 300k $600 off road adventure project
1999 land cruiser  235k, 33" mud tires, off road, towing, hauler
04-30-2016, 09:16 AM
Find Reply
EmJay Offline
Holset
****


Posts: 299
Joined: Sep 2013
Location: Roswell
#18
RE: benzamino design ideas
I'm making a fuel cell out of a beer keg for my Mazda.  I own a 100a 115v welder, stainless wire and argon shielding gas.  It's almost like welding mild steel with gas, not too different.  You only need a TIG welder if it's going to be food related (ie brewing beer or an illegal still)
1987 Mazda B2200 "outlaw" **planning phase**  Chevy 283, Power Pack heads, Edelbrock carb and intake, turbo 350 trans Smile
1985 Mercedes 300D stock for now
(This post was last modified: 04-30-2016, 08:02 PM by EmJay.)
04-30-2016, 08:00 PM
Find Reply
Dark Hawk Offline
TA 0301
**


Posts: 50
Joined: Dec 2015
Location: Cedar Rapids, IA
#19
RE: benzamino design ideas
I still think I'm going to just end up using the factory tank. Aside from that where and how would be the best way to reinforce the chassis? This being that the car is unibody.
1984 300d 132k restormod project in the works
1985 300td 300k $600 off road adventure project
1999 land cruiser  235k, 33" mud tires, off road, towing, hauler
05-02-2016, 07:53 AM
Find Reply
