Big brake kit
HaavardPYA Offline
GT2559V
***


Posts: 189
Joined: Sep 2012
Location: Surnadal, Norway
#1
Big brake kit
Anyone know if there are any other budget big brakes than the R129 334mm brembo kit that fits the w124? Know some s-class brakes fit, but the iron callippers are so heavy. Dont want to att lots of unsprung weight. Any experience on StopTech? Pricey..
06-11-2013, 04:01 PM
Find Reply
SurfRodder Offline
Jackass Extraordinaire
****


Posts: 590
Joined: May 2009
Location: PNW
#2
RE: Big brake kit
(06-11-2013, 04:01 PM)HaavardPYA Wrote: Anyone know if there are any other budget big brakes than the R129 334mm brembo kit that fits the w124? Know some s-class brakes fit, but the iron callippers are so heavy. Dont want to att lots of unsprung weight. Any experience on StopTech? Pricey..

Stoptech makes a good brake... used those on another platform before...I really like the fact that they provide paper cutouts that you can print from home and mock up on your car and fit inside wour wheels to see if their brakes will fit.

definitely pretty pricey tho...
W123 Mods: 4 speed ** AN braided hoses/lines almost everywhere ** powder coated valve cover ** manual climate control ** better stereo ** '85 Kalitucky intake ** manual windows & full tint ** Euro headlights retrofit w/bixenon projectors ** 4 brake light mod ** Vogtland 50mm drop front & Lesjofors S600 drop rear springs ** 16" rims ** late w126 brake spindles, rotors & calipers ** full suspension rehab ** Bilstein HDs ** AL129X alternator & 1/0 starter and charging cables ** 300GD clutch/flywheel ** AFCO 80103N radiator & Earl's 41610 oil cooler ** custom block-off plate, remote oil filter & t-stat ** MW IP w/ tomnik's 6.5mm 'Holly' elements **

S124 Mods: 400E Rear subframe ** SL600 Brakes ** Late 300E 210mm diff ** SLK230 6 speed ** 17" CLK rims ** Vented RF Fender ** Facelift Hood, Headlights, and Lower Cladding **

OBK# 62
06-12-2013, 01:39 PM
Find Reply
HaavardPYA Offline
GT2559V
***


Posts: 189
Joined: Sep 2012
Location: Surnadal, Norway
#3
RE: Big brake kit
Yes, i think stoptech is good. But can you get tuv papers etc on them?
06-12-2013, 02:07 PM
Find Reply
HaavardPYA Offline
GT2559V
***


Posts: 189
Joined: Sep 2012
Location: Surnadal, Norway
#4
RE: Big brake kit
Anyone?
07-13-2013, 04:22 AM
Find Reply
winmutt Offline
bitbanger
********


Posts: 3,467
Joined: Dec 2008
Location: Atlanta GA
#5
RE: Big brake kit
No but a friend in UAE said that post w123 all front calipers will mount on any benz. I've put this to the test with a variety of brakes. You can pick up 6pots on ebay for ~$1000 but to me this is pricey and I stick with 4pots.
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
07-19-2013, 10:30 AM
Website Find Reply
SurfRodder Offline
Jackass Extraordinaire
****


Posts: 590
Joined: May 2009
Location: PNW
#6
RE: Big brake kit
(07-19-2013, 10:30 AM)winmutt Wrote: No but a friend in UAE said that post w123 all front calipers will mount on any benz

Thats REALLY good to know, I've seen plenty of later S classes that looked like they'd be close.
W123 Mods: 4 speed ** AN braided hoses/lines almost everywhere ** powder coated valve cover ** manual climate control ** better stereo ** '85 Kalitucky intake ** manual windows & full tint ** Euro headlights retrofit w/bixenon projectors ** 4 brake light mod ** Vogtland 50mm drop front & Lesjofors S600 drop rear springs ** 16" rims ** late w126 brake spindles, rotors & calipers ** full suspension rehab ** Bilstein HDs ** AL129X alternator & 1/0 starter and charging cables ** 300GD clutch/flywheel ** AFCO 80103N radiator & Earl's 41610 oil cooler ** custom block-off plate, remote oil filter & t-stat ** MW IP w/ tomnik's 6.5mm 'Holly' elements **

S124 Mods: 400E Rear subframe ** SL600 Brakes ** Late 300E 210mm diff ** SLK230 6 speed ** 17" CLK rims ** Vented RF Fender ** Facelift Hood, Headlights, and Lower Cladding **

OBK# 62
12-14-2013, 11:38 PM
Find Reply
winmutt Offline
bitbanger
********


Posts: 3,467
Joined: Dec 2008
Location: Atlanta GA
#7
RE: Big brake kit
(12-14-2013, 11:38 PM)SurfRodder Wrote:
(07-19-2013, 10:30 AM)winmutt Wrote: No but a friend in UAE said that post w123 all front calipers will mount on any benz

Thats REALLY good to know, I've seen plenty of later S classes that looked like they'd be close.

I can already tell you YMMV. I spent a good 2 hours a few weeks back fitting 140 brakes on a 124 at the junkyard. The distance between the mount hole to the spidle are the same but the bore was different, the offset was going to require washers and that was enough to have me stick to the 95 e320 brakes for now.
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
12-15-2013, 12:35 AM
Website Find Reply
SurfRodder Offline
Jackass Extraordinaire
****


Posts: 590
Joined: May 2009
Location: PNW
#8
RE: Big brake kit
(12-15-2013, 12:35 AM)winmutt Wrote: I can already tell you YMMV. I spent a good 2 hours a few weeks back fitting 140 brakes on a 124 at the junkyard. The distance between the mount hole to the spidle are the same but the bore was different, the offset was going to require washers and that was enough to have me stick to the 95 e320 brakes for now.

That's what I vaguely remembered when looking for donors at the part yard during my 124 brake upgrade...luckily they had a couple 400E's there when I made that happen.
I remember using my calibrated eyeball that the rotor 'hat' was significantly different setup on the 140.
W123 Mods: 4 speed ** AN braided hoses/lines almost everywhere ** powder coated valve cover ** manual climate control ** better stereo ** '85 Kalitucky intake ** manual windows & full tint ** Euro headlights retrofit w/bixenon projectors ** 4 brake light mod ** Vogtland 50mm drop front & Lesjofors S600 drop rear springs ** 16" rims ** late w126 brake spindles, rotors & calipers ** full suspension rehab ** Bilstein HDs ** AL129X alternator & 1/0 starter and charging cables ** 300GD clutch/flywheel ** AFCO 80103N radiator & Earl's 41610 oil cooler ** custom block-off plate, remote oil filter & t-stat ** MW IP w/ tomnik's 6.5mm 'Holly' elements **

S124 Mods: 400E Rear subframe ** SL600 Brakes ** Late 300E 210mm diff ** SLK230 6 speed ** 17" CLK rims ** Vented RF Fender ** Facelift Hood, Headlights, and Lower Cladding **

OBK# 62
12-24-2013, 02:12 PM
Find Reply
john Offline
GTA2056V
**


Posts: 90
Joined: Nov 2013
Location: Sweden
#9
RE: Big brake kit
(06-12-2013, 02:07 PM)HaavardPYA Wrote: Yes, i think stoptech is good. But can you get tuv papers etc on them?

Do you really need tuv approval on everything in Norway?
Holset power!
12-29-2013, 04:30 PM
Find Reply
winmutt Offline
bitbanger
********


Posts: 3,467
Joined: Dec 2008
Location: Atlanta GA
#10
RE: Big brake kit
(12-29-2013, 04:30 PM)john Wrote:
(06-12-2013, 02:07 PM)HaavardPYA Wrote: Yes, i think stoptech is good. But can you get tuv papers etc on them?

Do you really need tuv approval on everything in Norway?

The SS lines I just installed were stoptech and had TUV certs.
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
12-29-2013, 08:50 PM
Website Find Reply
HaavardPYA Offline
GT2559V
***


Posts: 189
Joined: Sep 2012
Location: Surnadal, Norway
#11
RE: Big brake kit
Police go bananas just if you have wrong tires, so its nice to have your dailydriver street legalSmile
01-02-2014, 05:05 PM
Find Reply
raysorenson Offline
Superturbo
*****


Posts: 1,158
Joined: Sep 2011
Location: Birmingham AL
#12
RE: Big brake kit
Making the aftermarket brake thing worse for older Merc's, all the M.B. specific BBK's only fit under huge diameter wheels. Is there a single one that will fit a 17" wheel?
01-02-2014, 07:51 PM
Find Reply
hooblah Offline
Holset
****


Posts: 399
Joined: Jul 2012
Location: South London
#13
RE: Big brake kit
Do 334's with 4 pots not fit under 17's?
07-31-2014, 05:45 AM
Find Reply
winmutt Offline
bitbanger
********


Posts: 3,467
Joined: Dec 2008
Location: Atlanta GA
#14
RE: Big brake kit
(07-31-2014, 05:45 AM)hooblah Wrote: Do 334's with 4 pots not fit under 17's?

I'm about to find out. I got the 334/300mm calipers today off the R129 99-01 SL500/600. They are monsters!
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
07-26-2016, 10:54 PM
Website Find Reply
Hario' Offline
C300TD Wagon (W202)
*****


Posts: 896
Joined: Nov 2011
Location: SW London
#15
RE: Big brake kit
(07-26-2016, 10:54 PM)winmutt Wrote:
(07-31-2014, 05:45 AM)hooblah Wrote: Do 334's with 4 pots not fit under 17's?

I'm about to find out. I got the 334/300mm calipers today off the R129 99-01 SL500/600. They are monsters!

I can tell you 345mm rotors & W220 4-pots fit under 17's..



Installed:

OM606/722.6, big IC, W220 brakes.
Planned:
DIY manifold, compound, 722.6 controller, built IP.
[i]Less rust..
[/i]
08-01-2016, 09:55 AM
Find Reply
Duncansport Offline
Holset
****


Posts: 526
Joined: Apr 2013
Location: New Hampshire
#16
RE: Big brake kit
I just did the 334s with 17's with no issues
Need a master cylinder though as the pedal travel is a bit to much i think
Duncansauto.com

Duncansservice@gmail.com

https://www.facebook.com/Duncanseuropean
08-01-2016, 02:15 PM
Find Reply
winmutt Offline
bitbanger
********


Posts: 3,467
Joined: Dec 2008
Location: Atlanta GA
#17
RE: Big brake kit

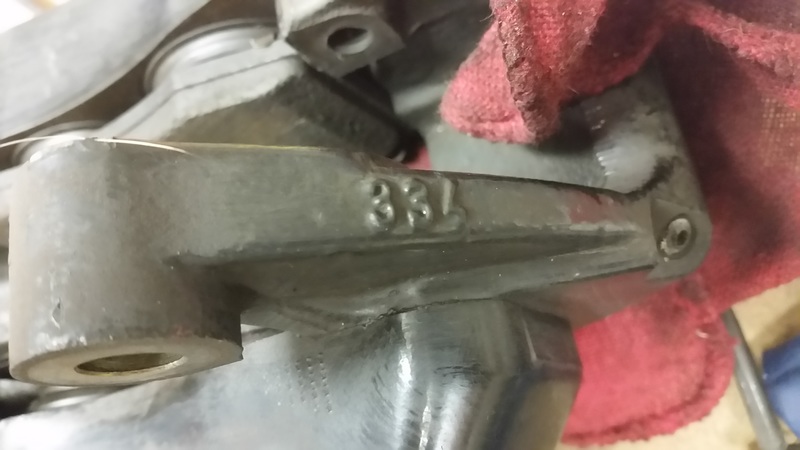

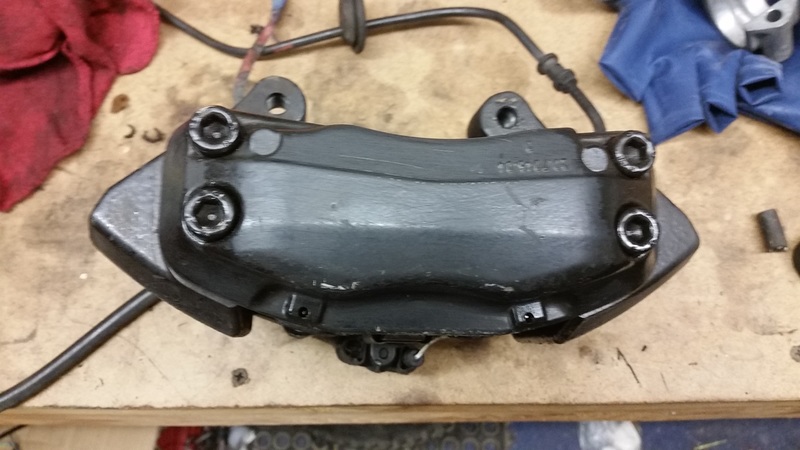

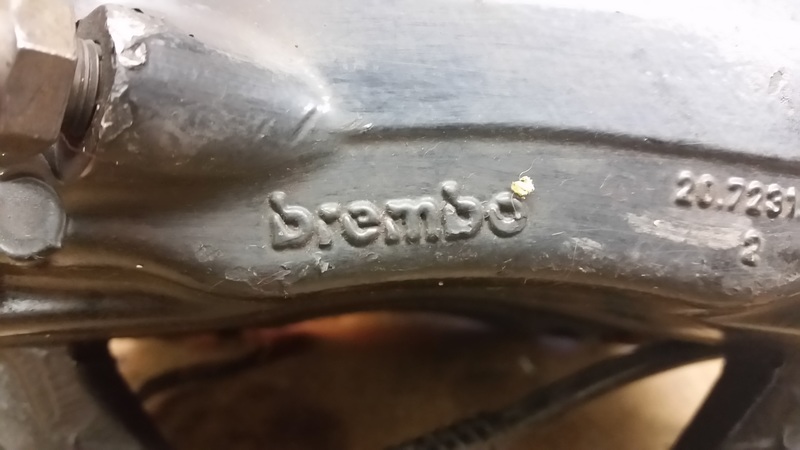

[Image: brembo.334mm.2.jpg] [Image: brembo.334mm.1.jpg] [Image: brembo.334mm.3.jpg]
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
08-03-2016, 08:05 AM
Website Find Reply
