Intercooler picture thread?
lgreeley83 Offline
Mr. Rumbles
*****


Posts: 775
Joined: Dec 2011
Location: near Chicago
#1
Intercooler picture thread?
I'd like to put an Air to Air in the W123. Behind grill or under bumper, whatever space allows for. I will have all AC stuff removed.

I've seen pics of people's setups but they have only been the "At a Glance" sorta of picture. Any pics detailing pipe routing, sizing, etc.? It's tight down there, how can i fit my pipe?
" straighten up that star on the grill, assholes."

(This post was last modified: 08-30-2013, 10:40 AM by winmutt.)
06-08-2013, 06:59 PM
Find Reply
winmutt Offline
bitbanger
********


Posts: 3,466
Joined: Dec 2008
Location: Atlanta GA
#2
RE: Inter cooler picture thread?
I will takes pics of the w124. Piping should come in today. The 27"x8"x4" IC I got is just about a perfect fit.
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
06-10-2013, 09:42 AM
Website Find Reply
lgreeley83 Offline
Mr. Rumbles
*****


Posts: 775
Joined: Dec 2011
Location: near Chicago
#3
RE: Inter cooler picture thread?
Its just tough to imagine without going electrical fans. Cutting metal and who knows what else.
" straighten up that star on the grill, assholes."

06-10-2013, 02:40 PM
Find Reply
Druk Offline
Holset
****


Posts: 297
Joined: Oct 2011
Location: Scotland
#4
RE: Inter cooler picture thread?
In front of the main rad in a 107.

[Image: 2_zps5b4a1a6a.jpg]

[Image: 10-1_zps6e3432da.jpg]

[Image: 9_zps90cdae10.jpg]


.
06-10-2013, 04:48 PM
Find Reply
winmutt Offline
bitbanger
********


Posts: 3,466
Joined: Dec 2008
Location: Atlanta GA
#5
RE: Inter cooler picture thread?
(06-10-2013, 02:40 PM)lgreeley83 Wrote: Its just tough to imagine without going electrical fans. Cutting metal and who knows what else.

And that's why I went with a smaller intercooler. Sure its not ideal, but cutting the bumper support or losing AC.... neither were justifiable. With a 602/605 there is way more room to move things around.
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
06-10-2013, 05:09 PM
Website Find Reply
MFSuper90 Offline
Budget Builder
*****


Posts: 1,532
Joined: May 2010
Location: MOV, Ohio
#6
RE: Inter cooler picture thread?
[Image: null_zps7bd81b02.jpg]

I cheat Big Grin
'82 300D -3" straight pipe, ALDA deleted, 3in1 glowshift gauge, HX30, egr-less manifold, A/W intercooler Big Grin
'14 Ram 6.7l cummins -G56 handshaker, wishing it was deleted
06-10-2013, 09:18 PM
Find Reply
lgreeley83 Offline
Mr. Rumbles
*****


Posts: 775
Joined: Dec 2011
Location: near Chicago
#7
RE: Inter cooler picture thread?
I've got the w115 manifold and have been considering that. Without a crossflow head I'm think it's the best bet. Every pic of a w123 air to air I think has had a non stock radiator and relocated oil cooler thus allowing some space. Maybe I'm wrong.
" straighten up that star on the grill, assholes."

06-10-2013, 09:36 PM
Find Reply
lgreeley83 Offline
Mr. Rumbles
*****


Posts: 775
Joined: Dec 2011
Location: near Chicago
#8
RE: Inter cooler picture thread?
That air water looks like something someone was selling a few months back.
" straighten up that star on the grill, assholes."

06-10-2013, 10:47 PM
Find Reply
MFSuper90 Offline
Budget Builder
*****


Posts: 1,532
Joined: May 2010
Location: MOV, Ohio
#9
RE: Inter cooler picture thread?
It is! Me and Kmaser made a deal, and I am now the proud owner of a A/W intercooler Cool
'82 300D -3" straight pipe, ALDA deleted, 3in1 glowshift gauge, HX30, egr-less manifold, A/W intercooler Big Grin
'14 Ram 6.7l cummins -G56 handshaker, wishing it was deleted
06-11-2013, 10:26 AM
Find Reply
winmutt Offline
bitbanger
********


Posts: 3,466
Joined: Dec 2008
Location: Atlanta GA
#10
RE: Inter cooler picture thread?
My intercooler has gone places Big Grin
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
06-11-2013, 06:57 PM
Website Find Reply
winmutt Offline
bitbanger
********


Posts: 3,466
Joined: Dec 2008
Location: Atlanta GA
#11
RE: Inter cooler picture thread?
HoleshotHolesets money shot

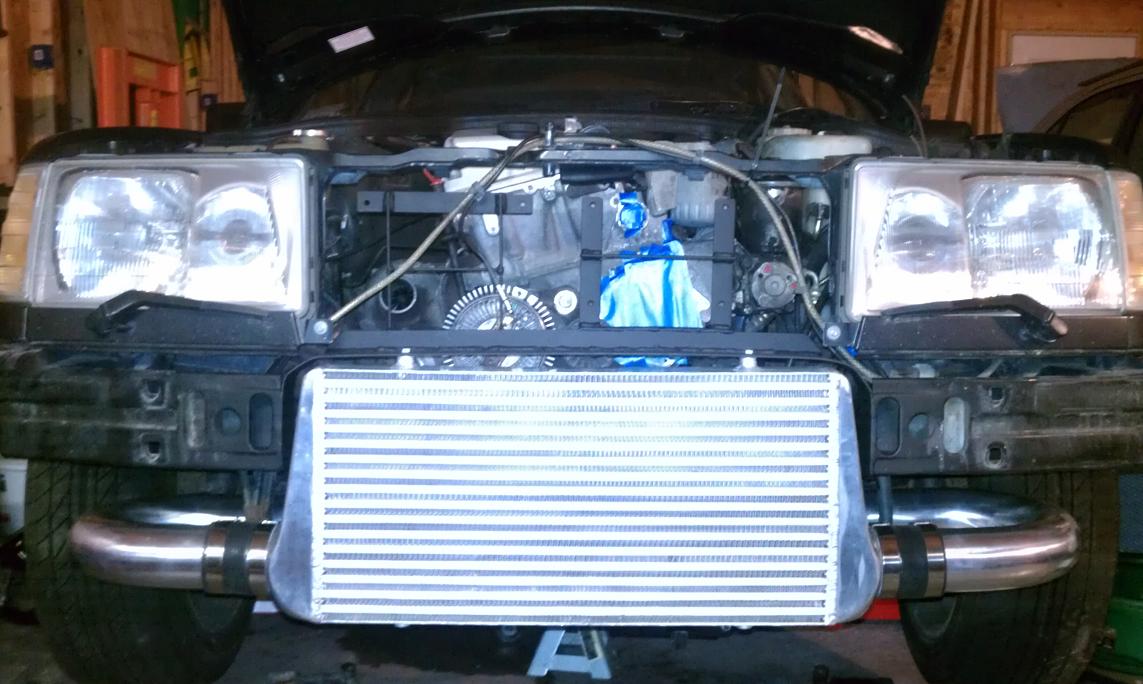

[Image: attachment.php?aid=5191]

EDH performance
[Image: IMG_3707.jpg]
[Image: IMG_3707.jpg]
[Image: IMG_3710.jpg]
[Image: IMG_3715.jpg]
[Image: IMG_3718.jpg]
[Image: IMG_3731.jpg]

Zeitgeist
[Image: intercooler_installed2.jpg]
[Image: 1.jpg]

Random pictures:
[Image: images?q=tbn:ANd9GcTK9-eW6ja4wV3B40Y9Fe-...ukdjWdsgzE]
[Image: 71194d1250725309-w124-300e-m103-turbo-pr...g_0063.jpg]
[Image: Copy%20of%20DSC00089.JPG]
[Image: noin.jpg]
[Image: merin1.jpg]
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
06-11-2013, 07:12 PM
Website Find Reply
MFSuper90 Offline
Budget Builder
*****


Posts: 1,532
Joined: May 2010
Location: MOV, Ohio
#12
RE: Inter cooler picture thread?
Was it yours originally winmutt?
'82 300D -3" straight pipe, ALDA deleted, 3in1 glowshift gauge, HX30, egr-less manifold, A/W intercooler Big Grin
'14 Ram 6.7l cummins -G56 handshaker, wishing it was deleted
06-11-2013, 09:56 PM
Find Reply
winmutt Offline
bitbanger
********


Posts: 3,466
Joined: Dec 2008
Location: Atlanta GA
#13
RE: Inter cooler picture thread?
(06-11-2013, 09:56 PM)MFSuper90 Wrote: Was it yours originally winmutt?

It was.

I test fitted piping and IC last night. Will get some metal from HD today and start working on the brackets, promise I'll take plenty of pics of routing etc.
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
06-12-2013, 10:18 AM
Website Find Reply
lgreeley83 Offline
Mr. Rumbles
*****


Posts: 775
Joined: Dec 2011
Location: near Chicago
#14
RE: Inter cooler picture thread?
Off topic but in the same realm...

Anybody know if the w123 240d radiator swaps with the 300d radiator? With a manual trans i wouldnt need the integrated cooler. Could I use the same hoses? Would the 300d oil cooler mount to it? I could delete the overflow tank.

This would allow more room for ic pipes as well as clean up the engine bay even more. I know cooling wouldn't be as great. I'd go electrical fan. The last pic above has a beast motor behind the 240 radiator it looks like.

I am getting lazy and don't feel like fabbing anything. Every one of my projects seems to go way longer than it should.

http://www.greasecar.com/forums/tech-tip...nto-a-300d

2 min on Google. Seems OK I guess.....
" straighten up that star on the grill, assholes."

(This post was last modified: 06-16-2013, 10:51 PM by lgreeley83.)
06-16-2013, 10:02 PM
Find Reply
swampmonkey Offline
hx40 super
****


Posts: 280
Joined: Mar 2013
Location: Gothenburg - Sweden
#15
RE: Inter cooler picture thread?
(06-16-2013, 10:02 PM)lgreeley83 Wrote: Off topic but in the same realm...

Anybody know if the w123 240d radiator swaps with the 300d radiator? With a manual trans i wouldnt need the integrated cooler. Could I use the same hoses? Would the 300d oil cooler mount to it? I could delete the overflow tank.

This would allow more room for ic pipes as well as clean up the engine bay even more. I know cooling wouldn't be as great. I'd go electrical fan. The last pic above has a beast motor behind the 240 radiator it looks like.

I am getting lazy and don't feel like fabbing anything. Every one of my projects seems to go way longer than it should.

http://www.greasecar.com/forums/tech-tip...nto-a-300d

2 min on Google. Seems OK I guess.....

make sure the sides is -kinda airtight- if you opens up, gives better flow throu radiator.
how much power are you planing? got a w123 coupe with om602turbo with dialed up pump and 280E radiator, got heatproblems when making long pushes.
---------------------------------
daily driver
w115 240d 72hp 3.07 rearend
w123 om602 turbo 200whp 7.5mm pump fivespeed 3.07 rearend
+ a few more.
mbturbo.com
(This post was last modified: 06-21-2013, 02:29 AM by swampmonkey.)
06-21-2013, 02:28 AM
Website Find Reply
lgreeley83 Offline
Mr. Rumbles
*****


Posts: 775
Joined: Dec 2011
Location: near Chicago
#16
RE: Inter cooler picture thread?
Not too much, maybe 200 HP. I'll have 6mm (90cc fuel) pump on om617. 60 trim in the Garrett turbo.
" straighten up that star on the grill, assholes."

06-21-2013, 09:26 AM
Find Reply
winmutt Offline
bitbanger
********


Posts: 3,466
Joined: Dec 2008
Location: Atlanta GA
#17
RE: Inter cooler picture thread?
Mounted.

[Image: 2013-07-04%2009.36.22.jpg]
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
(This post was last modified: 07-04-2013, 08:59 AM by winmutt.)
07-04-2013, 08:59 AM
Website Find Reply
Captain America Offline
Boostin' & Roostin'
*****


Posts: 2,219
Joined: Jun 2010
Location: Riverside, California USA
#18
RE: Inter cooler picture thread?
Air/Water is the most efficient so why not go that route?

1982 300D Turbo ... 3,6xxlbs, No fan, No AC, Hood Stack, No ALDA, No rear bumper and stuffed front, A/W Intercooled, Injectors by Greezer and HUGE Pre-Chambers with help from OM616 & Simpler=Better, Fuel Cranked up, 60 Trim Compressor wheel, EGT, EMP, Boost 50" Rigid Radius bar on roof Aux tank for a total of 48 Gal Of Diesel! Odyssey PC-1750 Battery in trunk, 27"x8.5"/R14 Maxxis BigHorn Mud Terrains, In June '14 issue of Off Road Mag

AX15 Jeep Trans swap in progress....

07-07-2013, 07:22 PM
Find Reply
winmutt Offline
bitbanger
********


Posts: 3,466
Joined: Dec 2008
Location: Atlanta GA
#19
RE: Inter cooler picture thread?
(07-07-2013, 07:22 PM)Captain America Wrote: Air/Water is the most efficient so why not go that route?

At the end of the day, the space issue was still the same with the rad as the a/a intercoler. Then there was the space for the tank and yada yada. Most importantly is that you cant get on many courses (none around here) with a non oem air/water intercooler.

[Image: fmic.lights.jpg]

I have 4" clearence under the IC, went over some minor speed bumps no issue. I will probably redo the mounts and get it another 1" higher off the ground maybe and with some piping rework get better clearance.
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
07-07-2013, 08:10 PM
Website Find Reply
lgreeley83 Offline
Mr. Rumbles
*****


Posts: 775
Joined: Dec 2011
Location: near Chicago
#20
RE: Inter cooler picture thread?
(07-07-2013, 07:22 PM)Captain America Wrote: Air/Water is the most efficient so why not go that route?

I need one like yours. Is that guy still alive? I've got an extra 115 mani for him to mod for me. :-)
" straighten up that star on the grill, assholes."

07-07-2013, 09:24 PM
Find Reply
sassparilla_kid Offline
diesel > all other fuels
*****


Posts: 1,618
Joined: Oct 2011
Location: Fresno, California
#21
RE: Inter cooler picture thread?
(07-07-2013, 09:24 PM)lgreeley83 Wrote:
(07-07-2013, 07:22 PM)Captain America Wrote: Air/Water is the most efficient so why not go that route?

I need one like yours. Is that guy still alive? I've got an extra 115 mani for him to mod for me. :-)

I'm pretty sure Captain America could fab you one if you sent him your manifold, he is a welder by trade lol
-1982 300D Turbo, 280k miles, ALDA apparently maxxed, fram 8038, 12 lbs boost, non-egr manifolds, W/M injection, 4 brake light mod, Gen II w126 front rotors/calipers, 4-speed swap
In the works: A/W IC, adjust pump, turbo rebuild (w/60 trim comp wheel)
-1980 300SD, 110k, project car. Goal is to get it lookin' like it did on the showroom floor (body and interior wise, not necessarily under the hood )
-1974 240D, FRESH PAINT!!!!!!
07-08-2013, 02:27 PM
Find Reply
Captain America Offline
Boostin' & Roostin'
*****


Posts: 2,219
Joined: Jun 2010
Location: Riverside, California USA
#22
RE: Inter cooler picture thread?
Yeah I might be able to do that at the new place I'm working at, we are still setting up the shop so I'm at least a few weeks out

1982 300D Turbo ... 3,6xxlbs, No fan, No AC, Hood Stack, No ALDA, No rear bumper and stuffed front, A/W Intercooled, Injectors by Greezer and HUGE Pre-Chambers with help from OM616 & Simpler=Better, Fuel Cranked up, 60 Trim Compressor wheel, EGT, EMP, Boost 50" Rigid Radius bar on roof Aux tank for a total of 48 Gal Of Diesel! Odyssey PC-1750 Battery in trunk, 27"x8.5"/R14 Maxxis BigHorn Mud Terrains, In June '14 issue of Off Road Mag

AX15 Jeep Trans swap in progress....

07-08-2013, 02:36 PM
Find Reply
sassparilla_kid Offline
diesel > all other fuels
*****


Posts: 1,618
Joined: Oct 2011
Location: Fresno, California
#23
RE: Inter cooler picture thread?
I can't really find it right now on my phone, but what about the style FI used, I believe it was A/W and looked like a cylinder that ran parallel to the intake manifold
-1982 300D Turbo, 280k miles, ALDA apparently maxxed, fram 8038, 12 lbs boost, non-egr manifolds, W/M injection, 4 brake light mod, Gen II w126 front rotors/calipers, 4-speed swap
In the works: A/W IC, adjust pump, turbo rebuild (w/60 trim comp wheel)
-1980 300SD, 110k, project car. Goal is to get it lookin' like it did on the showroom floor (body and interior wise, not necessarily under the hood )
-1974 240D, FRESH PAINT!!!!!!
07-11-2013, 06:17 PM
Find Reply
lgreeley83 Offline
Mr. Rumbles
*****


Posts: 775
Joined: Dec 2011
Location: near Chicago
#24
RE: Inter cooler picture thread?
Yeah that would be good too. Allow for work on the turbo without the big old A/W manifold in the way

http://www.superturbodiesel.com/std/thread-292.html

.png   fi.png (Size: 422.76 KB / Downloads: 406)
" straighten up that star on the grill, assholes."

(This post was last modified: 07-11-2013, 07:38 PM by lgreeley83.)
07-11-2013, 07:22 PM
Find Reply
winmutt Offline
bitbanger
********


Posts: 3,466
Joined: Dec 2008
Location: Atlanta GA
#25
RE: Intercooler picture thread?
Got a little lift and tuck at the pastic surgeons today.
Before:
[Image: fmic.lights.jpg]
After:
[Image: fmic.tuck.part1.jpg]
I accomplished this by cutting into the radiator support about 1" where the plane of the back part of the support ends up at the top and then bent the sides back like wings. Kinda hard to describe without pics (which I should have taken). Doesn't seem like big numbers but the difference is pretty clear! At this point, the top mounts of the IC are about 1/4" off the bumper. I can remove all of the side material on the radiator mount and pound it flat and get the mount points underneath. To mount that I will have to drill a big hole through to top of the bumper support to allow access to a smaller hole for the bolt to go through to mount into the top of the intercooler. At that point the intercooler would almost be vertical and probably gain another 1/2" of clearance on the bottom as well as allow for a spoiler to go over it.
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
08-30-2013, 10:46 AM
Website Find Reply
Jambo Offline
GTA2056V
**


Posts: 88
Joined: Mar 2010
Location: Pretoria, South Africa
#26
RE: Intercooler picture thread?
Hi,
While on the Intercooler topic.
Is there any sense in using the free integrated cooler (probably for the transmission) on a 300GD for a A/W intercooler? I know the temp would only cool to water temp of motor if that low. That would make things a lot simpler.

Alan
09-03-2013, 06:19 AM
Find Reply
1911diesel Offline
GT2256V
***


Posts: 108
Joined: May 2013
Location: United States
#27
RE: Intercooler picture thread?
i think the idea of the extra cooler system is to keep temps cooler. altho a w/a intercooler will not bring charge air temps lower then "out side" temps unless its hooked up to the ac system or an ice tank. but generally speaking, it wont cool as well as a a/a intercooler. and when you go hooking it to something thats already hot, like engine or tranny cooling fluids, you are just reducing the efficiency. im sure it would work, just not as well as it could.
82 300SD-this engine may go in the 78...-Mary Jane
78 300CD-may be getting a new engine and rear end...-Brunhilde
82 300CD-uhhh race car project???-Gerda
85 300SD- the womans daily ITS F**KING PINK!-Tsybil
92 F350 CC LB dually-back up/tow pig/long haul land yacht.-Betsey

[Image: PicMonkeyCollage_zpsc1d9cd5f.jpg]
09-03-2013, 11:26 AM
Find Reply
larsalan Offline
Superturbo
*****


Posts: 1,272
Joined: Sep 2010
Location: B-Town, IN
#28
RE: Intercooler picture thread?
+1000
Why would some hot ass radiator fluid help to cool down charge air?
Rusted out beat down 300d turbo 82' -- RIP
Nice body, tons of ridiculous mechanical issues - 300d turbo 82' /motor 85'
09-03-2013, 04:29 PM
Find Reply
MFSuper90 Offline
Budget Builder
*****


Posts: 1,532
Joined: May 2010
Location: MOV, Ohio
#29
RE: Intercooler picture thread?
(09-03-2013, 11:26 AM)1911diesel Wrote: i think the idea of the extra cooler system is to keep temps cooler. altho a w/a intercooler will not bring charge air temps lower then "out side" temps unless its hooked up to the ac system or an ice tank. but generally speaking, it wont cool as well as a a/a intercooler. and when you go hooking it to something thats already hot, like engine or tranny cooling fluids, you are just reducing the efficiency. im sure it would work, just not as well as it could.

Actually W/A intercoolers are more efficient than A/A.

But he is right, I would definitely recommend making a seperate cooling system. It's really not that tough to setup a seperate system, I'll post better pics of mine sometime
'82 300D -3" straight pipe, ALDA deleted, 3in1 glowshift gauge, HX30, egr-less manifold, A/W intercooler Big Grin
'14 Ram 6.7l cummins -G56 handshaker, wishing it was deleted
09-03-2013, 05:03 PM
Find Reply
1911diesel Offline
GT2256V
***


Posts: 108
Joined: May 2013
Location: United States
#30
RE: Intercooler picture thread?
(09-03-2013, 05:03 PM)MFSuper90 Wrote:
(09-03-2013, 11:26 AM)1911diesel Wrote: i think the idea of the extra cooler system is to keep temps cooler. altho a w/a intercooler will not bring charge air temps lower then "out side" temps unless its hooked up to the ac system or an ice tank. but generally speaking, it wont cool as well as a a/a intercooler. and when you go hooking it to something thats already hot, like engine or tranny cooling fluids, you are just reducing the efficiency. im sure it would work, just not as well as it could.

Actually W/A intercoolers are more efficient than A/A.

But he is right, I would definitely recommend making a seperate cooling system. It's really not that tough to setup a seperate system, I'll post better pics of mine sometime

well, you can think what you want, but it really depends on the application you are using the intercooler on, besides that. cooler charge air no matter how its cooled it has to be better then hot charge air.
82 300SD-this engine may go in the 78...-Mary Jane
78 300CD-may be getting a new engine and rear end...-Brunhilde
82 300CD-uhhh race car project???-Gerda
85 300SD- the womans daily ITS F**KING PINK!-Tsybil
92 F350 CC LB dually-back up/tow pig/long haul land yacht.-Betsey

[Image: PicMonkeyCollage_zpsc1d9cd5f.jpg]
09-03-2013, 06:38 PM
Find Reply
raysorenson Offline
Superturbo
*****


Posts: 1,158
Joined: Sep 2011
Location: Birmingham AL
#31
RE: Intercooler picture thread?
(09-03-2013, 05:03 PM)MFSuper90 Wrote: Actually W/A intercoolers are more efficient than A/A.

When you say "more efficient", are you speaking in terms of thermal capacity, the rate at which the system sheds heat to the air or restriction?
09-04-2013, 08:57 PM
Find Reply
Captain America Offline
Boostin' & Roostin'
*****


Posts: 2,219
Joined: Jun 2010
Location: Riverside, California USA
#32
RE: Intercooler picture thread?
(09-03-2013, 11:26 AM)1911diesel Wrote: i think the idea of the extra cooler system is to keep temps cooler. altho a w/a intercooler will not bring charge air temps lower then "out side" temps unless its hooked up to the ac system or an ice tank. but generally speaking, it wont cool as well as a a/a intercooler. and when you go hooking it to something thats already hot, like engine or tranny cooling fluids, you are just reducing the efficiency. im sure it would work, just not as well as it could.

You dont "hook into" them. If using coolant you use 1mm bleed holes just to keep the levels between the engine cooling system and the A/W cooling system equal. You keep 1 fill point that way instead of having 2... but they are still separate.

Here is mine


.jpg   IMG_20121019_180020.jpg (Size: 140.04 KB / Downloads: 744)

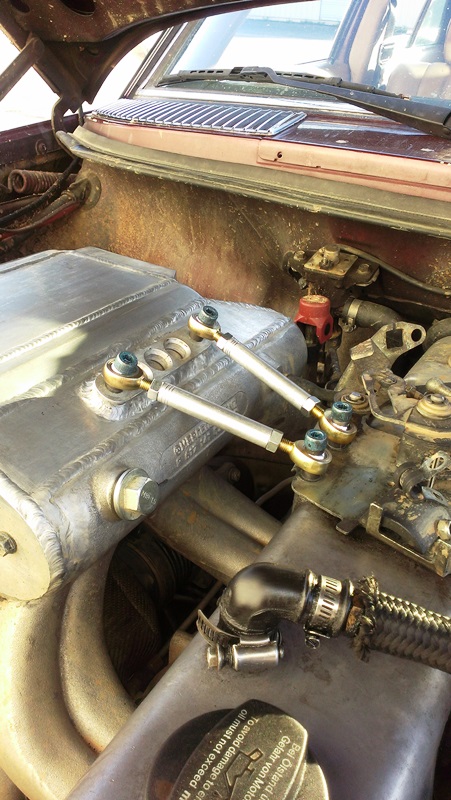

Had to make new turnbuckles, Rudolf's were garbage


.jpg   IMAG0311.jpg (Size: 170.38 KB / Downloads: 634)

(09-04-2013, 08:57 PM)raysorenson Wrote:
(09-03-2013, 05:03 PM)MFSuper90 Wrote: Actually W/A intercoolers are more efficient than A/A.

When you say "more efficient", are you speaking in terms of thermal capacity, the rate at which the system sheds heat to the air or restriction?

I would say capacity is much more and rate of change is much less with water

1982 300D Turbo ... 3,6xxlbs, No fan, No AC, Hood Stack, No ALDA, No rear bumper and stuffed front, A/W Intercooled, Injectors by Greezer and HUGE Pre-Chambers with help from OM616 & Simpler=Better, Fuel Cranked up, 60 Trim Compressor wheel, EGT, EMP, Boost 50" Rigid Radius bar on roof Aux tank for a total of 48 Gal Of Diesel! Odyssey PC-1750 Battery in trunk, 27"x8.5"/R14 Maxxis BigHorn Mud Terrains, In June '14 issue of Off Road Mag

AX15 Jeep Trans swap in progress....

(This post was last modified: 09-04-2013, 11:06 PM by Captain America.)
09-04-2013, 11:05 PM
Find Reply
85-300D Offline
TA 0301
**


Posts: 50
Joined: May 2013
Location: Boise, ID
#33
RE: Intercooler picture thread?
(09-04-2013, 11:05 PM)Captain America Wrote:
(09-03-2013, 11:26 AM)1911diesel Wrote: i think the idea of the extra cooler system is to keep temps cooler. altho a w/a intercooler will not bring charge air temps lower then "out side" temps unless its hooked up to the ac system or an ice tank. but generally speaking, it wont cool as well as a a/a intercooler. and when you go hooking it to something thats already hot, like engine or tranny cooling fluids, you are just reducing the efficiency. im sure it would work, just not as well as it could.

You dont "hook into" them. If using coolant you use 1mm bleed holes just to keep the levels between the engine cooling system and the A/W cooling system equal. You keep 1 fill point that way instead of having 2... but they are still separate.

Here is mine



Had to make new turnbuckles, Rudolf's were garbage



(09-04-2013, 08:57 PM)raysorenson Wrote:
(09-03-2013, 05:03 PM)MFSuper90 Wrote: Actually W/A intercoolers are more efficient than A/A.

When you say "more efficient", are you speaking in terms of thermal capacity, the rate at which the system sheds heat to the air or restriction?

I would say capacity is much more and rate of change is much less with water

Nice looking setup. What turbo are you running?
"Rusty" 85 300D
09-05-2013, 10:21 AM
Find Reply
sassparilla_kid Offline
diesel > all other fuels
*****


Posts: 1,618
Joined: Oct 2011
Location: Fresno, California
#34
RE: Intercooler picture thread?
He has a stock Garrett rebuilt with a .60 trim compressor housing
-1982 300D Turbo, 280k miles, ALDA apparently maxxed, fram 8038, 12 lbs boost, non-egr manifolds, W/M injection, 4 brake light mod, Gen II w126 front rotors/calipers, 4-speed swap
In the works: A/W IC, adjust pump, turbo rebuild (w/60 trim comp wheel)
-1980 300SD, 110k, project car. Goal is to get it lookin' like it did on the showroom floor (body and interior wise, not necessarily under the hood )
-1974 240D, FRESH PAINT!!!!!!
09-05-2013, 02:13 PM
Find Reply
85-300D Offline
TA 0301
**


Posts: 50
Joined: May 2013
Location: Boise, ID
#35
RE: Intercooler picture thread?
Thanks.
09-05-2013, 07:52 PM
Find Reply
Captain America Offline
Boostin' & Roostin'
*****


Posts: 2,219
Joined: Jun 2010
Location: Riverside, California USA
#36
RE: Intercooler picture thread?
(09-05-2013, 10:21 AM)85-300D Wrote: Nice looking setup. What turbo are you running?

Thank you. And yeah, haha, super badass Garrett T3 with the 60 trim comp wheel lol. You can find the detailed infor on it in the turbo sticky thread. Its the second post

http://www.superturbodiesel.com/std/thre...l#pid28225

1982 300D Turbo ... 3,6xxlbs, No fan, No AC, Hood Stack, No ALDA, No rear bumper and stuffed front, A/W Intercooled, Injectors by Greezer and HUGE Pre-Chambers with help from OM616 & Simpler=Better, Fuel Cranked up, 60 Trim Compressor wheel, EGT, EMP, Boost 50" Rigid Radius bar on roof Aux tank for a total of 48 Gal Of Diesel! Odyssey PC-1750 Battery in trunk, 27"x8.5"/R14 Maxxis BigHorn Mud Terrains, In June '14 issue of Off Road Mag

AX15 Jeep Trans swap in progress....

(This post was last modified: 09-06-2013, 02:41 AM by Captain America.)
09-06-2013, 02:39 AM
Find Reply
MFSuper90 Offline
Budget Builder
*****


Posts: 1,532
Joined: May 2010
Location: MOV, Ohio
#37
RE: Intercooler picture thread?
"What ranges of efficiency can be expected from an intercooler?
A typical air-to-air intercooler for a street application achieves between 60% and 70% efficiency, an excellent/optimum design for road racing can approach close to 90% efficiency, but requires an adequate "budget!”

Typically, a liquid-to-air intercooler achieves higher efficiencies than an air-to-air intercooler, starting at 75% efficiency and reaching peaks of 95% efficiency. Another advantage is the optional use of ice as a coolant, which is the only way to reduce the charge-air temperature below the ambient air temperature."


That quote is from Bell's website. But I also found some of the frequently ask questions contradicting sometimes.

My intercooler. Winmutts old setup
[Image: null_zps0a3939db.jpg]
'82 300D -3" straight pipe, ALDA deleted, 3in1 glowshift gauge, HX30, egr-less manifold, A/W intercooler Big Grin
'14 Ram 6.7l cummins -G56 handshaker, wishing it was deleted
09-06-2013, 02:32 PM
Find Reply
winmutt Offline
bitbanger
********


Posts: 3,466
Joined: Dec 2008
Location: Atlanta GA
#38
RE: Intercooler picture thread?
One thing you can do with both of them is mist, more of a direct effect on the A/A. The problem with A/W is heatsoak.
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
09-06-2013, 07:03 PM
Website Find Reply
sassparilla_kid Offline
diesel > all other fuels
*****


Posts: 1,618
Joined: Oct 2011
Location: Fresno, California
#39
RE: Intercooler picture thread?
Mist?
-1982 300D Turbo, 280k miles, ALDA apparently maxxed, fram 8038, 12 lbs boost, non-egr manifolds, W/M injection, 4 brake light mod, Gen II w126 front rotors/calipers, 4-speed swap
In the works: A/W IC, adjust pump, turbo rebuild (w/60 trim comp wheel)
-1980 300SD, 110k, project car. Goal is to get it lookin' like it did on the showroom floor (body and interior wise, not necessarily under the hood )
-1974 240D, FRESH PAINT!!!!!!
09-06-2013, 07:47 PM
Find Reply
larsalan Offline
Superturbo
*****


Posts: 1,272
Joined: Sep 2010
Location: B-Town, IN
#40
RE: Intercooler picture thread?
Mist means spraying water onto an a/a intercooler and just letting it fall down onto the pavement. See you later heat Wink
Right?
Rusted out beat down 300d turbo 82' -- RIP
Nice body, tons of ridiculous mechanical issues - 300d turbo 82' /motor 85'
09-06-2013, 10:21 PM
Find Reply
MFSuper90 Offline
Budget Builder
*****


Posts: 1,532
Joined: May 2010
Location: MOV, Ohio
#41
RE: Intercooler picture thread?
How would you mist a w/a?
And I've been thinking about running a w/m setup to clean up my ports (they are grimy as hell from egr), probably not a good idea to shoot before the cooler is it?
'82 300D -3" straight pipe, ALDA deleted, 3in1 glowshift gauge, HX30, egr-less manifold, A/W intercooler Big Grin
'14 Ram 6.7l cummins -G56 handshaker, wishing it was deleted
09-07-2013, 02:57 PM
Find Reply
1911diesel Offline
GT2256V
***


Posts: 108
Joined: May 2013
Location: United States
#42
RE: Intercooler picture thread?
(09-07-2013, 02:57 PM)MFSuper90 Wrote: How would you mist a w/a?
And I've been thinking about running a w/m setup to clean up my ports (they are grimy as hell from egr), probably not a good idea to shoot before the cooler is it?


well i dont know about on a benz, but on the 7.3 idi a fellow FTE board member has 3 nozzles one pre turbo ( yes pre turbo) one pre cooler and one just before the intake. and he runs no meth, just water. and he says it dropped his egts by a lot. take that for what you will. but i plan on running one nozzle pre cooler and one post cooler. but be careful, too much water can cause pinging and damage the tops of pistons. i saw pics of the damage it has caused ill see if i can dig up the thread or the pics on FTE.

(09-07-2013, 02:57 PM)MFSuper90 Wrote: How would you mist a w/a?
And I've been thinking about running a w/m setup to clean up my ports (they are grimy as hell from egr), probably not a good idea to shoot before the cooler is it?


well i dont know about on a benz, but on the 7.3 idi a fellow FTE board member has 3 nozzles one pre turbo ( yes pre turbo) one pre cooler and one just before the intake. and he runs no meth, just water. and he says it dropped his egts by a lot. take that for what you will. but i plan on running one nozzle pre cooler and one post cooler. but be careful, too much water can cause pinging and damage the tops of pistons. i saw pics of the damage it has caused ill see if i can dig up the thread or the pics on FTE.
82 300SD-this engine may go in the 78...-Mary Jane
78 300CD-may be getting a new engine and rear end...-Brunhilde
82 300CD-uhhh race car project???-Gerda
85 300SD- the womans daily ITS F**KING PINK!-Tsybil
92 F350 CC LB dually-back up/tow pig/long haul land yacht.-Betsey

[Image: PicMonkeyCollage_zpsc1d9cd5f.jpg]
(This post was last modified: 09-07-2013, 03:23 PM by 1911diesel.)
09-07-2013, 03:22 PM
Find Reply
JarrusJenkins Offline
Diesel for Life!
*


Posts: 11
Joined: Sep 2013
Location: Midlands, UK/GB
#43
RE: Intercooler picture thread?
(09-07-2013, 02:57 PM)MFSuper90 Wrote: How would you mist a w/a?
And I've been thinking about running a w/m setup to clean up my ports (they are grimy as hell from egr), probably not a good idea to shoot before the cooler is it?

Best after the your W/A intercooler, else the water will condense on the charge cooler elements,

Where did you get the core for your intercooler?
09-08-2013, 07:20 AM
Find Reply
winmutt Offline
bitbanger
********


Posts: 3,466
Joined: Dec 2008
Location: Atlanta GA
#44
RE: Intercooler picture thread?
Right so there is water injection in the intake (preturbo / pre & postintercooler and also misting on the intercooler itself, which can improve efficiency 20-30% of the intercooler. Injecting directly into the intake is more efficient of course (20% more efficiency at the intercooler will not yield the same results). I already plan on doing direct in the intake. I hit 105 in 4th yesterday and my egts were 1050 or so, my care is loving this cooler climate. In the summer we are 90+ all summer long usually and into the hundreds for a few weeks.
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
09-08-2013, 09:41 AM
Website Find Reply
MFSuper90 Offline
Budget Builder
*****


Posts: 1,532
Joined: May 2010
Location: MOV, Ohio
#45
RE: Intercooler picture thread?
(09-08-2013, 07:20 AM)JarrusJenkins Wrote: Best after the your W/A intercooler, else the water will condense on the charge cooler elements,

Where did you get the core for your intercooler?

Ask winmutt, he built it Tongue
'82 300D -3" straight pipe, ALDA deleted, 3in1 glowshift gauge, HX30, egr-less manifold, A/W intercooler Big Grin
'14 Ram 6.7l cummins -G56 handshaker, wishing it was deleted
09-08-2013, 10:59 AM
Find Reply
Hario' Offline
C300TD Wagon (W202)
*****


Posts: 896
Joined: Nov 2011
Location: SW London
#46
RE: Intercooler picture thread?
Totally thought I was breaking new ice with my Evo6 intercooler swap into my W210 until I saw the one fitted to the poo brown squaredy Merc in winmutts post further up.

Damn it.



Installed:

OM606/722.6, big IC, W220 brakes.
Planned:
DIY manifold, compound, 722.6 controller, built IP.
[i]Less rust..
[/i]
10-02-2013, 04:23 PM
Find Reply
Tito Offline
Holset
****


Posts: 354
Joined: Aug 2013
Location: The Netherlands
#47
RE: Intercooler picture thread?
here's some (crappy) pictures of my intercooler setup. I wanted a clean and stealth look. The hoses fit really tight under the headlamp units. There's some adjustment needed. Essentially, everything that stick out under the unit needs to be removed.

[Image: null_zpsfc53fd27.jpg]

[Image: 04B7AD10-054F-4367-AA26-B1D5D8158E3F-747...1380740995]

[Image: 474740EA-1F45-4F13-AC89-93159D833ABA-747...1380740986]

Just got the car up and running a hour ago. Sounds great Cool
(This post was last modified: 10-03-2013, 01:12 PM by Tito.)
10-03-2013, 01:11 PM
Find Reply
lgreeley83 Offline
Mr. Rumbles
*****


Posts: 775
Joined: Dec 2011
Location: near Chicago
#48
RE: Intercooler picture thread?
(09-06-2013, 02:32 PM)MFSuper90 Wrote: "What ranges of efficiency can be expected from an intercooler?
A typical air-to-air intercooler for a street application achieves between 60% and 70% efficiency, an excellent/optimum design for road racing can approach close to 90% efficiency, but requires an adequate "budget!”

Typically, a liquid-to-air intercooler achieves higher efficiencies than an air-to-air intercooler, starting at 75% efficiency and reaching peaks of 95% efficiency. Another advantage is the optional use of ice as a coolant, which is the only way to reduce the charge-air temperature below the ambient air temperature."


That quote is from Bell's website. But I also found some of the frequently ask questions contradicting sometimes.

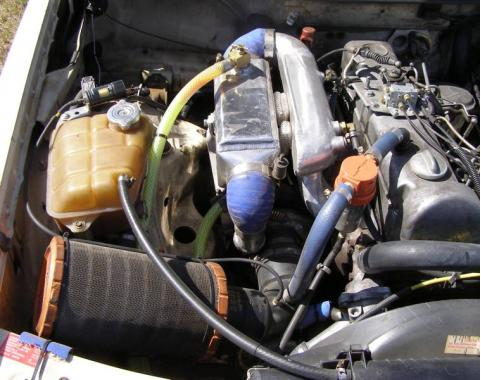

My intercooler. Winmutts old setup
[Image: null_zps0a3939db.jpg]

I imagine the manifold nuts were horrible to get at. Like punch yourself in the face annoyed.

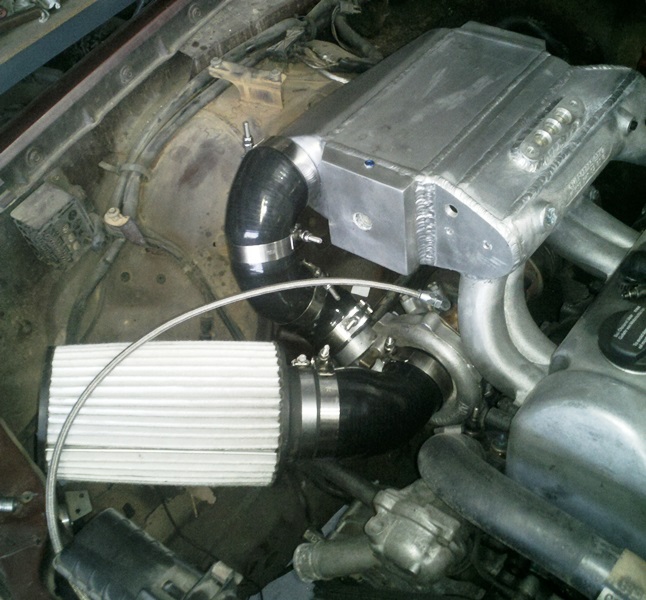

(10-03-2013, 01:11 PM)Tito Wrote: here's some (crappy) pictures of my intercooler setup. I wanted a clean and stealth look. The hoses fit really tight under the headlamp units. There's some adjustment needed. Essentially, everything that stick out under the unit needs to be removed.

[Image: null_zpsfc53fd27.jpg]

[Image: 04B7AD10-054F-4367-AA26-B1D5D8158E3F-747...1380740995]

[Image: 474740EA-1F45-4F13-AC89-93159D833ABA-747...1380740986]

Just got the car up and running a hour ago. Sounds great Cool
Looks good
" straighten up that star on the grill, assholes."

(This post was last modified: 10-03-2013, 05:02 PM by lgreeley83.)
10-03-2013, 05:01 PM
Find Reply
MFSuper90 Offline
Budget Builder
*****


Posts: 1,532
Joined: May 2010
Location: MOV, Ohio
#49
RE: Intercooler picture thread?
(10-03-2013, 05:01 PM)lgreeley83 Wrote: I imagine the manifold nuts were horrible to get at. Like punch yourself in the face

Believe it or not, they weren't that bad. But I am not a very big guy, so I Can fit my little arms and hands in places most guys can't Big Grin
'82 300D -3" straight pipe, ALDA deleted, 3in1 glowshift gauge, HX30, egr-less manifold, A/W intercooler Big Grin
'14 Ram 6.7l cummins -G56 handshaker, wishing it was deleted
10-05-2013, 10:24 AM
Find Reply
mike-81-240d Offline
more like mike-84-300d now
****


Posts: 424
Joined: Sep 2009
Location: Seattle Washington
#50
RE: Intercooler picture thread?
I like the in front of radiator placement, but some of us still have A/C. Maybe delete the mechanical fan and make it go A/A intercooler -> A/C exchanger ->Radiator -> spal. Deleting the fan in exchange for a spal would make more room to move the radiator closer to the engine. Hmm
1981 Mercedes 300TD Lowered 4 speed manual Holset HX30
10-11-2013, 07:01 PM
Find Reply


Forum Jump:


Users browsing this thread: 1 Guest(s)
