10-27-2008, 01:39 AM #1

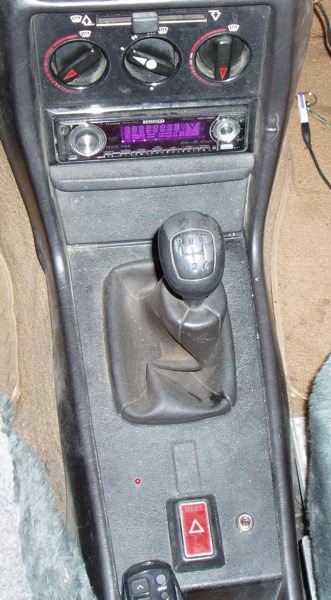

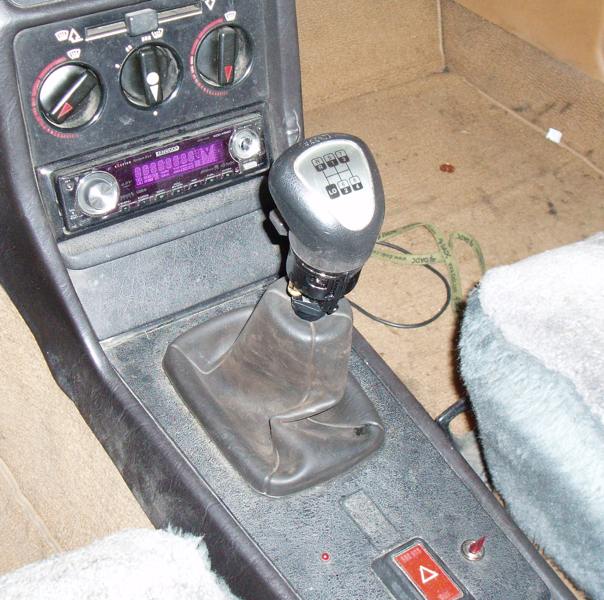

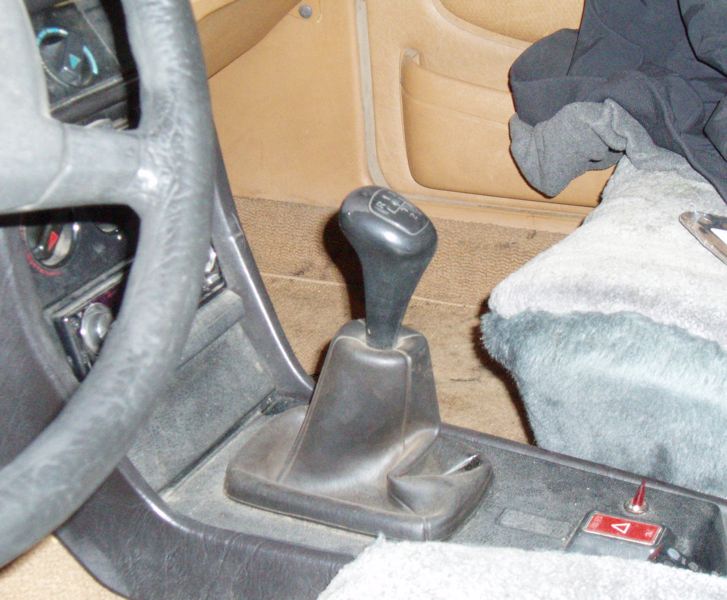

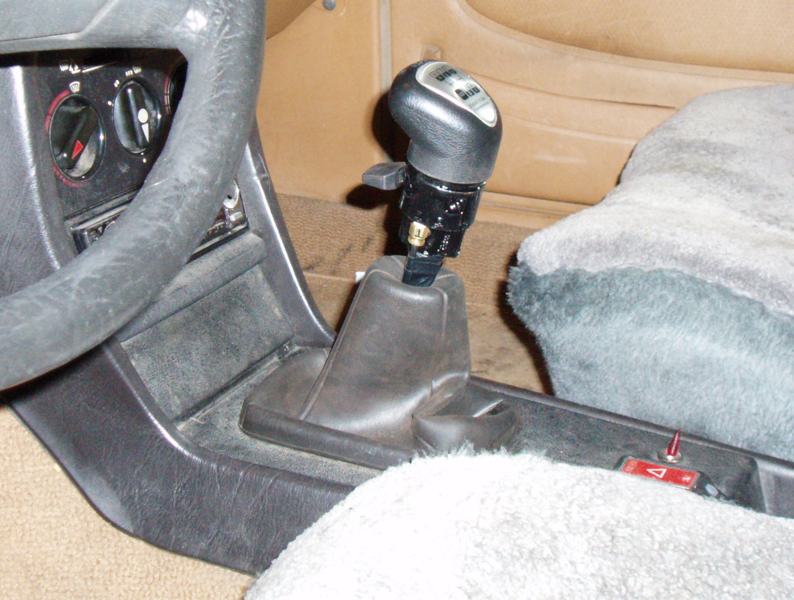

Out with the old plastic 4-speed knob, in with the new Eaton 9-speed knob with integrated air switch. Not only does it look good, its functional. I got rid of the electric solenoid valve and all the wiring and replaced it with a simple mechanical switch to control the turbo.

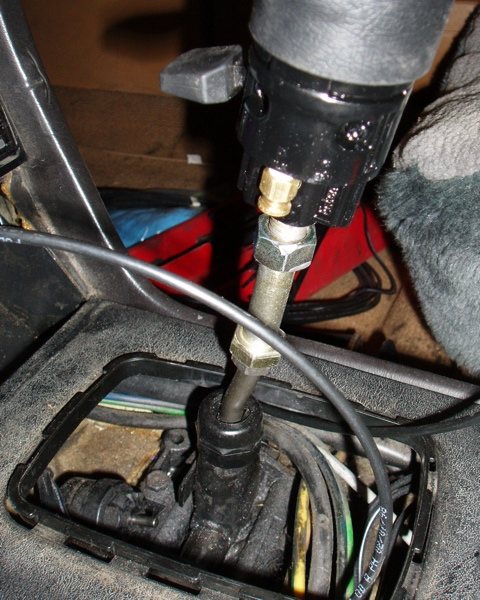

I drilled and tapped the head end of a 1/2"-13 bolt to fit the M10x1.0 shifter stalk. 5/32 air lines go from the vacuum valve on the IP to the shifter and out the passenger side of the dash to the turbo. Flip the switch and the vacuum is vented form the turbo's actuator and the vacuum source blocked. That gives me VERY fast spooling and full boost all the time.






This post was last modified: 04-27-2009, 03:59 AM by ForcedInduction.
ForcedInduction
10-27-2008, 01:39 AM #1

Out with the old plastic 4-speed knob, in with the new Eaton 9-speed knob with integrated air switch. Not only does it look good, its functional. I got rid of the electric solenoid valve and all the wiring and replaced it with a simple mechanical switch to control the turbo.

I drilled and tapped the head end of a 1/2"-13 bolt to fit the M10x1.0 shifter stalk. 5/32 air lines go from the vacuum valve on the IP to the shifter and out the passenger side of the dash to the turbo. Flip the switch and the vacuum is vented form the turbo's actuator and the vacuum source blocked. That gives me VERY fast spooling and full boost all the time.
