OM617-vs-2 stroke diesel
CRD4x4 Offline
CompoundSuperTurboDiesel4x4!
****


Posts: 284
Joined: Aug 2012
Location: MD/PA
#1
OM617-vs-2 stroke diesel
I have a '71 Jeep DJ5 (postal) that I'd like to repower with a diesel engine.
Engine choices:
'81 OM617 (195k)
Circa '57 all aluminum, valveless 4.1L V4 two-stroke (1 of 2 known to exist)
I can go "safe" with the I5 or go "all out" with the V4

Turbo choices: (2) GT2256 VGT or HE351VE with stock intercooler
Can a valveless 2-stroke be turbocharged?! Does boost go to blower or bypass? Parallel 2256's or single 351?

Thanks for your input!!
'05 Jeep Liberty CRD - 130k
'06.5 VW Jetta TDI - 160k
'82 MB 300TD - 116k
'81 MB 300TD - 195k (parting out)
'71 Jeep DJ5 - diesel conversion project
08-19-2012, 08:28 AM
Find Reply
Mark_M Offline
GT2559V
***


Posts: 205
Joined: Jun 2012
Location: Scotland
#2
RE: OM617-vs-2 stroke diesel
I would check the rev range of the 2 stroke as they are typically found in plant, marine, rail/diesel electric where the range is very narrow. This isn't much use on a road going vehicle for obvious reasons. Turbo charging is a requirement on a 2 stroke diesel in fact all the ones I can think of are compound with a supercharger as well. Forced induction is needed to scavenge the exhaust gasses. If your sure it doesn't have exhaust valves I would definitely give it a miss as it wont have any rev range and will be an utter pig to get started.
It will be a great engine but not for a car.
08-19-2012, 06:32 PM
Find Reply
dude99 Offline
K26-2
*


Posts: 45
Joined: Apr 2010
Location: Vancouver BC
#3
RE: OM617-vs-2 stroke diesel
As said above I too believe that all two stroke diesels require a blower to run at all and a turbo to make power. Is it a detroit engine? It would be interesting to know.
08-19-2012, 07:04 PM
Find Reply
ronnie Offline
GT2559V
***


Posts: 179
Joined: Aug 2010
Location: VA
#4
RE: OM617-vs-2 stroke diesel
Detroit's use exhaust valves. Turbo charging is not required, but a blower is, at least on a detroit. A turbo is often used in addition to the blower. And they do make great truck engines.

Must say that if only two exist of whatever you have I would not use it. Keep it as an antique engine and then use the 617.
08-19-2012, 08:00 PM
Find Reply
dude99 Offline
K26-2
*


Posts: 45
Joined: Apr 2010
Location: Vancouver BC
#5
RE: OM617-vs-2 stroke diesel
Maybe post some pictures of the 2 stroke as well as the info on it. I'd be curious to see it.
08-19-2012, 10:46 PM
Find Reply
Simpler=Better Offline
PORTED HEAD
*****


Posts: 2,005
Joined: Jul 2008
Location: Baltimore, MD
#6
RE: OM617-vs-2 stroke diesel
Two strokes are for chainsaws :p

I've seen the V4 in person, it looks like it could be a beast with work. Kinda wide though....
Newbie-read this: Cheap Tricks
617.952-220k-Getting built up
larsalan Wrote:I guess I need to look at this stupid ass drip shit. What you have to like mess with those elements on the pump? What a fucking hassle. then use some wire to hold the throttle open or some shit?
(This post was last modified: 08-20-2012, 09:38 AM by Simpler=Better.)
08-20-2012, 09:20 AM
Find Reply
Mark_M Offline
GT2559V
***


Posts: 205
Joined: Jun 2012
Location: Scotland
#7
RE: OM617-vs-2 stroke diesel
(08-20-2012, 09:20 AM)Simpler=Better Wrote: Two strokes are for chainsaws :p

I've seen the V4 in person, it looks like it could be a beast with work. Kinda wide though....

That would be some chainsaw Big Grin

[Image: 10000hp6.jpg]
08-20-2012, 06:52 PM
Find Reply
CRD4x4 Offline
CompoundSuperTurboDiesel4x4!
****


Posts: 284
Joined: Aug 2012
Location: MD/PA
#8
RE: OM617-vs-2 stroke diesel

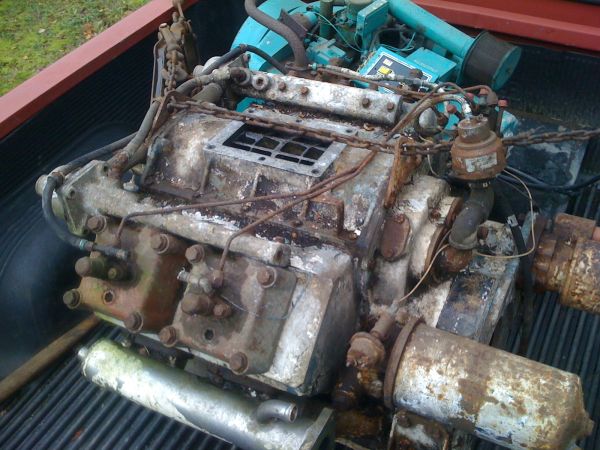

.jpg   5I85E65X33Ef3G73M9c69f0e155adb4b81b9e.jpg (Size: 63.2 KB / Downloads: 94) Wow! I wish my 300td FS post was getting this much attention! When you're done reading this, buy some parts from me.
the 2-stroke is a Harnischfeger V463 (4cy-63cid ea.) and of course it has a blower. I was wondering if pushing boost from a turbo, straight into the blower would work (not f up the blower). I don't know enough about compound systems.
I was lucky enough to get the operation manual, parts manual, etc with the engine otherwise I'd have scrap aluminum. In the manuals it shows 2 configurations: automotive and marine. Mine is marine but the only difference is the accessories. Both turn ccw.
This pic is of the "other one". I'll take a pic of line tomorrow.
'05 Jeep Liberty CRD - 130k
'06.5 VW Jetta TDI - 160k
'82 MB 300TD - 116k
'81 MB 300TD - 195k (parting out)
'71 Jeep DJ5 - diesel conversion project
08-20-2012, 09:11 PM
Find Reply
aaa Offline
GT2256V
******


Posts: 913
Joined: May 2009
Location:
#9
RE: OM617-vs-2 stroke diesel
Eh I don't think you'd have trouble turboing it. I do wonder about backpressure though, higher than boost levels probably aren't sustainable.
08-20-2012, 09:27 PM
Find Reply
dude99 Offline
K26-2
*


Posts: 45
Joined: Apr 2010
Location: Vancouver BC
#10
RE: OM617-vs-2 stroke diesel
Whats the output side look like? Would it be hard to mount a transmission to?
08-20-2012, 09:45 PM
Find Reply
CRD4x4 Offline
CompoundSuperTurboDiesel4x4!
****


Posts: 284
Joined: Aug 2012
Location: MD/PA
#11
RE: OM617-vs-2 stroke diesel

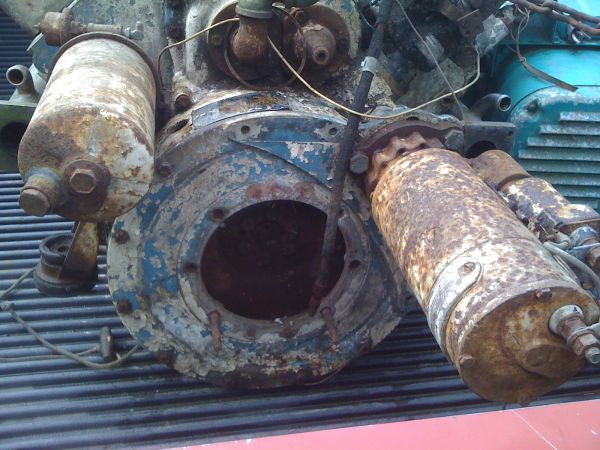

.jpg   5Ge5Kc5M63L13F13J4c69f7f7d9e7729919e9.jpg (Size: 60.37 KB / Downloads: 63) its apparently an sae3 bolt pattern, but how do I find out what bellhousings are sae3?.
(08-20-2012, 09:45 PM)dude99 Wrote: Whats the output side look like? Would it be hard to mount a transmission to?
'05 Jeep Liberty CRD - 130k
'06.5 VW Jetta TDI - 160k
'82 MB 300TD - 116k
'81 MB 300TD - 195k (parting out)
'71 Jeep DJ5 - diesel conversion project
08-21-2012, 05:58 AM
Find Reply
CRD4x4 Offline
CompoundSuperTurboDiesel4x4!
****


Posts: 284
Joined: Aug 2012
Location: MD/PA
#12
RE: OM617-vs-2 stroke diesel
Turbo or not turbo? That is the question.
After fingering through the manuals (again) the only references to rpms was found in the table of limits, which gives 600 and 2800 as the parameters. So if idle is 600 then 2800 must be optimal operating rpm. Not red line, right?
Is there a tranny that anyone can think of that'd work with that?
The only hp rating was on a print ad that I got from ebay. It said 160 hp.
Any idea what kind of torque that would equate to?

PS does anyone know how to make pic sizes smaller on a 1st gen droid? I have pics, they're just too big.
'05 Jeep Liberty CRD - 130k
'06.5 VW Jetta TDI - 160k
'82 MB 300TD - 116k
'81 MB 300TD - 195k (parting out)
'71 Jeep DJ5 - diesel conversion project
08-21-2012, 01:09 PM
Find Reply
dude99 Offline
K26-2
*


Posts: 45
Joined: Apr 2010
Location: Vancouver BC
#13
RE: OM617-vs-2 stroke diesel
Well most industrial diesels, such as those in tractor trailers and the like, redline around 3000RPM so 2800 could quite possibly be the red line. I haven't ever seen a bolt patter quite like that before, but I don't have a lot of experience with industrial diesels. Anything can be made to fit with an adapter plate. The only problem I can see with it is that starter. It looks like it could be in the way.
08-21-2012, 09:29 PM
Find Reply
Tmadia Offline
K26-2
*


Posts: 29
Joined: Jul 2012
Location: Southern CA
#14
RE: OM617-vs-2 stroke diesel
Looks like an SAE bolt pattern to me.

http://www.garbee.net/~cabell/sae.htm
'85 300CD
08-21-2012, 10:23 PM
Find Reply
Simpler=Better Offline
PORTED HEAD
*****


Posts: 2,005
Joined: Jul 2008
Location: Baltimore, MD
#15
RE: OM617-vs-2 stroke diesel
Well shit that makes it easy
