722.6 Special controller
olefejer Offline
GT2559V
***


Posts: 197
Joined: Nov 2009
Location: Denmark
#1
722.6 Special controller
Hi all
Just want to share my progress at controlling the 722.6 fully electronic gearbox width the Arduino Mega and my own PCB and programming.


Here is a little video showing the Manuel mode
http://www.youtube.com/watch?v=hw2tKdLJvl0

Here showing the menu system
http://www.youtube.com/watch?v=vH0kkp6WSss

There is still some work to do but works great in both automatic and manuel mode :-)


Attached Files Image(s)

1996 MB SL320 Now OM606 7 mm pump elements (myna), KKD manifold, HE341VE, 3,5" downpipe, 3" exhaust, big IC, 722.6 gearbox controller, also controls (Turbo VNT, EGT, BOOST, EGP.)
11-12-2011, 03:25 PM
Find Reply
whipplem104 Offline
Holset
****


Posts: 559
Joined: Oct 2011
Location: Seattle, Wa
#2
RE: 722.6 Special controller
Good to see. Is the controller integrated with the PCS tcu and you are doing adjustments through your interface? Or did you develop your own tcu.
11-12-2011, 03:35 PM
Find Reply
olefejer Offline
GT2559V
***


Posts: 197
Joined: Nov 2009
Location: Denmark
#3
RE: 722.6 Special controller
(11-12-2011, 03:35 PM)whipplem104 Wrote: Good to see. Is the controller integrated with the PCS tcu and you are doing adjustments through your interface? Or did you develop your own tcu.

Hi No it is totally on its own, on the picture to the left you see the mosfets controlling the walve width different PWM, depending on load and so on, but i think you know all about that ;-)

The main reason is that i have full control over TPS and boost giving me the momentum from the engine, and you can have the LCD in the car all the time.
1996 MB SL320 Now OM606 7 mm pump elements (myna), KKD manifold, HE341VE, 3,5" downpipe, 3" exhaust, big IC, 722.6 gearbox controller, also controls (Turbo VNT, EGT, BOOST, EGP.)
11-12-2011, 03:44 PM
Find Reply
whipplem104 Offline
Holset
****


Posts: 559
Joined: Oct 2011
Location: Seattle, Wa
#4
RE: 722.6 Special controller
Looks cool. Not quite as much control over the transmission in the scaling but functional. Did you sell the PCS setup. There is new firmware now and soon to be even newer. For tuning in the car you can use the PCS touchscreen data logger. It will also do boost control. It would probably do the the electronic rack also. I have not looked into that. I used my tcu for boost control though for a long time.
I like it though. Simple and to the point. And it looks like it is doing all features for you. What are the shifts like? I finally got all the scaling for the pressures and temperatures really nice on my cars.
11-12-2011, 03:51 PM
Find Reply
olefejer Offline
GT2559V
***


Posts: 197
Joined: Nov 2009
Location: Denmark
#5
RE: 722.6 Special controller
Hi
The shifts are totally smooth to wery hard depending on how i adjust it.
The shift points are a parabolic curve, as you know i want it to shift almost at the same speed from 0% TPS to 25% TPS and so on and then it gets steeper and steeper the more TPS you give it.

Regarding the shift Firmness i only have 2 point to start width, and a line in between. and that is calculated, depending of TPS + Boost
And can be controlled individual in up and down shift
As the TPS is calculated, in my case 35% and the boost the rest 65%.

1996 MB SL320 Now OM606 7 mm pump elements (myna), KKD manifold, HE341VE, 3,5" downpipe, 3" exhaust, big IC, 722.6 gearbox controller, also controls (Turbo VNT, EGT, BOOST, EGP.)
11-12-2011, 04:23 PM
Find Reply
whipplem104 Offline
Holset
****


Posts: 559
Joined: Oct 2011
Location: Seattle, Wa
#6
RE: 722.6 Special controller
Very cool. Looks like a lot of work. But I like the adjustability and the fact that it works with your other features. I have to say that I am tired of driving around with a laptop. That is why I am finally getting a datalogger for myself. I just wish that it would tune my engine also. But I normally do not have to mess with that very often. I am going to have the datalogger docked in both of my cars. So I can switch back and forth really easy.
11-12-2011, 04:32 PM
Find Reply
olefejer Offline
GT2559V
***


Posts: 197
Joined: Nov 2009
Location: Denmark
#7
RE: 722.6 Special controller
(11-12-2011, 04:32 PM)whipplem104 Wrote: Very cool. Looks like a lot of work. But I like the adjustability and the fact that it works with your other features. I have to say that I am tired of driving around with a laptop. That is why I am finally getting a datalogger for myself. I just wish that it would tune my engine also. But I normally do not have to mess with that very often. I am going to have the datalogger docked in both of my cars. So I can switch back and forth really easy.
Alot of work! On purpuse i did not count the time it took ;-)
1996 MB SL320 Now OM606 7 mm pump elements (myna), KKD manifold, HE341VE, 3,5" downpipe, 3" exhaust, big IC, 722.6 gearbox controller, also controls (Turbo VNT, EGT, BOOST, EGP.)
11-12-2011, 04:38 PM
Find Reply
whipplem104 Offline
Holset
****


Posts: 559
Joined: Oct 2011
Location: Seattle, Wa
#8
RE: 722.6 Special controller
I know. Sometimes it is better just not to know. When I think of how much time I have invested in things. I could get a part time job at the grocery store and make enough money to drive a new Ferrari. Honestly though I like the projects as much as the final product. Looks like you are in the same sick boat.
11-12-2011, 04:45 PM
Find Reply
olefejer Offline
GT2559V
***


Posts: 197
Joined: Nov 2009
Location: Denmark
#9
Smile  RE: 722.6 Special controller
You are so RIGHT Smile
1996 MB SL320 Now OM606 7 mm pump elements (myna), KKD manifold, HE341VE, 3,5" downpipe, 3" exhaust, big IC, 722.6 gearbox controller, also controls (Turbo VNT, EGT, BOOST, EGP.)
11-12-2011, 04:49 PM
Find Reply
olefejer Offline
GT2559V
***


Posts: 197
Joined: Nov 2009
Location: Denmark
#10
RE: 722.6 Special controller
Hi again

Done some more work on the controller today, actually now driving it in the car.

It is fun work when it works :-)

Here is a test in automatic mode.
http://www.youtube.com/watch?v=vxgUkKPyp6o
1996 MB SL320 Now OM606 7 mm pump elements (myna), KKD manifold, HE341VE, 3,5" downpipe, 3" exhaust, big IC, 722.6 gearbox controller, also controls (Turbo VNT, EGT, BOOST, EGP.)
11-19-2011, 10:44 AM
Find Reply
iheartboost Offline
Holset
****


Posts: 422
Joined: Jul 2011
Location: Southeast Mi
#11
RE: 722.6 Special controller
so i know you have that little button. do you think you'll be able to incorporate the stock snifter to shift in manual mode? or will it be some other system like a paddle shift?
1998 E300TD 7.5mm pump and hx35 to come!
00 Mustang gt drift car

11-20-2011, 08:57 AM
Find Reply
Allu D. Offline
Naturally-aspirated
*


Posts: 10
Joined: Jan 2010
Location: Finland
#12
RE: 722.6 Special controller
(11-12-2011, 03:51 PM)whipplem104 Wrote: There is new firmware now
How new is it and where to get it?

11-20-2011, 12:01 PM
Find Reply
olefejer Offline
GT2559V
***


Posts: 197
Joined: Nov 2009
Location: Denmark
#13
RE: 722.6 Special controller
(11-20-2011, 08:57 AM)iheartboost Wrote: so i know you have that little button. do you think you'll be able to incorporate the stock snifter to shift in manual mode? or will it be some other system like a paddle shift?
Yes i had the little joystick just for testing.
Left = Esc.
Rigth = Enter
Up = Up and in Manuel mode upshift
Down = Down and in Manuel mode Downshift
But it would make totally sence to use paddleshifter for up and down.
Regarding the shifter. in automatic mode, it do downshift if you are in 4 gear and pull the leaver in to 3 then it will shift down to 3.
But are you thinking of the newer leaver where you have the +/- sign ?
1996 MB SL320 Now OM606 7 mm pump elements (myna), KKD manifold, HE341VE, 3,5" downpipe, 3" exhaust, big IC, 722.6 gearbox controller, also controls (Turbo VNT, EGT, BOOST, EGP.)
11-20-2011, 12:10 PM
Find Reply
iheartboost Offline
Holset
****


Posts: 422
Joined: Jul 2011
Location: Southeast Mi
#14
RE: 722.6 Special controller
yea a bump up and down. I doubt the stock shifter could be modified in that manner.

maybe just a whole different assembly for racing?

idk just talking out my ass more or less haha
1998 E300TD 7.5mm pump and hx35 to come!
00 Mustang gt drift car

11-20-2011, 04:30 PM
Find Reply
olefejer Offline
GT2559V
***


Posts: 197
Joined: Nov 2009
Location: Denmark
#15
RE: 722.6 Special controller
(11-20-2011, 04:30 PM)iheartboost Wrote: yea a bump up and down. I doubt the stock shifter could be modified in that manner.

maybe just a whole different assembly for racing?

idk just talking out my ass more or less haha

Ha Ha no problem.
The controller now know witch gear you are in P-R-N-D-4-3-2-1
But i actually only need to know PRND, for it to work.

If you think race, 2 simple microswitch on any shifter would work. (manual mode)



1996 MB SL320 Now OM606 7 mm pump elements (myna), KKD manifold, HE341VE, 3,5" downpipe, 3" exhaust, big IC, 722.6 gearbox controller, also controls (Turbo VNT, EGT, BOOST, EGP.)
11-21-2011, 01:35 PM
Find Reply
olefejer Offline
GT2559V
***


Posts: 197
Joined: Nov 2009
Location: Denmark
#16
RE: 722.6 Special controller
Soon paddleShifter in the car :-)
Just bougt the AMG Paddleshifter on ebay
And made the interface for my Controller
The god thing is that i still only need the 2 wire going true the sterring collum, i thing i call it gearcolum in the video Undecided

http://www.youtube.com/watch?v=Z7gg0ejD0YA
1996 MB SL320 Now OM606 7 mm pump elements (myna), KKD manifold, HE341VE, 3,5" downpipe, 3" exhaust, big IC, 722.6 gearbox controller, also controls (Turbo VNT, EGT, BOOST, EGP.)
12-23-2011, 02:37 PM
Find Reply
iheartboost Offline
Holset
****


Posts: 422
Joined: Jul 2011
Location: Southeast Mi
#17
RE: 722.6 Special controller
man thats cool!
1998 E300TD 7.5mm pump and hx35 to come!
00 Mustang gt drift car

12-23-2011, 10:52 PM
Find Reply
olefejer Offline
GT2559V
***


Posts: 197
Joined: Nov 2009
Location: Denmark
#18
RE: 722.6 Special controller

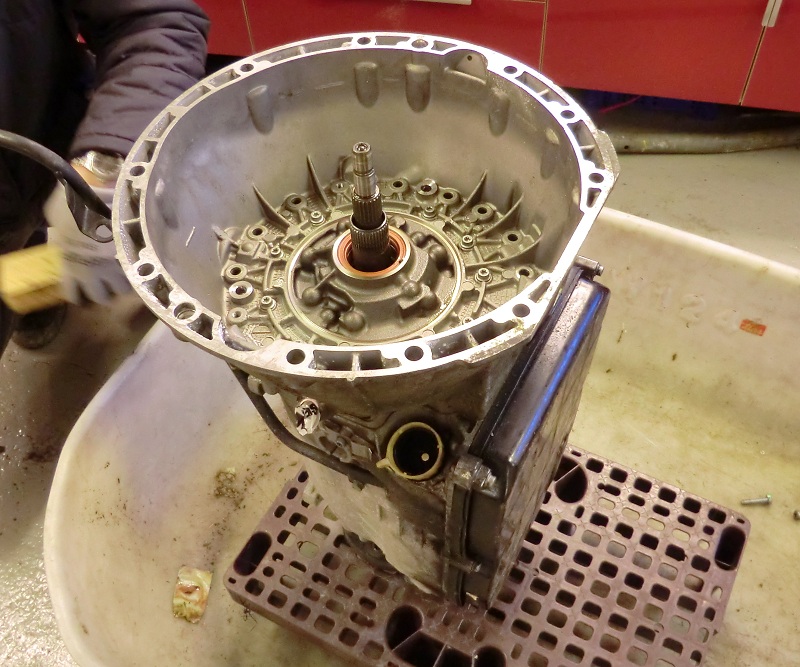

Just mountet the SLK 55 AMG gearbox on my OM606.

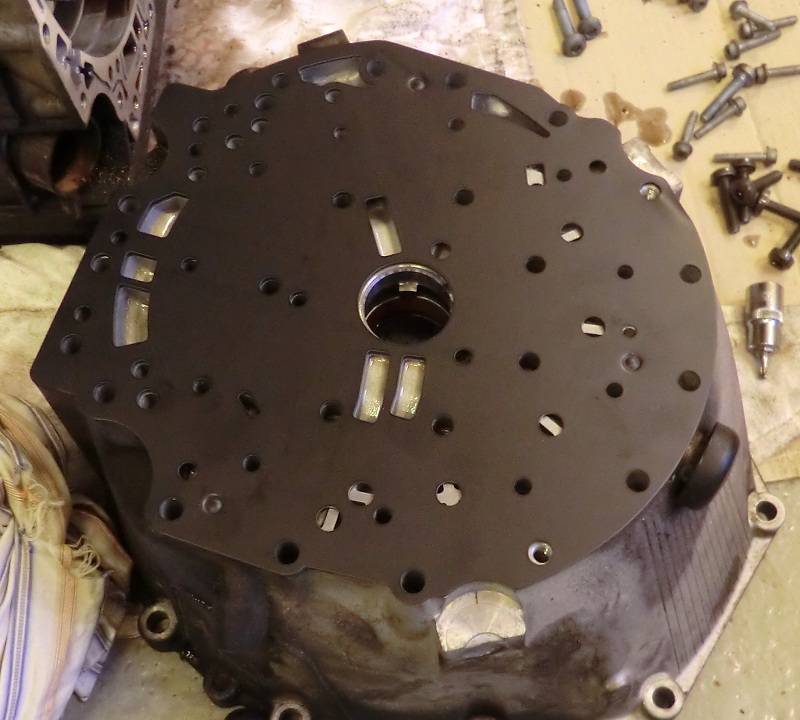

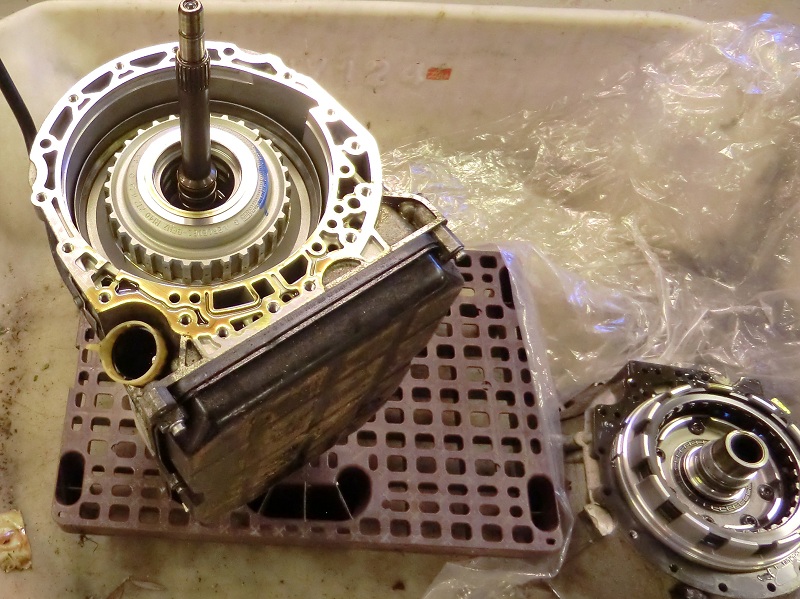

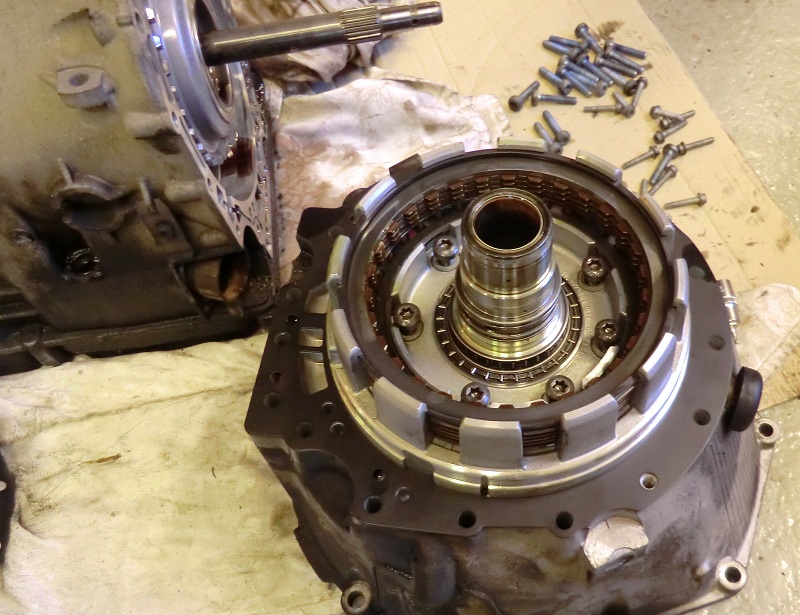

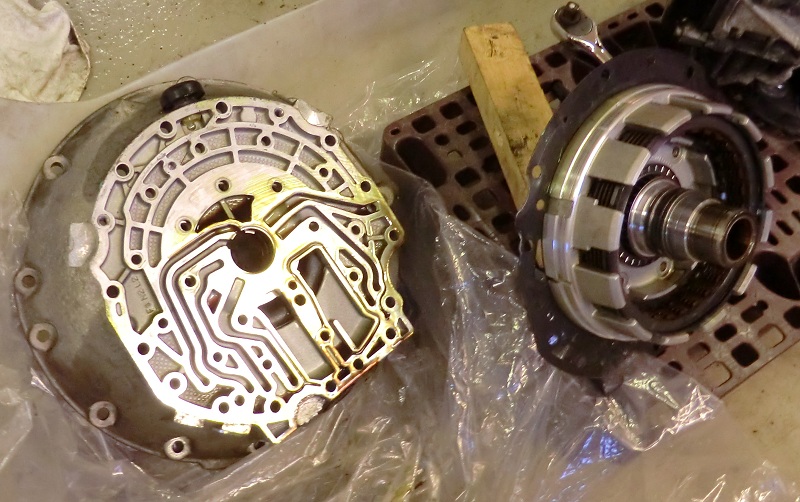

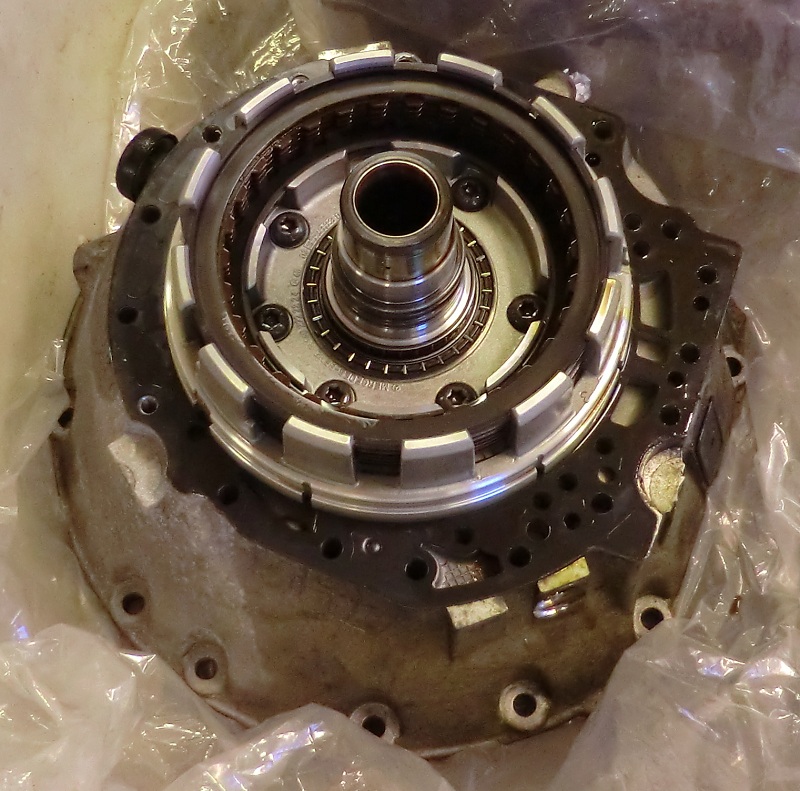

As it comes from a V8 i had to change the Converter housing and the converter.
Thanks to Drake for the description.
I has totally great shifts :-)
But the bad thing is that there is still issues in 3 to 4 gear, damn. but better as the old ones.



Attached Files Image(s)

1996 MB SL320 Now OM606 7 mm pump elements (myna), KKD manifold, HE341VE, 3,5" downpipe, 3" exhaust, big IC, 722.6 gearbox controller, also controls (Turbo VNT, EGT, BOOST, EGP.)
12-29-2011, 02:57 PM
Find Reply
jeemu Offline
"some people do, some people talk."
****


Posts: 457
Joined: Nov 2009
Location: Finland
#19
RE: 722.6 Special controller
Hi Ole. What was that previous box? Why change?
How much torg you have on 606? Did any reinforce that AMG box?

Guestion age Big Grin
OM605 600hp diesel drag car build with BMW E30 chassis
12-29-2011, 03:01 PM
Find Reply
olefejer Offline
GT2559V
***


Posts: 197
Joined: Nov 2009
Location: Denmark
#20
RE: 722.6 Special controller
(12-29-2011, 03:01 PM)jeemu Wrote: Hi Ole. What was that previous box? Why change?
How much torg you have on 606? Did any reinforce that AMG box?

Guestion age Big Grin

Hi the old was history in 3 - 4 gear
The old was standart from OM606 Turbo

Nothing has been done to the AMG just mounted as i received it.
it is a year 2004 gearbox
torg i think around 600 Nm best guess 2 bar + myna you know.
1996 MB SL320 Now OM606 7 mm pump elements (myna), KKD manifold, HE341VE, 3,5" downpipe, 3" exhaust, big IC, 722.6 gearbox controller, also controls (Turbo VNT, EGT, BOOST, EGP.)
12-29-2011, 03:12 PM
Find Reply
jeemu Offline
"some people do, some people talk."
****


Posts: 457
Joined: Nov 2009
Location: Finland
#21
RE: 722.6 Special controller
Really nice hold up that 606 box. Is that AMG 580nm box.

I try to reinforce that 5wa580 what i have, as i think at it can hold up my tiny engine, but boy i love those nitrous Big GrinBig Grin
OM605 600hp diesel drag car build with BMW E30 chassis
12-29-2011, 03:49 PM
Find Reply
olefejer Offline
GT2559V
***


Posts: 197
Joined: Nov 2009
Location: Denmark
#22
RE: 722.6 Special controller
(12-29-2011, 03:49 PM)jeemu Wrote: Really nice hold up that 606 box. Is that AMG 580nm box.

I try to reinforce that 5wa580 what i have, as i think at it can hold up my tiny engine, but boy i love those nitrous Big GrinBig Grin

Yes it is the 722.636 580 Nm Big Grin
Tomorrow i will try ewerything to adjust the shift between 3 to 4 better.

of course you run nitros now, you crasy man Big Grin
1996 MB SL320 Now OM606 7 mm pump elements (myna), KKD manifold, HE341VE, 3,5" downpipe, 3" exhaust, big IC, 722.6 gearbox controller, also controls (Turbo VNT, EGT, BOOST, EGP.)
12-29-2011, 03:58 PM
Find Reply
majesty78 Offline
GT2559V
***


Posts: 226
Joined: Aug 2010
Location: Austria
#23
RE: 722.6 Special controller
Jeemu what do you think is max safe torque for w580 722.6 transmission?
Mercedes Benz W210 E-Class 320CDI, lowered 2.5", 18" AMG wheels, Decat, EGR removed, Tumble flaps removed, C30 AMG injectors, 400kpa MAP, Custom GT2566XTV turbo, SW tweaked to 300+hp/750NmBig Grin
12-29-2011, 06:23 PM
Find Reply
jeemu Offline
"some people do, some people talk."
****


Posts: 457
Joined: Nov 2009
Location: Finland
#24
RE: 722.6 Special controller
(12-29-2011, 06:23 PM)majesty78 Wrote: Jeemu what do you think is max safe torque for w580 722.6 transmission?
Hi. I have told at ican handle 700nm, but dont know for sure. I reinforce my own so i dont have to test it.
OM605 600hp diesel drag car build with BMW E30 chassis
12-30-2011, 04:06 AM
Find Reply
whipplem104 Offline
Holset
****


Posts: 559
Joined: Oct 2011
Location: Seattle, Wa
#25
RE: 722.6 Special controller
Stock transmissions can handle a lot more torque with standalone control because of pressure control. But they are limited to around 5-600 wtq if you are trying to put it down with drag slicks.
But you will be braking almost all of the drive line components before the trans. And these numbers are related to heavier cars than ours. The chrysler lx cars are 4,000 lbs and this is about their limit.
01-01-2012, 08:09 PM
Find Reply
johan84 Offline
K26-2
*


Posts: 25
Joined: Mar 2011
Location: holland
#26
RE: 722.6 Special controller
somebody ever thought about a 722.362 this is on the 600 se v12 it weight is 2180 kg (4806 lbs)
that engine has 580nm and 408hp and the gearbox is not electronic
and it is not very expensive in europe

greets johan
(This post was last modified: 01-05-2012, 05:14 AM by johan84.)
01-05-2012, 05:13 AM
Find Reply
olefejer Offline
GT2559V
***


Posts: 197
Joined: Nov 2009
Location: Denmark
#27
Smile  RE: 722.6 Special controller
Yes Paddle is in and working
So mutch more fun ;-)
if rotated wrong watch in HD
http://www.youtube.com/watch?v=o09fxRZ5vmU
1996 MB SL320 Now OM606 7 mm pump elements (myna), KKD manifold, HE341VE, 3,5" downpipe, 3" exhaust, big IC, 722.6 gearbox controller, also controls (Turbo VNT, EGT, BOOST, EGP.)
(This post was last modified: 01-22-2012, 12:02 PM by olefejer.)
01-22-2012, 11:58 AM
Find Reply
Booster Offline
GT2559V
***


Posts: 240
Joined: Jan 2012
Location: Dorset, UK
#28
RE: 722.6 Special controller
Olefejer, Would you consider making a second Item to sell? PM me If you are.
01-22-2012, 12:38 PM
Find Reply
jeemu Offline
"some people do, some people talk."
****


Posts: 457
Joined: Nov 2009
Location: Finland
#29
RE: 722.6 Special controller
(01-22-2012, 11:58 AM)olefejer Wrote: Yes Paddle is in and working
So mutch more fun ;-)
if rotated wrong watch in HD
http://www.youtube.com/watch?v=o09fxRZ5vmU
That is really nice Cool

OM605 600hp diesel drag car build with BMW E30 chassis
01-28-2012, 03:11 PM
Find Reply
raudmees Offline
Naturally-aspirated
*


Posts: 9
Joined: Jul 2011
Location: SE
#30
RE: 722.6 Special controller
(12-29-2011, 02:57 PM)olefejer Wrote: Just mountet the SLK 55 AMG gearbox on my OM606.
As it comes from a V8 i had to change the Converter housing and the converter.
Thanks to Drake for the description.
I has totally great shifts :-)
But the bad thing is that there is still issues in 3 to 4 gear, damn. but better as the old ones.

What is stronger in the 722.636 comparing to the standard 722.626 from 606 turbodiesel?
If to read this document http://www.scribd.com/doc/79543640/722-6 on page 10.
It says that quite many gearboxes have the same number of friction and steel discs as the 722.636. It seems that v8 over 5 liters and all v12 have the W5A580 gearbox. Also from looking at different scrapyards it seems that the 722.636 also was in the 270cdi. But w210 with 606td has the W5A580. At least if the document I'm refering to is correct.

Which of all these gearboxes should be the strongest?

Edit:
Sorry my bad. Standard transmission in 300td seems to be 722.608 and should be a W5A330.
(This post was last modified: 07-07-2012, 05:53 PM by raudmees.)
07-07-2012, 02:38 AM
Find Reply
gaiex Offline
K26-2
*


Posts: 33
Joined: Feb 2012
Location: Portugal
#31
RE: 722.6 Special controller
So the 722.636 and the 722.626 are the best for handling with high torque?
How much can they hold?

Thanks
10-27-2012, 11:10 PM
Find Reply


Forum Jump:


Users browsing this thread: 1 Guest(s)
