hydroboost?
JB3 Offline
Superturbo
*****


Posts: 1,795
Joined: Apr 2009
Location: CNY / RI
#1
hydroboost?
Looking at what its going to take to get my OM617 into my 115, and id like to keep that stock oil filter which the vacuum boost canister hits.

Searching around online, I find a lot of aftermarket hydroboost setups available. What do people think about adapting one of these setups to an MB? Sure would be convenient if I had a wagon engine to put in, then conceivably I could use the SLS pump setup to run the hydroboost brakes
1974 240D 617 turbo swap, W201 5-speed, in the works project
1983 240D 616 stock, DD
1989 Chevy Astro, 617 turbo swap, T5 5-speed, 4.56 diff, work van

(This post was last modified: 11-07-2011, 05:56 PM by JB3.)
11-07-2011, 05:54 PM
Find Reply
iheartboost Offline
Holset
****


Posts: 422
Joined: Jul 2011
Location: Southeast Mi
#2
RE: hydroboost?
whats hydroboost? all i could find is its power steering ?

03 Jetta TDI wagon
00 Mustang gt drift car
02 Honda insight
Eyes on a om648 powered vehicle Smile
11-07-2011, 06:57 PM
Find Reply
DeliveryValve Offline
Superturbo
*****


Posts: 1,338
Joined: Feb 2008
Location:
#3
RE: hydroboost?
Yeah, what is hydroboost?

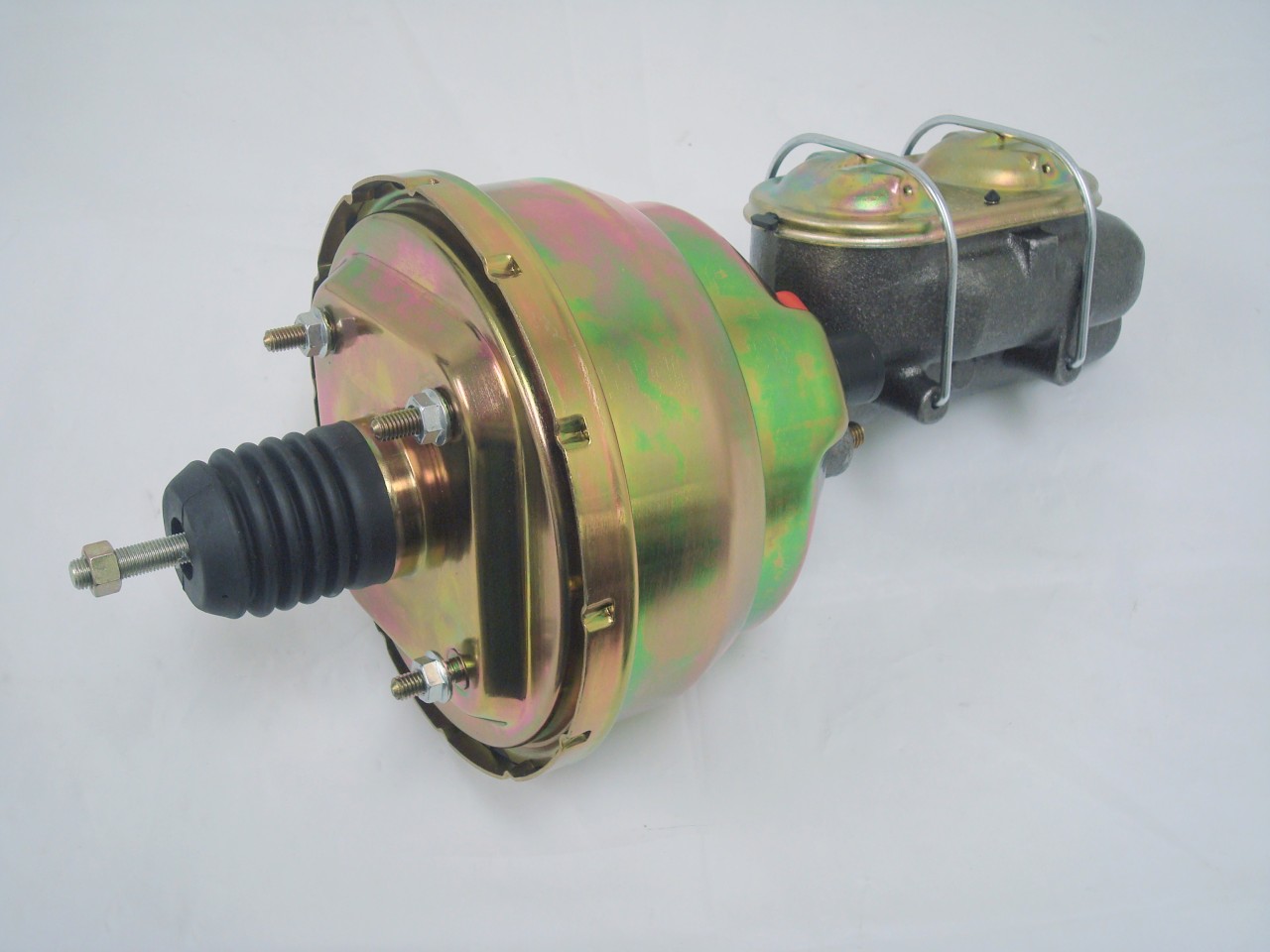

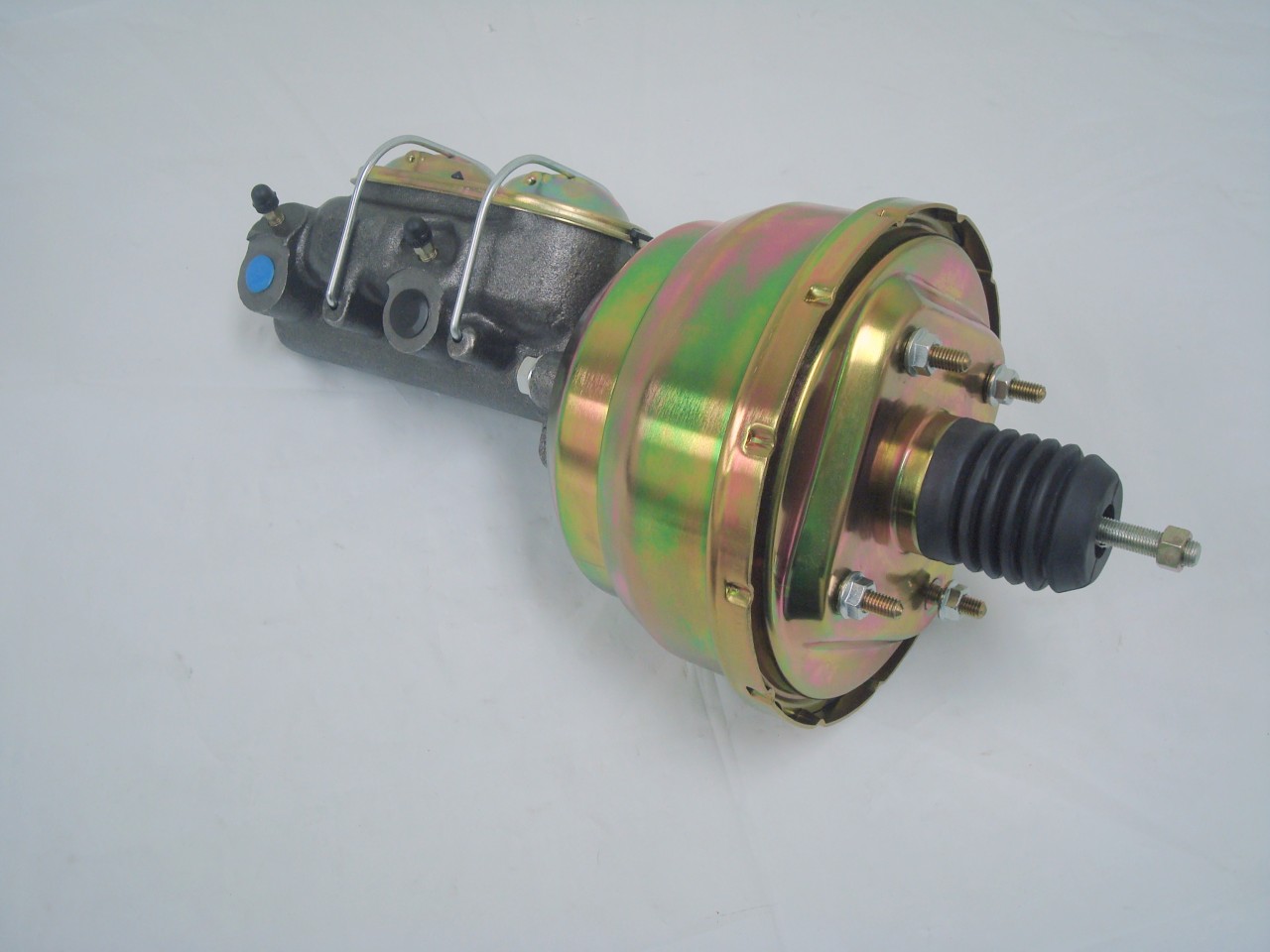

Maybe you can keep the same arrangement, but use a narrower booster. Like a 7 inch dual diaphragm typically found on Street Rods.


.jpg   7inchDiameterBrakeBooster.jpg (Size: 120.95 KB / Downloads: 461)

.jpg   7inchDiameterBrakeBooster2.jpg (Size: 127.16 KB / Downloads: 827)

http://www.speedwaymotors.com/Garage-Sal...55991.html

http://www.ebay.com/itm/7-inch-Dual-Brak...2225wt_754


Or move the master cylinder.
Some example pictures.

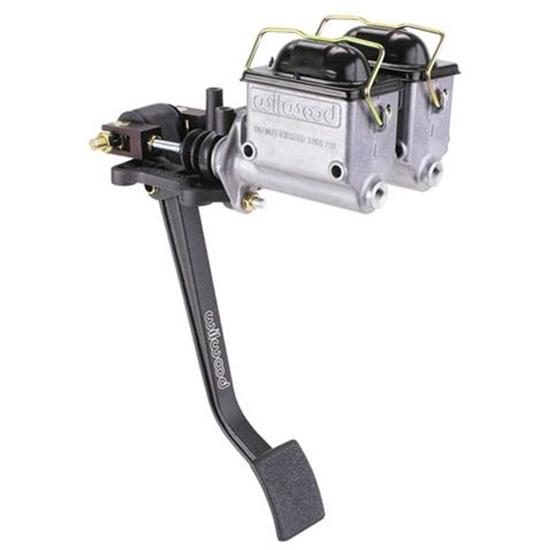

Under the floor with Brake pedal.

.jpg   UnderTheFloorMountedMasterCylinder.jpg (Size: 15.53 KB / Downloads: 502)

Under the floor with booster and brake and clutch pedal.

.jpg   UnderTheFloorMountedMC_Booster_Clutch.jpg (Size: 20.5 KB / Downloads: 439)

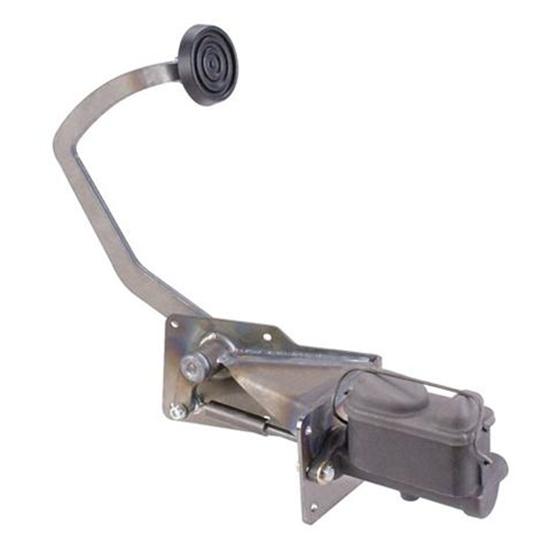

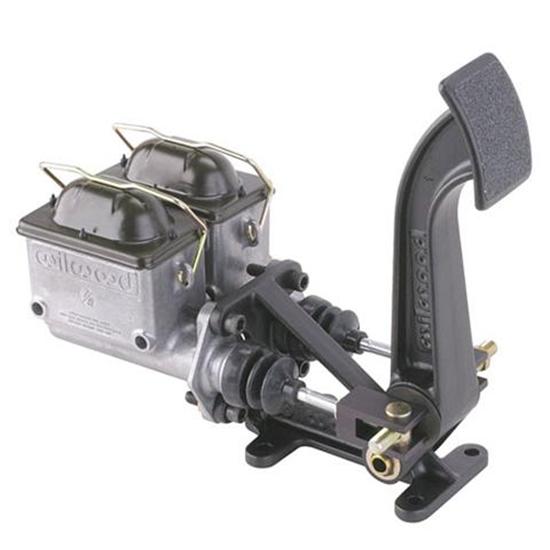

And other mounting styles of the master cylinder.


.jpg   FloorMountedMasterCylinder.jpg (Size: 25.65 KB / Downloads: 1,487)

.jpg   ReverseMountedMasterCylinder.jpg (Size: 19.14 KB / Downloads: 457)


.



Gota love Mercedes Diesels!



.
11-07-2011, 08:08 PM
Find Reply
waz Offline
GTA2056V
**


Posts: 77
Joined: Aug 2010
Location: NJ
#4
RE: hydroboost?
I don't know if this will help or not but, I've got a hydro-boost system on my '04 Chevy Avalanche from the factory. I like it. I don't know why they put it on my gasser but, it's there.

I've also seen the system on a 2002 6.0L (Gas) Silverado 1500HD, and 6.6L Duramax pickups.

The hydro-boost system from GM uses the power steering pump to provide hydraulic brake assistance.
***********************************************
1993 300D 2.5L turbo. W124.128   2.5L 602.962
1991 350SD W126.134  Transplanted a 3.0L 603.961 into it.

11-07-2011, 09:11 PM
Find Reply
DeliveryValve Offline
Superturbo
*****


Posts: 1,338
Joined: Feb 2008
Location:
#5
RE: hydroboost?
(11-07-2011, 09:11 PM)waz Wrote: ...
The hydro-boost system from GM uses the power steering pump to provide hydraulic brake assistance.

Oh yeah I've seen those on old Caddies and some trucks.



.
Gota love Mercedes Diesels!



.
11-07-2011, 09:41 PM
Find Reply
Captain America Offline
Boostin' & Roostin'
*****


Posts: 2,219
Joined: Jun 2010
Location: Riverside, California USA
#6
RE: hydroboost?
My dads '90 Chev Dually has hydro boost. They general put it on larger work trucks just because it provides MUCH more braking power and will provide more braking assist after the engine is shut off. Also much more compact in size.

[Image: 172799d1238269038-hydroboost-conversion-...iagram.gif]

[Image: Hydroboost.JPG]

1982 300D Turbo ... 3,6xxlbs, No fan, No AC, Hood Stack, No ALDA, No rear bumper and stuffed front, A/W Intercooled, Injectors by Greezer and HUGE Pre-Chambers with help from OM616 & Simpler=Better, Fuel Cranked up, 60 Trim Compressor wheel, EGT, EMP, Boost 50" Rigid Radius bar on roof Aux tank for a total of 48 Gal Of Diesel! Odyssey PC-1750 Battery in trunk, 27"x8.5"/R14 Maxxis BigHorn Mud Terrains, In June '14 issue of Off Road Mag

AX15 Jeep Trans swap in progress....

11-08-2011, 02:57 AM
Find Reply
willbhere4u Offline
Six in a row make her go!
*****


Posts: 2,507
Joined: Apr 2009
Location: mile high
#7
RE: hydroboost?
Old e23 BMW's 733I,735I had hydro boost back in the early 80sBig Grin
1987 300SDL 6spd manual om606.962 swap project
1985 300td euro 5spd wagon running
(This post was last modified: 11-08-2011, 04:13 PM by willbhere4u.)
11-08-2011, 04:10 PM
Find Reply
yankneck696 Offline
Build it so strong & blow it up good !!!
****


Posts: 395
Joined: Aug 2009
Location: Pt. Charlotte FL
#8
RE: hydroboost?
Some of the S-19s had a real small vac booster. Should bolt right in place of yours. Hotrodders used them & A-10s w/ 350s. Sold alot of them while in auto salvage.

Ed
11-24-2011, 06:43 AM
Find Reply
kmaser Offline
Turbocharged G-Wagen
***


Posts: 125
Joined: Jun 2009
Location: Canada
#9
RE: hydroboost?
I have hydroboost on my g wagen with an OM617a, HUGE improvement in braking performance and free'd up some space.
12-18-2011, 02:21 PM
Find Reply
JB3 Offline
Superturbo
*****


Posts: 1,795
Joined: Apr 2009
Location: CNY / RI
#10
RE: hydroboost?
(12-18-2011, 02:21 PM)kmaser Wrote: I have hydroboost on my g wagen with an OM617a, HUGE improvement in braking performance and free'd up some space.

awesome! was it stock to the G-wagon? or did you move it in from something else?
1974 240D 617 turbo swap, W201 5-speed, in the works project
1983 240D 616 stock, DD
1989 Chevy Astro, 617 turbo swap, T5 5-speed, 4.56 diff, work van

12-20-2011, 08:30 AM
Find Reply
kmaser Offline
Turbocharged G-Wagen
***


Posts: 125
Joined: Jun 2009
Location: Canada
#11
RE: hydroboost?
I removed the factory vacuum booster and installed a universal kit from Hydratech, the difference is amazing and the kit was super easy to install!
12-25-2011, 10:46 AM
Find Reply
JB3 Offline
Superturbo
*****


Posts: 1,795
Joined: Apr 2009
Location: CNY / RI
#12
RE: hydroboost?
(12-25-2011, 10:46 AM)kmaser Wrote: I removed the factory vacuum booster and installed a universal kit from Hydratech, the difference is amazing and the kit was super easy to install!

it looks like a nice product. Did you adapt the MB master cylinder, or did you go with the optional included vette master? Seems to be a pretty decent solution actually.

how did it come on the back side, any issues attaching it to the brake pedal?

also, any pics!? Big Grin
1974 240D 617 turbo swap, W201 5-speed, in the works project
1983 240D 616 stock, DD
1989 Chevy Astro, 617 turbo swap, T5 5-speed, 4.56 diff, work van

12-26-2011, 10:51 AM
Find Reply
kmaser Offline
Turbocharged G-Wagen
***


Posts: 125
Joined: Jun 2009
Location: Canada
#13
RE: hydroboost?

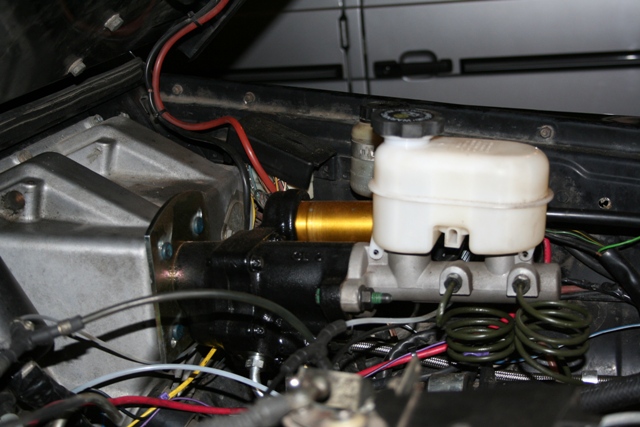

I measured the bore on the MB master cylinder and used a GM cylinder with the same bore and similar setup. On the backside it came with a yoke that hooked right up, only things I had to do was re-drill the adapter plate to match my firewall and made adapter brake lines with metric on one end and standard on the other. They supplied the correct flare nuts, I bent new lines, flared, installed and bled the brakes and steering system. The lines on the MB pump are standard hydraulic fitting but on the steering box it was not so I had to cut the end off and weld on a JIC fitting which was $20.00 at the local hydraulic shop.


Attached Files
.jpg   hydroboost.jpg (Size: 135.67 KB / Downloads: 681)
12-29-2011, 08:54 PM
Find Reply
Freefuel Offline
Naturally-aspirated
*


Posts: 9
Joined: Sep 2011
Location: East Coast, PA
#14
RE: hydroboost?
Very cool! here is a link to a guy that does this for Jeeps and such. http://www.vancopbs.com/category_s/66.htm


(12-29-2011, 08:54 PM)kmaser Wrote: I measured the bore on the MB master cylinder and used a GM cylinder with the same bore and similar setup. On the backside it came with a yoke that hooked right up, only things I had to do was re-drill the adapter plate to match my firewall and made adapter brake lines with metric on one end and standard on the other. They supplied the correct flare nuts, I bent new lines, flared, installed and bled the brakes and steering system. The lines on the MB pump are standard hydraulic fitting but on the steering box it was not so I had to cut the end off and weld on a JIC fitting which was $20.00 at the local hydraulic shop.
07-01-2012, 09:18 AM
Find Reply
sassparilla_kid Offline
diesel > all other fuels
*****


Posts: 1,618
Joined: Oct 2011
Location: Fresno, California
#15
RE: hydroboost?
If I understand Captain America's photo correctly, the hydroboost assist is essentially T-ed into the line going to the power steering gearbox? I'm thinking about doing this after my trans swap so I csn eliminate all vacuum crap completely
-1982 300D Turbo, 280k miles, ALDA apparently maxxed, fram 8038, 12 lbs boost, non-egr manifolds, W/M injection, 4 brake light mod, Gen II w126 front rotors/calipers, 4-speed swap
In the works: A/W IC, adjust pump, turbo rebuild (w/60 trim comp wheel)
-1980 300SD, 110k, project car. Goal is to get it lookin' like it did on the showroom floor (body and interior wise, not necessarily under the hood )
-1974 240D, FRESH PAINT!!!!!!
01-17-2013, 11:38 AM
Find Reply
raysorenson Offline
Superturbo
*****


Posts: 1,158
Joined: Sep 2011
Location: Birmingham AL
#16
RE: hydroboost?
The ones I've seen have a high pressure line from the pump to the booster, then from the booster to the steering gear.

'99-04 mustangs have hydroboost.
01-19-2013, 04:24 PM
Find Reply
lpumb3 Offline
617 300sd
***


Posts: 141
Joined: Sep 2012
Location: 01505 ma
#17
RE: hydroboost?
(12-29-2011, 08:54 PM)kmaser Wrote: I measured the bore on the MB master cylinder and used a GM cylinder with the same bore and similar setup. On the backside it came with a yoke that hooked right up, only things I had to do was re-drill the adapter plate to match my firewall and made adapter brake lines with metric on one end and standard on the other. They supplied the correct flare nuts, I bent new lines, flared, installed and bled the brakes and steering system. The lines on the MB pump are standard hydraulic fitting but on the steering box it was not so I had to cut the end off and weld on a JIC fitting which was $20.00 at the local hydraulic shop.
very cool , i plan to do this as well, but a quick qauestion

i lost you at the lines on the mb pump ? th power steering pump ? did the kit come with a t fitting to pull high pressure to the booster ?
and you mentioned welding to the box , im assuming the return line fitting ?
02-16-2013, 10:34 AM
Find Reply
Edian727 Offline
Dreams of 8mm 617
***


Posts: 127
Joined: Jul 2014
Location: Spokane, WA
#18
RE: hydroboost?
I put a hydroboost on my 85 ford with a diesel. much better. It runs from PS pump to brakes, then brakes have a return and a hiogh pressure out you run to your steering box. have to have 2 return in power steering box. i drilled another return in the stock ford pump and it died so i mounted a chevy pump that had hydroboost factory.
08-28-2014, 12:47 AM
Find Reply
swampmonkey Offline
hx40 super
****


Posts: 280
Joined: Mar 2013
Location: Gothenburg - Sweden
#19
RE: hydroboost?
the v12 adaption in the w123 made me remove the vacumm brakebooster to be able to fit the "downpipe"
how big is these hydrobosters, and how much of a cost is it?
this might be a realy good solution for me!
---------------------------------
daily driver
w115 240d 72hp 3.07 rearend
w123 om602 turbo 200whp 7.5mm pump fivespeed 3.07 rearend
+ a few more.
mbturbo.com
08-29-2014, 06:53 AM
Website Find Reply
Simpler=Better Offline
PORTED HEAD
*****


Posts: 2,127
Joined: Jul 2008
Location: Baltimore, MD
#20
RE: hydroboost?
They're very thin-look at kmaser's picture. Common on extra large American pickup trucks. Maybe Volvo has a similar part?

Another solution is to remove the booster completely, and use a larger bore master cylinder. Manual brakes were once fairly commong (think 80's pickups and cheap cars). It's all about building up pressure in the lines, you can assist by vacuum, hydraulics, or by displacing a larger amount of fluid.

For what it's worth, I plan to run a large master cylinder with no assist in my little Jeep project. I'll probably use a pickup truck master cylinder.
Newbie-read this: Cheap Tricks
617.952-220k-Getting built up
larsalan Wrote:I guess I need to look at this stupid ass drip shit. What you have to like mess with those elements on the pump? What a fucking hassle. then use some wire to hold the throttle open or some shit?
08-29-2014, 08:13 AM
Find Reply
swampmonkey Offline
hx40 super
****


Posts: 280
Joined: Mar 2013
Location: Gothenburg - Sweden
#21
RE: hydroboost?
(08-29-2014, 08:13 AM)Simpler=Better Wrote: They're very thin-look at kmaser's picture. Common on extra large American pickup trucks. Maybe Volvo has a similar part?

Another solution is to remove the booster completely, and use a larger bore master cylinder. Manual brakes were once fairly commong (think 80's pickups and cheap cars). It's all about building up pressure in the lines, you can assist by vacuum, hydraulics, or by displacing a larger amount of fluid.

For what it's worth, I plan to run a large master cylinder with no assist in my little Jeep project. I'll probably use a pickup truck master cylinder.

yeah, but with a turbocharged v12 im not to fond of not having sufficient brakepower Tongue
hydroboost will probably be the way, could one run that with an electric pump?

maybe change out the AC-compressor for another PS-pump to run the hydrboost on?
---------------------------------
daily driver
w115 240d 72hp 3.07 rearend
w123 om602 turbo 200whp 7.5mm pump fivespeed 3.07 rearend
+ a few more.
mbturbo.com
08-29-2014, 08:33 AM
Website Find Reply
