w126 rear diff options
w126 rear diff options
It's make bad clunking noises while turning
I'm also converting it to a 6spd manual I will have 5 normal range gears and one over drive gears so I would like a taller rear end ratio to use the extra gears and increase my top speed
Currently it has a 2.88 rear end I would like a 2.47-260ish rear end and I would also like to find out what the ASD is or if there are any LSD options and what they came in so I can keep my eye out for one at the pick and pull yards
1987 300SDL 6spd manual om606.962 swap project
1985 300td euro 5spd wagon running
willbhere4u
10-06-2011, 09:49 AM #1The rear diff in my1987 300sdl is going out I think?
It's make bad clunking noises while turning
I'm also converting it to a 6spd manual I will have 5 normal range gears and one over drive gears so I would like a taller rear end ratio to use the extra gears and increase my top speed
Currently it has a 2.88 rear end I would like a 2.47-260ish rear end and I would also like to find out what the ASD is or if there are any LSD options and what they came in so I can keep my eye out for one at the pick and pull yards
1987 300SDL 6spd manual om606.962 swap project
1985 300td euro 5spd wagon running
w126 2nd Generation
Years, Model, Engine, Differential Ratio, Differential Case Size, Ring Gear Size
1989-1991, 300 SE, M103.981 3.0L I6, 3.46, 1 Liter, 185mm
1988-1991, 300 SEL, M103.981 3.0L I6, 3.46, 1 Lite, 185mm
1986-1987, 300 SDL, OM603.961 3.0L I6, 2.88, 1.1 Liter, 185mm
1991, 350 SD, OM603.97 3.5L I6, 2.82, 1.3 Liter, 210mm
1990-1991, 350 SDL, OM603.97 3.5L I6, 2.82, 1.3 Liter, 210mm
1986-1991, 420 SEL, M116.965 4.2L V8, 2.47, 1.3 Liter, 210mm
1986-1991, 560 SEL, M117.968 5.6L V8, 2.47 ASR/2.47 LSD/2.47, 1.3 Liter, 210mm
1986-1991, 560 SEC, M117.968 5.6L V8, 2.47 ASR/2.47 LSD/2.47, 1.3 Liter, 210mm
.
Gota love Mercedes Diesels!
.
DeliveryValve
10-06-2011, 10:41 AM #2
w126 2nd Generation
Years, Model, Engine, Differential Ratio, Differential Case Size, Ring Gear Size
1989-1991, 300 SE, M103.981 3.0L I6, 3.46, 1 Liter, 185mm
1988-1991, 300 SEL, M103.981 3.0L I6, 3.46, 1 Lite, 185mm
1986-1987, 300 SDL, OM603.961 3.0L I6, 2.88, 1.1 Liter, 185mm
1991, 350 SD, OM603.97 3.5L I6, 2.82, 1.3 Liter, 210mm
1990-1991, 350 SDL, OM603.97 3.5L I6, 2.82, 1.3 Liter, 210mm
1986-1991, 420 SEL, M116.965 4.2L V8, 2.47, 1.3 Liter, 210mm
1986-1991, 560 SEL, M117.968 5.6L V8, 2.47 ASR/2.47 LSD/2.47, 1.3 Liter, 210mm
1986-1991, 560 SEC, M117.968 5.6L V8, 2.47 ASR/2.47 LSD/2.47, 1.3 Liter, 210mm
.
Gota love Mercedes Diesels!
.
What has to be changed to swap the 210mm diff in to an older w126? is it as easy as swamping the whole rear sub frame/axles?
1987 300SDL 6spd manual om606.962 swap project
1985 300td euro 5spd wagon running
willbhere4u
10-06-2011, 11:29 AM #3Is the ASR a full time LSD or is it electronically locking? I read somewhere there was some wiring involved is converting this over?
What has to be changed to swap the 210mm diff in to an older w126? is it as easy as swamping the whole rear sub frame/axles?
1987 300SDL 6spd manual om606.962 swap project
1985 300td euro 5spd wagon running
(10-06-2011, 11:29 AM)willbhere4u Is the ASR a full time LSD or is it electronically locking? I read somewhere there was some wiring involved is converting this over?
What has to be changed to swap the 210mm diff in to an older w126? is it as easy as swamping the whole rear sub frame/axles?

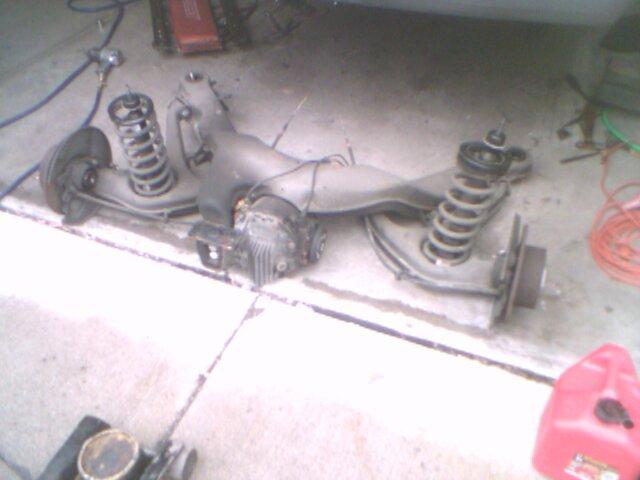

ASR is an OPEN differential. ARS only applies the brakes individually for traction control and applies the Anti-lock-Brake sequence in the ABS-system. See picture of how to identify a ASR diff. It has two wires coming out from the top of the diff case.
I have not done this subframe swap, but I would assume it will bolt on. The only issue would be to install new anchor bolt holes for the relocation of the rear mount which now moves from the center mounting position to a an off center mounting position. See picture above.
BTW - I have a 2nd Gen 2.47 LSD, you can have it for crazy dollars.
.
Gota love Mercedes Diesels!
.
DeliveryValve
10-06-2011, 06:12 PM #4(10-06-2011, 11:29 AM)willbhere4u Is the ASR a full time LSD or is it electronically locking? I read somewhere there was some wiring involved is converting this over?
What has to be changed to swap the 210mm diff in to an older w126? is it as easy as swamping the whole rear sub frame/axles?
ASR is an OPEN differential. ARS only applies the brakes individually for traction control and applies the Anti-lock-Brake sequence in the ABS-system. See picture of how to identify a ASR diff. It has two wires coming out from the top of the diff case.
I have not done this subframe swap, but I would assume it will bolt on. The only issue would be to install new anchor bolt holes for the relocation of the rear mount which now moves from the center mounting position to a an off center mounting position. See picture above.
BTW - I have a 2nd Gen 2.47 LSD, you can have it for crazy dollars.
.
Gota love Mercedes Diesels!
.
