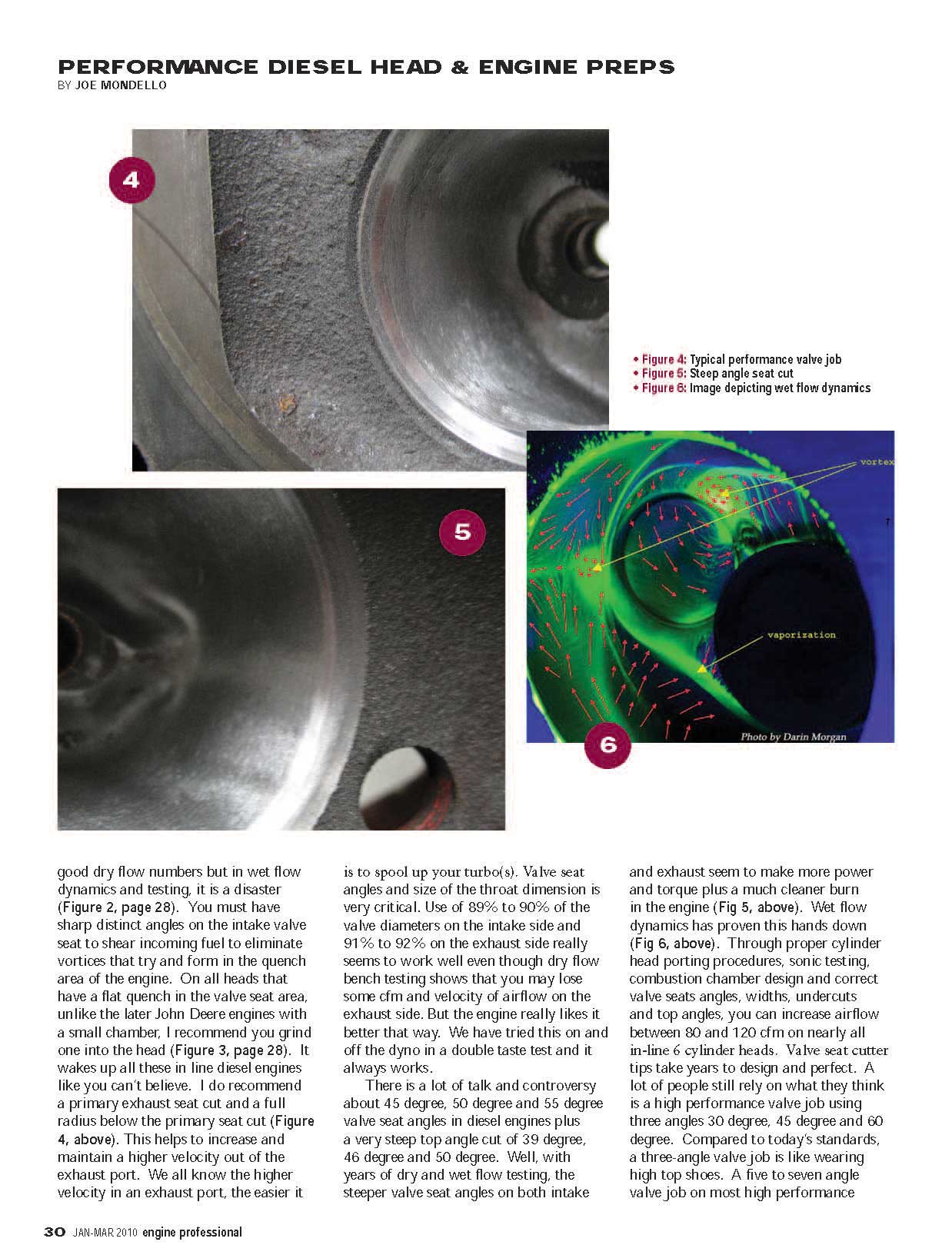

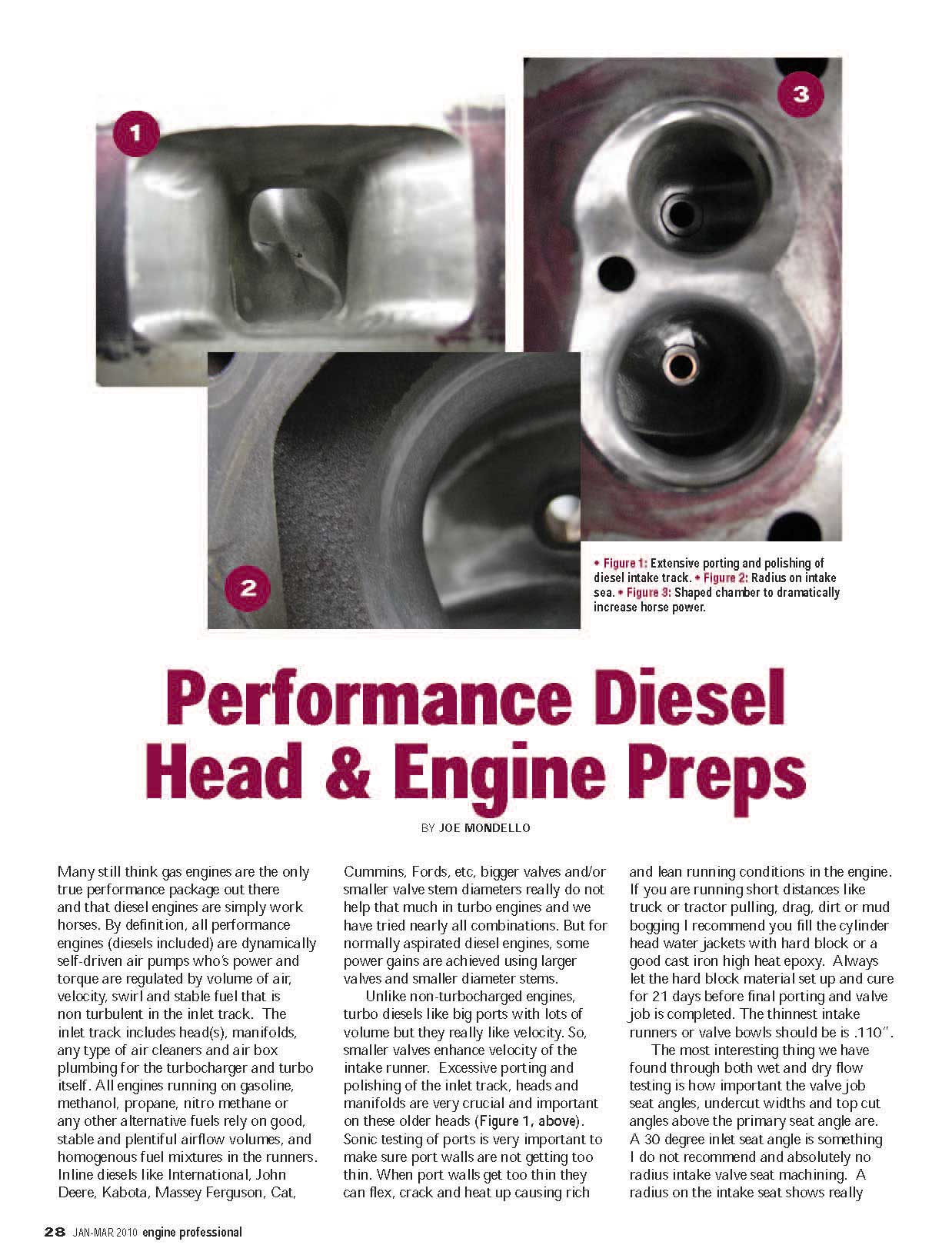

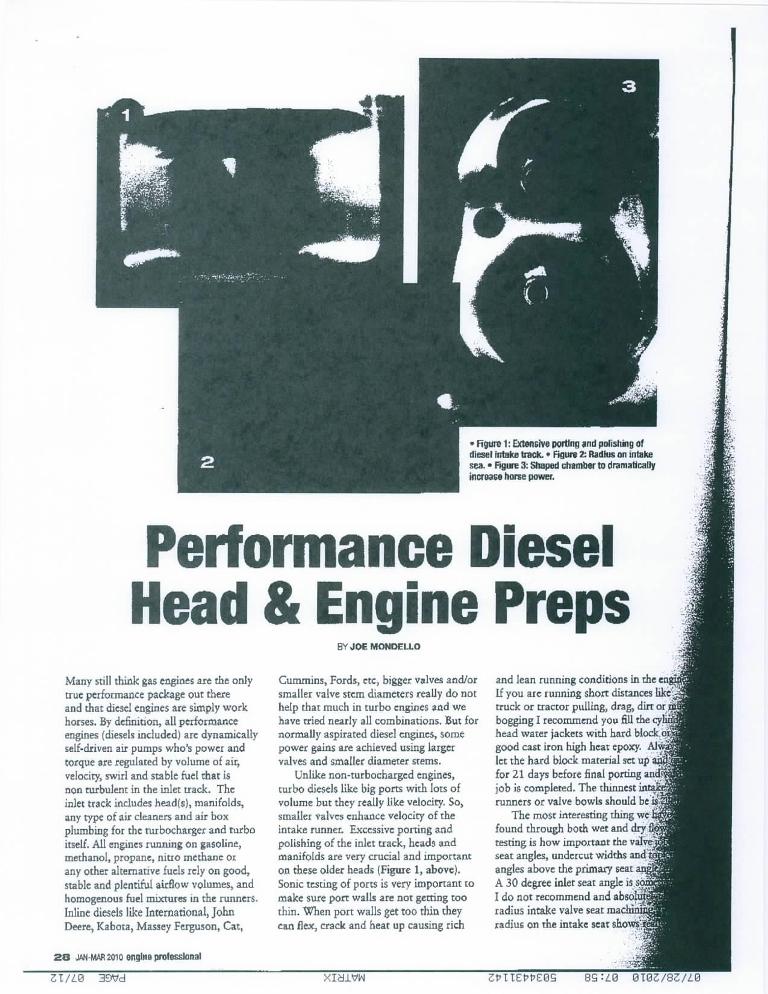

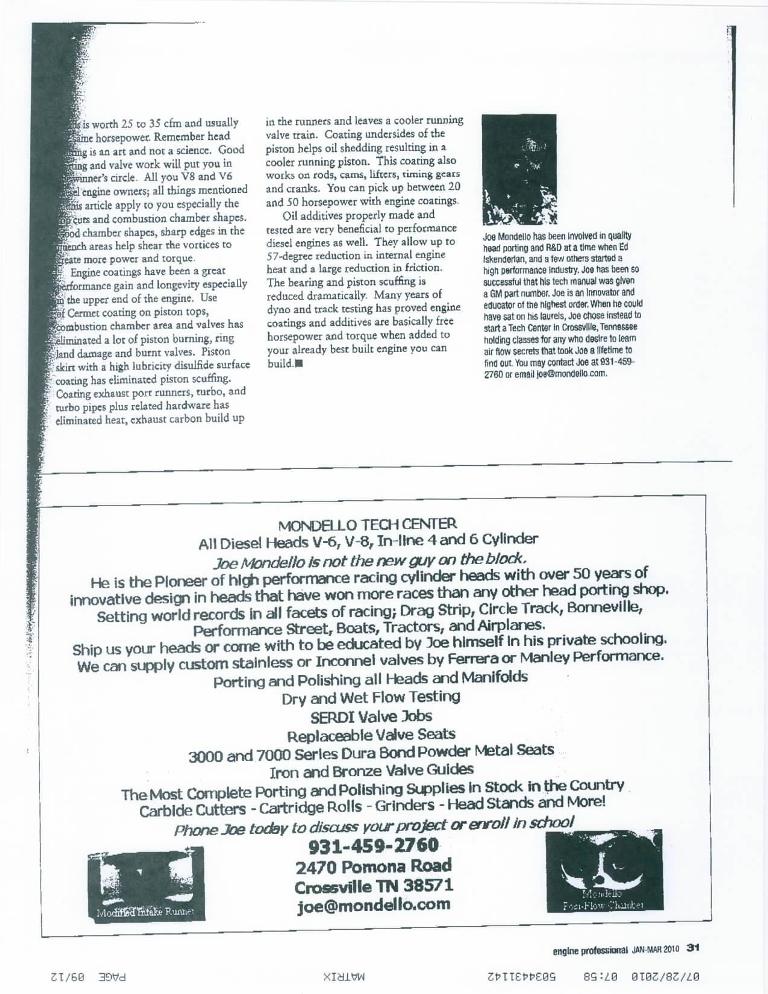

Here is some of my thoughts relating to the article. For some time I’ve been thinking about port modification for more velocity and combustion chamber modification. I was thinking of messing around with it, but of course I don’t have the proper equipment or resources to create or test my theories. I ended up giving my spare cylinder head to Rudolf_Diesel last year for him to mess around with it when he gets bored so I hope he does something with it.
My combustion chamber modification would have been similar to Mondello’s article, though I would have been more thinking in terms of aiding in swirl combustion instead of breaking vortices. And the ports…. Well.. I believe it really needs to be raised quite a bit to get some velocity. But again, I don’t have equipment and resources to test that theory. Valve seat angle modification would be worked on also. I would of thought a standard 3 angle would of done the job, but Joe says otherwise. It would be cool to have a flow bench!

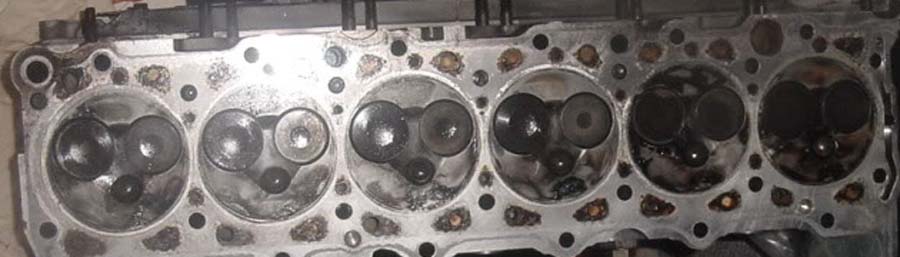

(617 cylinder head pic boosted from Konstan's thread at peachparts.)
The other thing Mondello mentions is about velocity from the exhaust port to spool up the turbo faster.
Biohazard posted a picture of his recently painted stock exhaust manifold that I think is fascinating because it clearly shows hot spots in the 2 in 1 runner as opposed to the single runner. This is from his “Flying Pumpkin” thread.
http://superturbodiesel.com/std/the-flyi...153-2.html
Biohazard’s assessment: “..creating hotspots or high pressure areas like this manifold seems to be doing probably isn't helping anything. I'm thinking its from the different exhaust flow directions inside the manifold banging into each other right at the turbo opening. Probably why the single runner hasn't turned color yet... “
I agree with his take. It does seem those hotspots are areas of restrictions. Maybe exhaust routing should be taken a bit more seriously to ease flow to the turbo? Of course this would require some money or knowhow to do so!.
.
This post was last modified: 07-31-2010, 01:40 AM by DeliveryValve.
Gota love Mercedes Diesels!
.
DeliveryValve
07-30-2010, 11:50 PM #9No problem fellas…
Here is some of my thoughts relating to the article. For some time I’ve been thinking about port modification for more velocity and combustion chamber modification. I was thinking of messing around with it, but of course I don’t have the proper equipment or resources to create or test my theories. I ended up giving my spare cylinder head to Rudolf_Diesel last year for him to mess around with it when he gets bored so I hope he does something with it.
My combustion chamber modification would have been similar to Mondello’s article, though I would have been more thinking in terms of aiding in swirl combustion instead of breaking vortices. And the ports…. Well.. I believe it really needs to be raised quite a bit to get some velocity. But again, I don’t have equipment and resources to test that theory. Valve seat angle modification would be worked on also. I would of thought a standard 3 angle would of done the job, but Joe says otherwise. It would be cool to have a flow bench!
(617 cylinder head pic boosted from Konstan's thread at peachparts.)
The other thing Mondello mentions is about velocity from the exhaust port to spool up the turbo faster.
Biohazard posted a picture of his recently painted stock exhaust manifold that I think is fascinating because it clearly shows hot spots in the 2 in 1 runner as opposed to the single runner. This is from his “Flying Pumpkin” thread.
http://superturbodiesel.com/std/the-flyi...153-2.html
Biohazard’s assessment: “..creating hotspots or high pressure areas like this manifold seems to be doing probably isn't helping anything. I'm thinking its from the different exhaust flow directions inside the manifold banging into each other right at the turbo opening. Probably why the single runner hasn't turned color yet... “
I agree with his take. It does seem those hotspots are areas of restrictions. Maybe exhaust routing should be taken a bit more seriously to ease flow to the turbo? Of course this would require some money or knowhow to do so!.
.
Gota love Mercedes Diesels!
.
08-01-2010, 10:58 PM
#10
I'm also planning on swapping on my ported cylinder head, but I don't want to post up a pic because it's not as sexy as this one!
Pretty sure it's just a standard valve job and port match. Sure would love to put a stock cylinder head on a flow bench, along with the ported one. I have one of each hanging out if someone wants to volunteer a flow bench?
If you have access, it would give the community some solid numbers!
82 300SD aka The Flyin Pumpkin (Gone): 7.5mm super M-pump, T3 60 trim turbo, Coldish air intake, A/W intercooler, propane injection, SW Boost and EGT gauges, Monark 265 nozzles, ported/polished cylinder head.
84 Euro 300D 4 sp: White with black trunk and hood. Blue cloth interior. Manual everything. 300DT front swaybar. C320 17" wheels. Now with the Flyin Pumpkins engine!
Looks like I'm going to have to try to weld up a header when I get back from Bonneville... LOL
I'm also planning on swapping on my ported cylinder head, but I don't want to post up a pic because it's not as sexy as this one! Pretty sure it's just a standard valve job and port match. Sure would love to put a stock cylinder head on a flow bench, along with the ported one. I have one of each hanging out if someone wants to volunteer a flow bench? If you have access, it would give the community some solid numbers!
82 300SD aka The Flyin Pumpkin (Gone): 7.5mm super M-pump, T3 60 trim turbo, Coldish air intake, A/W intercooler, propane injection, SW Boost and EGT gauges, Monark 265 nozzles, ported/polished cylinder head.
84 Euro 300D 4 sp: White with black trunk and hood. Blue cloth interior. Manual everything. 300DT front swaybar. C320 17" wheels. Now with the Flyin Pumpkins engine!
08-02-2010, 12:03 AM
#11

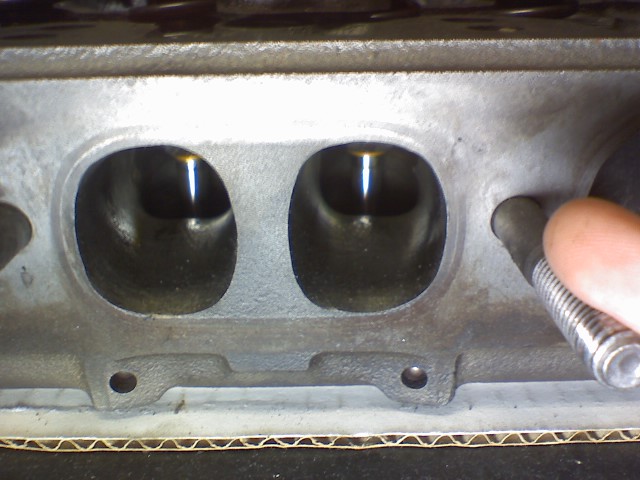

Intake ports:

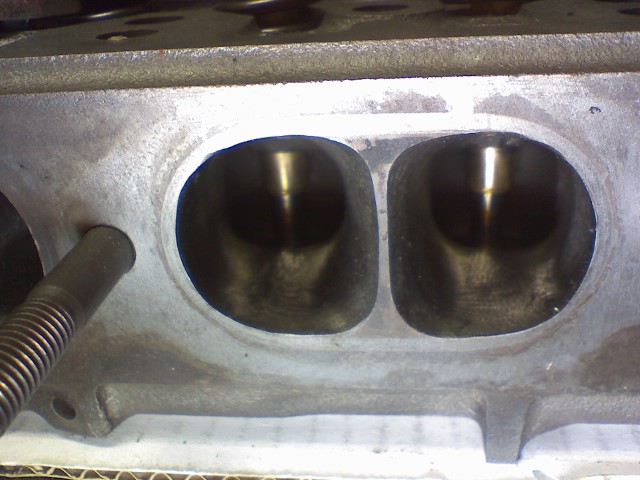

Exhaust ports:
Again, I didn't have them hogged way out. I just wanted better than stock air flow with decent street manners.
82 300SD aka The Flyin Pumpkin (Gone): 7.5mm super M-pump, T3 60 trim turbo, Coldish air intake, A/W intercooler, propane injection, SW Boost and EGT gauges, Monark 265 nozzles, ported/polished cylinder head.
84 Euro 300D 4 sp: White with black trunk and hood. Blue cloth interior. Manual everything. 300DT front swaybar. C320 17" wheels. Now with the Flyin Pumpkins engine!
All I have at the moment are pics of the ports. You can still see the marks from the gasket around both the intake and exhaust ports. The guy didn't go full race crazy on the porting, just opened it up a bit and smoothed it out. It may be hard to see, but the surfaces of all the runners isn't super smooth. It's shiney, but it has a bit of the golf ball texture to it that you need for full air flow capability.
Intake ports:
Exhaust ports:
Again, I didn't have them hogged way out. I just wanted better than stock air flow with decent street manners.
82 300SD aka The Flyin Pumpkin (Gone): 7.5mm super M-pump, T3 60 trim turbo, Coldish air intake, A/W intercooler, propane injection, SW Boost and EGT gauges, Monark 265 nozzles, ported/polished cylinder head.
84 Euro 300D 4 sp: White with black trunk and hood. Blue cloth interior. Manual everything. 300DT front swaybar. C320 17" wheels. Now with the Flyin Pumpkins engine!
08-02-2010, 12:31 AM
#12
1982 300D Turbo ... 3,6xxlbs, No fan, No AC, Hood Stack, No ALDA, No rear bumper and stuffed front, A/W Intercooled, Injectors by Greezer and HUGE Pre-Chambers with help from OM616 & Simpler=Better, Fuel Cranked up, 60 Trim Compressor wheel, EGT, EMP, Boost 50" Rigid Radius bar on roof Aux tank for a total of 48 Gal Of Diesel! Odyssey PC-1750 Battery in trunk, 27"x8.5"/R14 Maxxis BigHorn Mud Terrains, In June '14 issue of Off Road Mag
AX15 Jeep Trans swap in progress....
Captain America
08-02-2010, 12:31 AM #12Its cool that like the article says, hog out the ports a keep the valve size stock for the velocity.
1982 300D Turbo ... 3,6xxlbs, No fan, No AC, Hood Stack, No ALDA, No rear bumper and stuffed front, A/W Intercooled, Injectors by Greezer and HUGE Pre-Chambers with help from OM616 & Simpler=Better, Fuel Cranked up, 60 Trim Compressor wheel, EGT, EMP, Boost 50" Rigid Radius bar on roof Aux tank for a total of 48 Gal Of Diesel! Odyssey PC-1750 Battery in trunk, 27"x8.5"/R14 Maxxis BigHorn Mud Terrains, In June '14 issue of Off Road Mag
AX15 Jeep Trans swap in progress....
08-02-2010, 02:44 PM
#15
(08-01-2010, 10:58 PM)Biohazard Looks like I'm going to have to try to weld up a header when I get back from Bonneville... LOL
I'm also planning on swapping on my ported cylinder head, but I don't want to post up a pic because it's not as sexy as this one!
Anyone with a (Superflow) flow bench?
I have a suggestion in OR if needed....he has been porting some of the finest watercooled VW (gas/petrol) heads for 30yrs. I could ask him if he'd be interesting with providing flow data.
This post was last modified: 08-02-2010, 02:45 PM by mk216v.
1980 W460 300GD LWB 4spd manual, AKA "Radio Flyer"
(08-01-2010, 10:58 PM)Biohazard Looks like I'm going to have to try to weld up a header when I get back from Bonneville... LOL
I'm also planning on swapping on my ported cylinder head, but I don't want to post up a pic because it's not as sexy as this one!
Anyone with a (Superflow) flow bench?
I have a suggestion in OR if needed....he has been porting some of the finest watercooled VW (gas/petrol) heads for 30yrs. I could ask him if he'd be interesting with providing flow data.
1980 W460 300GD LWB 4spd manual, AKA "Radio Flyer"
08-02-2010, 07:18 PM
#16
(08-02-2010, 02:44 PM)mk216v(08-01-2010, 10:58 PM)Biohazard Looks like I'm going to have to try to weld up a header when I get back from Bonneville... LOL
I'm also planning on swapping on my ported cylinder head, but I don't want to post up a pic because it's not as sexy as this one!
Anyone with a (Superflow) flow bench?
I have a suggestion in OR if needed....he has been porting some of the finest watercooled VW (gas/petrol) heads for 30yrs. I could ask him if he'd be interesting with providing flow data.
If they're willing to volunteer time, I'll cover the shipping both ways. Or, Drive the heads down myself if its cheaper. I'm just between Tacoma and Seattle.
82 300SD aka The Flyin Pumpkin (Gone): 7.5mm super M-pump, T3 60 trim turbo, Coldish air intake, A/W intercooler, propane injection, SW Boost and EGT gauges, Monark 265 nozzles, ported/polished cylinder head.
84 Euro 300D 4 sp: White with black trunk and hood. Blue cloth interior. Manual everything. 300DT front swaybar. C320 17" wheels. Now with the Flyin Pumpkins engine!
(08-02-2010, 02:44 PM)mk216v(08-01-2010, 10:58 PM)Biohazard Looks like I'm going to have to try to weld up a header when I get back from Bonneville... LOL
I'm also planning on swapping on my ported cylinder head, but I don't want to post up a pic because it's not as sexy as this one!
Anyone with a (Superflow) flow bench?
I have a suggestion in OR if needed....he has been porting some of the finest watercooled VW (gas/petrol) heads for 30yrs. I could ask him if he'd be interesting with providing flow data.
If they're willing to volunteer time, I'll cover the shipping both ways. Or, Drive the heads down myself if its cheaper. I'm just between Tacoma and Seattle.
82 300SD aka The Flyin Pumpkin (Gone): 7.5mm super M-pump, T3 60 trim turbo, Coldish air intake, A/W intercooler, propane injection, SW Boost and EGT gauges, Monark 265 nozzles, ported/polished cylinder head.
84 Euro 300D 4 sp: White with black trunk and hood. Blue cloth interior. Manual everything. 300DT front swaybar. C320 17" wheels. Now with the Flyin Pumpkins engine!
08-03-2010, 06:42 PM
#17
(08-02-2010, 11:38 AM)ConnClark Just to note that inducing swirl and turbulence in an IDI engine isn't going to get you anything. That is the prechamber's job.
Hey Conn, can you explain a bit more as to why swirl is not going to increase efficiency in an IDI?
I understand the prechamber's job in terms of combustion. But I would imagine having intake air swirl it's way in would increase efficiency in combustion in combination with the prechamber and the spent combustion swirling it's way out would increase scavenging of the rest of the gasses.
Even in later pre-chamber head renditions, Mercedes decided to have somewhat a shaped chamber..

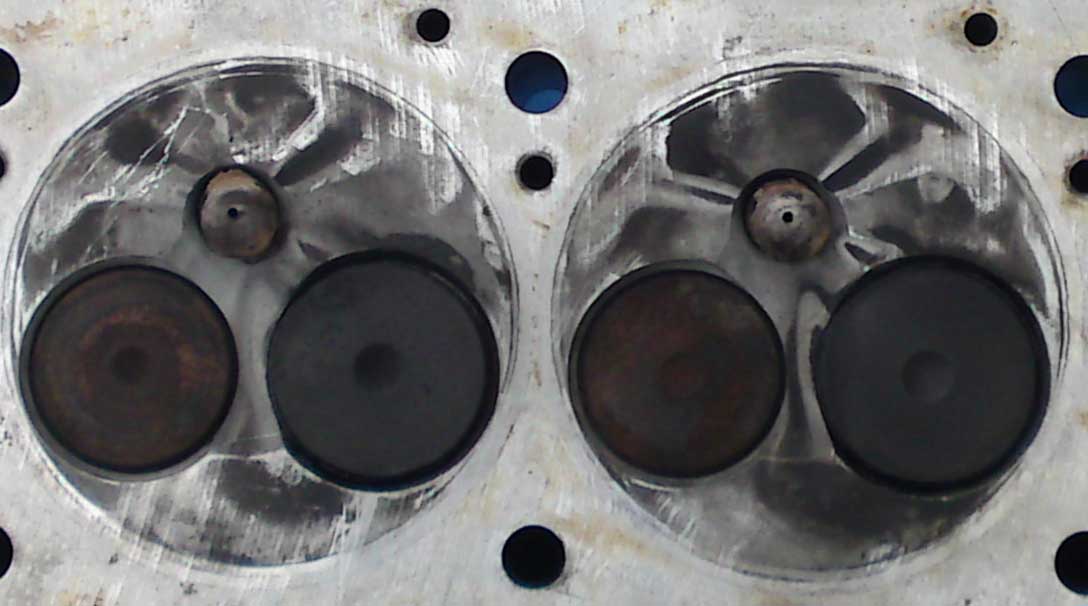

603 Head
