W116 6.9 rear diff install into W126
W116 6.9 rear diff install into W126
I have mocked it up in my W123 240d project car, it seems to fit there too. I'll give all the details for the W126 300SD install though.
Got started on the swap last night. Car on jack stands and stock rear diff removed. Here are some pics to compare the two diffs.

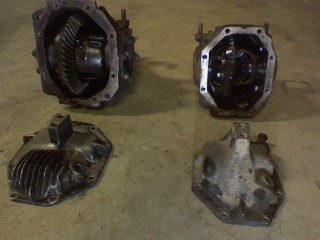

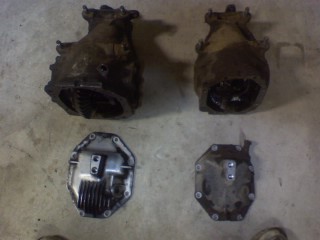

Back view, 6.9 diff on left. The rear opening of the housing is much bigger on the 6.9, also a cooler looking diff cover.

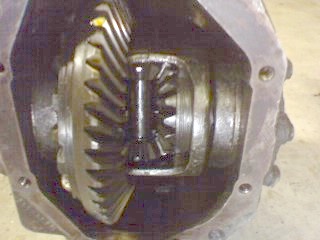

Top view, 6.9 diff on left.

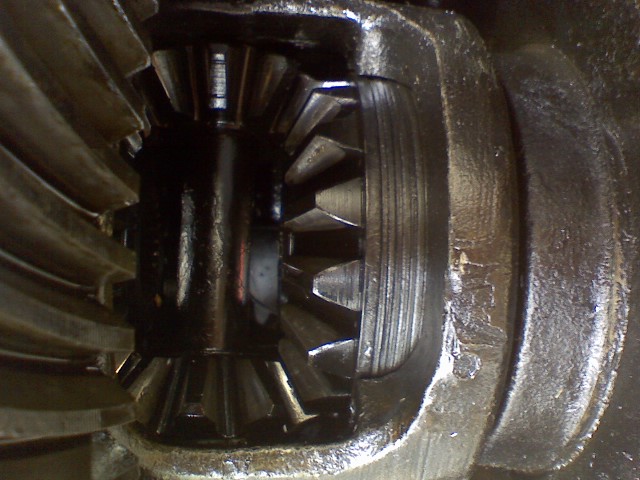

Inside of the 6.9 diff.

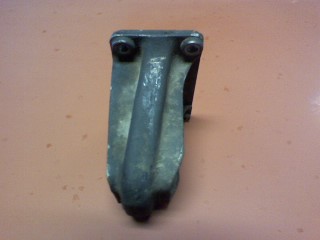

Rear diff mount. In normal mounting, the 'taper' side is the diff side and the 'straight' side is the bolt side. The 6.9 rear diff is a bit longer at the back than the stock diff. At least in the 240D, I had to flip the mount around so the 'taper' side was the bolt side. The mounting surface is offset by just enough to make it fit. I don't know if those crazy Germans meant to do that, but it works. I'll let you know if I have to flip it around in the 300SD also.
So now I'm in the process of swapping the input flange from 3.07 stock diff over to the 2.65 6.9 diff. The bolt circle of the rubber damper is significantly larger on the 6.9. I've already put new output seals in the diff, just working on the input flange now. Then, it's ready to get stuffed into the Pumpkin. Wish me luck!
82 300SD aka The Flyin Pumpkin (Gone): 7.5mm super M-pump, T3 60 trim turbo, Coldish air intake, A/W intercooler, propane injection, SW Boost and EGT gauges, Monark 265 nozzles, ported/polished cylinder head.
84 Euro 300D 4 sp: White with black trunk and hood. Blue cloth interior. Manual everything. 300DT front swaybar. C320 17" wheels. Now with the Flyin Pumpkins engine!
So I've been sitting on a rear diff from a W116 450 SEL 6.9 for a while now. It's a 2.65:1 Limited Slip unit. Well, my Bonneville road trip is coming up and I'd like to be able to keep up with traffic with out spinning the hell out of my engine. So, I'm swapping the sucka into the Flyin Pumpkin! My goal is 75mph cruising speed with decent fuel economy.
I have mocked it up in my W123 240d project car, it seems to fit there too. I'll give all the details for the W126 300SD install though.
Got started on the swap last night. Car on jack stands and stock rear diff removed. Here are some pics to compare the two diffs.
Back view, 6.9 diff on left. The rear opening of the housing is much bigger on the 6.9, also a cooler looking diff cover.
Top view, 6.9 diff on left.
Inside of the 6.9 diff.
Rear diff mount. In normal mounting, the 'taper' side is the diff side and the 'straight' side is the bolt side. The 6.9 rear diff is a bit longer at the back than the stock diff. At least in the 240D, I had to flip the mount around so the 'taper' side was the bolt side. The mounting surface is offset by just enough to make it fit. I don't know if those crazy Germans meant to do that, but it works. I'll let you know if I have to flip it around in the 300SD also.
So now I'm in the process of swapping the input flange from 3.07 stock diff over to the 2.65 6.9 diff. The bolt circle of the rubber damper is significantly larger on the 6.9. I've already put new output seals in the diff, just working on the input flange now. Then, it's ready to get stuffed into the Pumpkin. Wish me luck!
82 300SD aka The Flyin Pumpkin (Gone): 7.5mm super M-pump, T3 60 trim turbo, Coldish air intake, A/W intercooler, propane injection, SW Boost and EGT gauges, Monark 265 nozzles, ported/polished cylinder head.
84 Euro 300D 4 sp: White with black trunk and hood. Blue cloth interior. Manual everything. 300DT front swaybar. C320 17" wheels. Now with the Flyin Pumpkins engine!
(07-18-2010, 04:11 PM)ForcedInduction Thats an open diff.
Picture is kind of faint, but I see clutches.
.
Gota love Mercedes Diesels!
.
DeliveryValve
07-18-2010, 04:42 PM #3(07-18-2010, 04:11 PM)ForcedInduction Thats an open diff.
Picture is kind of faint, but I see clutches.
.
Gota love Mercedes Diesels!
.

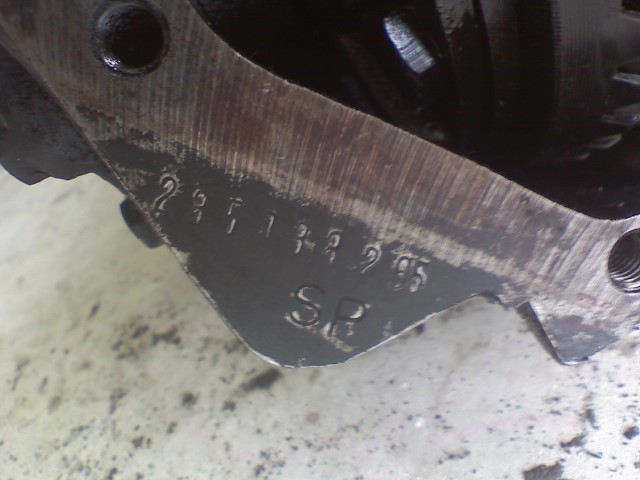

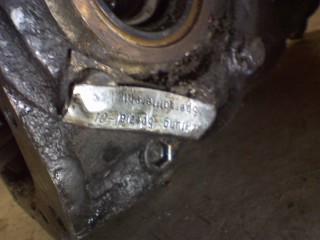

Sorry for the crappy cell phone pics, the regular camera is MIA. Here are the case stamp and special oil tag also.
The clutches are easy to miss if you don't take a magnifing glass to your screen and try to decipher the pixels.

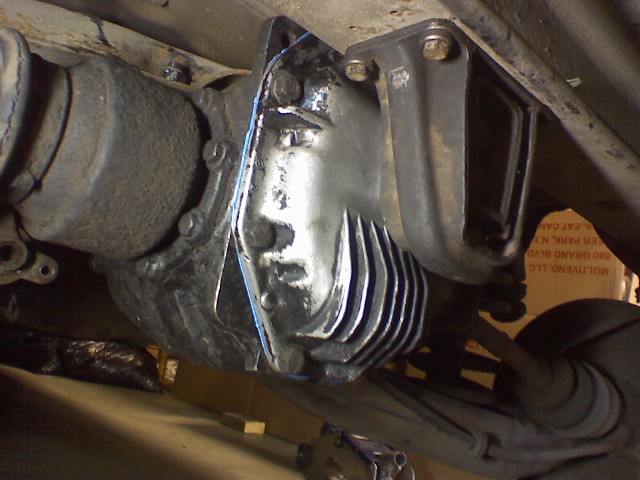

My brother just helped me get it mounted to the subframe. More Super Duper Hi Definition Cell Phone pics to come!
82 300SD aka The Flyin Pumpkin (Gone): 7.5mm super M-pump, T3 60 trim turbo, Coldish air intake, A/W intercooler, propane injection, SW Boost and EGT gauges, Monark 265 nozzles, ported/polished cylinder head.
84 Euro 300D 4 sp: White with black trunk and hood. Blue cloth interior. Manual everything. 300DT front swaybar. C320 17" wheels. Now with the Flyin Pumpkins engine!

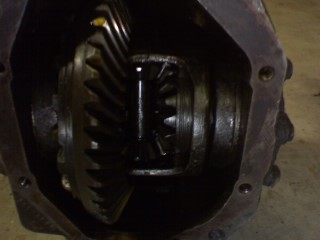

Sorry ForcedInduction, but it's a limited slip. Closer view of the clutches.
